The MV series from Caddock are a low resistance power film resistor with a resistance range from 0.1Ω to 50Ω and a maximum operating temperature of +275°C. These resistors have a maximum power rating of up to 10W (MV311 model) and tolerance of ±1.0% (±5.0% and ±10% are also available). Caddock MV low resistance power film resistors combine Caddock's exclusive non-inductive design with many high performance capabilities of Micronox® resistance films to achieve these special advantages. These resistance films have demonstrated outstanding stability when exposed to a high ambient temperature, thermal shock and high power densities.
  • Low resistance high temperature power axial leaded through-hole resistor
  • Full power ratings without derating for non-inductive Performance.
  • Resistance values available between 0.1Ω and 50Ω
  • TCR ±(200 ppm + 0.00002Ω)/°C (5Ω and above, between -15°C and +105°C), ±50 ppm/°C (5Ω and above, between -15°C and +105°C)
  • Tolerance of ±1.0% (±5% and ±10%are also available)
  • Maximum power rating of up to 10W (MV311 model)
  • Maximum operating temperature +275°C
  • Five sizes and power ratings
  • Non inductive design

This exclusive non-Inductive design provides significant performance improvements in high speed or inductance sensitive electronic circuits, including:

  • High performance power amplifiers
  • High-speed data transmission systems
  • High frequency videoamplifiers
  • Current switching circuits
  • Current sensing circuits

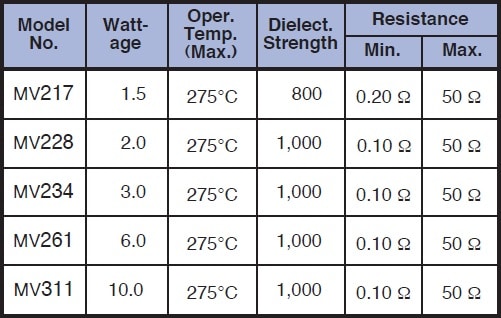

The below table gives the specifications available for the complete MV resistor series:

Caddock MV series Specifications
Specifications
Additional Features
  • Low resistance high temperature power axial leaded through-hole resistor
  • Maximum operating temperature up to +275°C
  • Utilises Caddock's Micronox® resistance film
  • Five sizes and power ratings
  • Utilises Caddock's non-inductive design
Maximum Power Rating
  • Up to 10W (MV311 model)
Maximum Resistance
  • 50Ω
Minimum Resistance
  • 0.1Ω (Model dependent)
TCR
  • ±(200 ppm + 0.00002Ω)/°C (5Ω and above, between -15°C and +105°C)
  • ±50 ppm/°C (5Ω and above, between -15°C and +105°C)
Tolerance
  • ±1.0% (±5.0% and ±10.0% are also available)

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
