The TF050 series from Caddock are low TCR ultra-precision film resistors, with a resistance range from 10kΩ to 10MΩ. These resistors have an tolerance range from ±0.25% to ±1.0%. The TCR values available are ±5 ppm/°C (between -15°C and +105°C), ±10 ppm/°C (between -15°C and +105°C) and ±15 ppm/°C (between -15°C and +105°C). The Caddock TF050 series are available with either radial or axial tinned copper leads, long term stability and constructed using the Tetrinox® resistance technology.
  • Ultra precision film through-hole resistors
  • Radial or axial leaded variants available
  • Resistance values available between 10kΩ and 10MΩ
  • TCR of ±5 ppm/°C (between -15°C and +105°C), ±10 ppm/°C (between -15°C and +105°C) and ±15 ppm/°C (between -15°C and +105°C)
  • Tolerance of ±0.01%, ±0.025%, ±0.05%, ±0.1% and ±1.0%
  • Maximum power rating of 0.75W (at +70°C)
  • Long term stability to 0.01% per 1,000 hours
  • Storage temperature range from -55°C up to +105°C
  • Maximum working voltage of 1,400V
  • Utilises Caddock's Tetrinox® resistance technology

Additional cost savings can be realized when your high volume ultra-precision Caddock TF050 resistor is optimized for:

  • Lightning transient capability
  • Voltage rating
  • Power rating
  • Mechanical configuration
  • Ratio matched sets

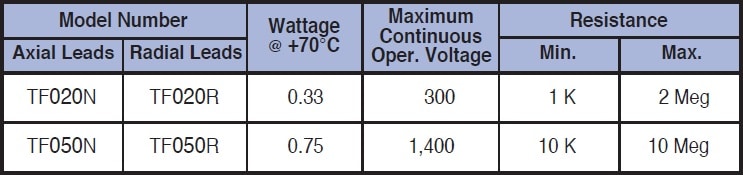

The below table gives the specifications available for the TF050 resistor series:

Caddock TF050 series Specifications
Specifications
Additional Features
  • Ultra-precision film through-hole resistor
  • Radial or axial leaded variants available
  • Maximum working voltage of 1.4kV
  • Constructed with Caddock's Tetrinox® resistance films
  • Long term stability to 0.01% per 1,000 hours
  • Storage temperature range from -55°C up to +105°C
Maximum Power Rating
  • 0.75W (at +70°C)
Maximum Resistance
  • 10MΩ
Minimum Resistance
  • 10kΩ
TCR
  • ±5 ppm/°C (between -15°C and +105°C)
  • ±10 ppm/°C (between -15°C and +105°C)
  • ±15 ppm/°C (between -15°C and +105°C)
Tolerance
  • ±0.01%
  • ±0.025%
  • ±0.05%
  • ±0.1%
  • ±1.0%

RoHS Compliance

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
