The TK229 series, low TCR precision radial-lead film resistors from Caddock have a resistance range between 1KΩ and 500KΩ the low TCR of ±10 ppm/°C comes as standard between -40°C and +125°C (±5 ppm/°C is avaiailable on special order) and with a tolerance of ±0.1% as standard (with options for ±1.0% and ±0.05% on special order). The TK229 series uses caddock's Tetrinox® resistance system to solve the reliability problems related to other low TC precision resistor technologies, the robust construction provides reliable operation even in harsh temperature cycling and/or power cycling environments.
  • Precision radial lead film through-hole resistor
  • Resistance values available between 1KΩ and 500KΩ
  • TCR of ±10 ppm/°C as standard between -40°C and +125°C (±5 ppm/°C is also available on special order)
  • Tolerance of ±0.1% as standard (with options for ±1.0% and ±0.05% on special order)
  • Operating temperature -40°C to &plus:150°C
  • Long-term absolute stability typically better than ±0.05% per 2,000 hours
  • Caddock's non-inductive performance
  • Maximum working voltage of 200V at +85°C
  • Utilises Caddock's Tetrinox® resistance technology
  • Compact rectangular package with standard lead spacing

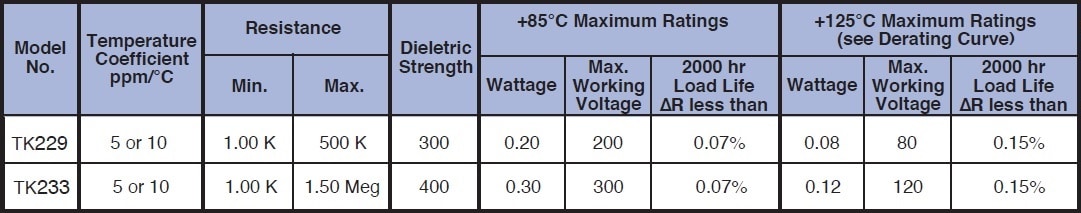

The below table gives the specifications available for the TK resistor series including the TK229 model:

Caddock TK229 series Specifications
Specifications
Additional Features
  • Precision radial leaded film through-hole resistor
  • Caddock's non-inductive performance
  • Maximum working voltage of 200V
  • Compact rectangular package with standard lead spacing
  • Constructed with Caddock's Tetrinox® resistance films
  • Long-term absolute stability typically better than ±0.05% per 2,000 hours
  • Operating temperature range from -40°C up to +150°C
Maximum Power Rating
  • 0.2W (0.1W per resistor element)
Maximum Resistance
  • 500kΩ
Minimum Resistance
  • 1kΩ
TCR
  • ±10 ppm/°C as standard between -40°C and +125°C (Option of ±5 ppm/°C on special order)
Tolerance
  • ±0.1% as standard (with options for ±1.0% and ±0.05% on special order)

RoHS Compliance

This product is available compliant to the RoHS EU directive 2011/65/EU, but, requires extra care during “Lead(Pb)-Free” wave soldering. The temperature of the resistor terminal adjacent to the resistor body must be maintained below 219°C during soldering.
