Isabellenhütte BVN Series

Isabellenhütte BVN Series

The BVN resistor series from Isabellenhütte offers 4-terminal surface-mount connection technology for current sensing applications in a space saving design. Developed for high current automotive applications with a power rating up to 10W, resistance values available are 0.0004Ω, 0.0005Ω, 0.001Ω, 0.002Ω and 0.003Ω. The BVN series from Isabellenhütte offers excellent long term stability, manufactured from solid metal alloys and are ideal for mounting on DBC or ceramic substrate.

  • 4-terminal surface-mount precision resistor
  • 1216 chip size
  • Continuous current load up to 100A (0.0005Ω)
  • Resistance values of 0.0004Ω, 0.0005Ω, 0.01Ω, 0.002Ω and 0.003Ω
  • TCR value <50 ppm/K (between +20°C and +60°C)
  • Applicable temperature range from -65°C to +170°C
  • Tolerance ±1.0% and ±5.0% tolerance
  • Excellent long term stability
  • Power rating 10W (at +70°C)
  • Maximum solder temperature up to 350°C for 30 sec
  • AEC-Q200 qualified

Typical applications for the BVN series include:

  • Current sensor for power hybrid applications
  • High current applications for the automotive market
  • Frequency converters and power modules

The below table gives an overview of the specifications for the Isabellenhütte BVN series as well as the standard parts available:

Isabellenhütte BVN Specifications

²New value, qualification in process

Isabellenhütte BVN Table 1

Abbreviation type M=Manganin®, V=Noventin® and Zeranin®30
TK=terminal temperature

Specifications
Additional Features
  • 4-terminal surface-mount resistor
  • AEC-Q200 qualified
  • Applicable temperature range of -65°C to +170°C
  • Excellent long term stability
  • Continuous current load up to 100A (0.0005Ω)
  • Maximum solder temperature up to 350°C for 30s
  • Ideally suited for mounting on DBC / IMS substrate
Maximum Power Rating 10W at +70°C
Maximum Resistance 0.003Ω
Minimum Resistance 0.0004Ω
Package/Size 1216
TCR <50 ppm/K (between +20°C and +60°C)
Tolerance
  • ±1.0%
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Isabellenhütte BVN surface-mount 4-terminal precision resistor series datasheet
PDF Document Isabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

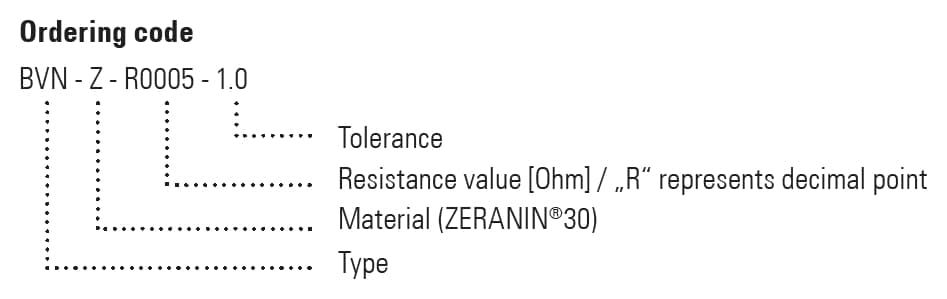

Below is an example of the part number break down for the BVN resistor series:
BVN Part Number Example





The following table highlights the standard resistance values available for the BVN resistor series:
Isabellenhütte BVN Table 1

Abbreviation type M=Manganin®, V=Noventin® and Zeranin®30

TK=terminal temperature

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
