The CS10 industrial pressure transducer series from Core Sensors is designed for demanding applications by offering a robust package and a variety of customisations to suit various requirements. Available with pressure ranges from vacuum to 40,000 PSI and utilising Mems silicon strain gauges mounted to a stainless steel or nickel alloy sensing element. The CS10 from Core offers ASIC electronics with analog voltage or 4-20mA loop powered output signals, with various process connections available in 17-4ph, 316L or nickel alloy including Hastelloy C276 and Inconel 718. This sensor series has an operating temperature range of -40°C to +85°C with an acuracy of ≤ ±0.25% BFSL.

  • Industrial pressure transducer
  • Pressure ranges available from vacuum up to 40,000 PSI
  • One piece design for pressure over 30 PSI and media isolated for pressure 30 PSI and below
  • Operating temperature −40°C to +85°C
  • Accuracy of ≤ ±0.25% BFSL
  • Burst pressure of 5x or 60,000 PSI whichever is less
  • Stability (1 year) of ≤ ±0.25% of FS
  • Pressure cycles of 100 million
  • Electrical output options of 4-20mA,1-5V, 1-6V, 0-5V (3 wire), 0-10V (3 wire), 0.5-4.5V ratiometric or mV/V, millivolt
  • Reverse polarity protection
  • Oxygen cleaning available
  • Optional integral snubber
  • Various process connections available in 17-4ph, 316L or nickel alloy including Hastelloy C276 and Inconel 718
  • Semi custom and custom designs available

Potential applications for the Core CS10 series include:

  • Water pressure monitoring
  • Hydraulic/pneumatic equipment
  • HVAC/R controls
  • Building controls
  • Hydrogen (316L SS only)
  • Low pressure external tank level monitoring

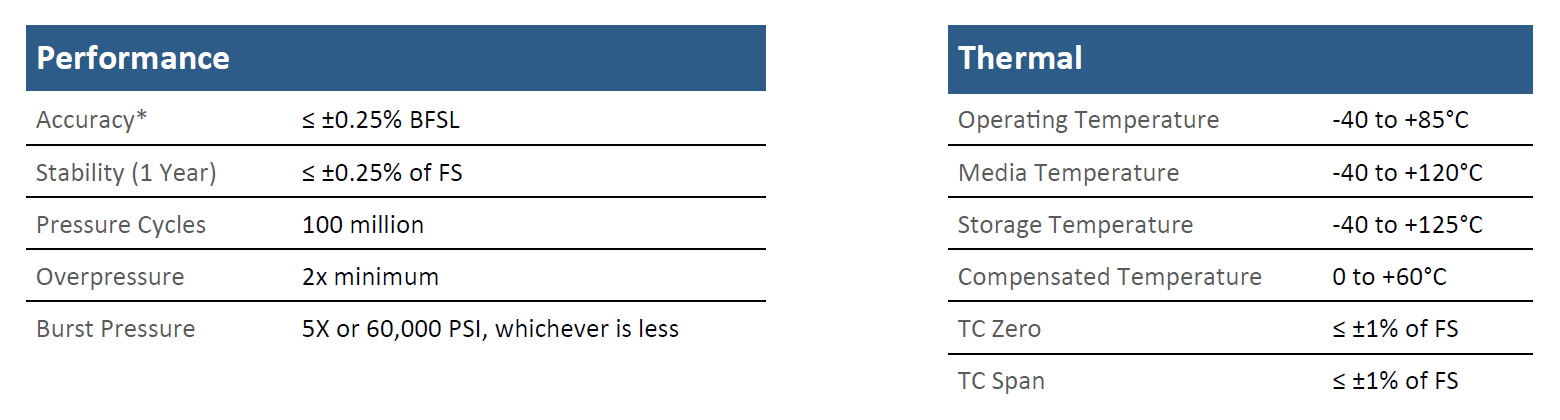

Please see the below performance and thermal tables for the Core CS10 series:

Core CS10 Specifications

* Accuracy includes non-linearity, hysteresis and non-repeatability

Specifications
Accuracy ≤ ±0.25%BFSL
Additional Features
  • Industrial pressure transducer
  • MEMS silicon strain gauges mounted to a stainless steel or nickel alloy sensing element
  • Reverse polarity protection
  • Optional integral snubber
  • Semi custom and custom designs available
Operating Temperature −40°C to +85°C
Output
  • 4-20mA
  • 1 - 5V
  • 1 - 6V
  • 0 - 5V (3 wire)
  • 0 - 10V (3 wire)
  • 0.5 - 4.5V ratimetric
  • mV/V
  • millivolt
Pressure Range Vacuum up to 40,000 PSI
Process Media
  • 17-4 PH
  • 316L
  • Hastelloy C276
  • Inconel 718

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Core Sensors CS10 industrial pressure transducer series datasheet

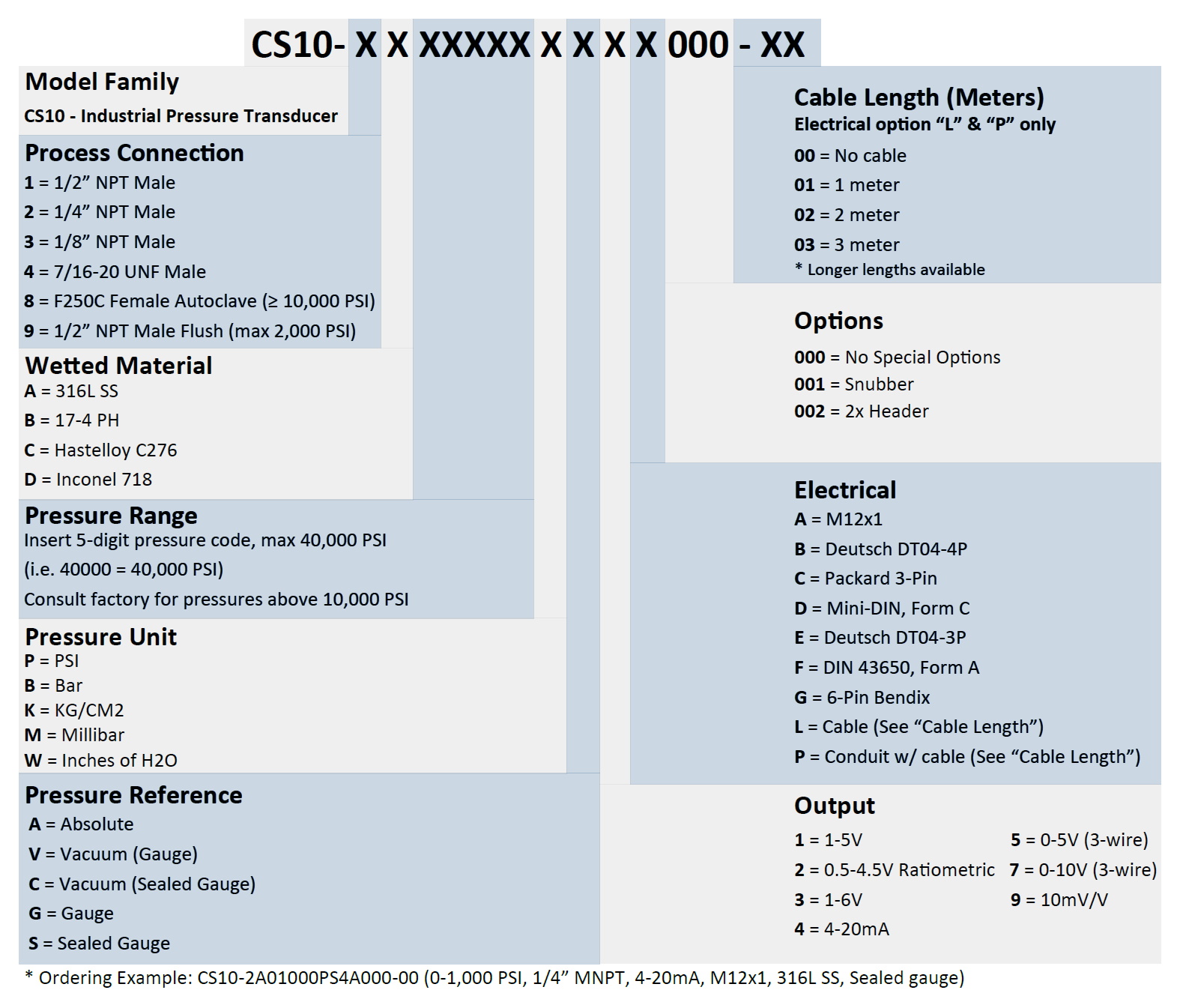

Below is the model number configuration for the CS10 series from Core Sensors

CS10 Part Number Example
