Core Sensors CS12 series

New Core Sensors CS12 series

The CS12 OEM submersible pressure transducer series from Core Sensors is designed for liquid level measurement applications. Available with pressure range from 1 to 100 PSI and constructed using stainless steel (316L and 304) with an extruded EFTE cable jacket allows for installation in a variety of liquids. The CS12 from Core is available with various output signals of 4-20mA, 1-5V and 0.5-4.5V ratiometric, the precision welds and a high strength cable gland prevent liquids from entering the electronics. This sensor series has an operating temperature range of -40°C to +85°C with an accuracy of ≤ ±0.25% BFSL.

  • OEM submersible pressure transducer
  • Pressure ranges available from 1 PSI up to 100 PSI
  • 316L 33 diaphragm / oil filled sensor element
  • Operating temperature −40°C to +85°C
  • Accuracy of ≤ ±0.25% BFSL
  • Burst pressure of 5x or 1,250 PSI whichever is less
  • Stability (1 year) of ≤ ±0.25% of FS
  • Pressure cycles of 50 million
  • Electrical output options of 4-20mA,1-5V or 0.5-4.5V ratiometric
  • Removable nose cone

Potential applications for the Core CS12 series include:

  • Fuel Tank level measurement
  • Ballast tanks
  • Flood monitoring
  • Depth measurement

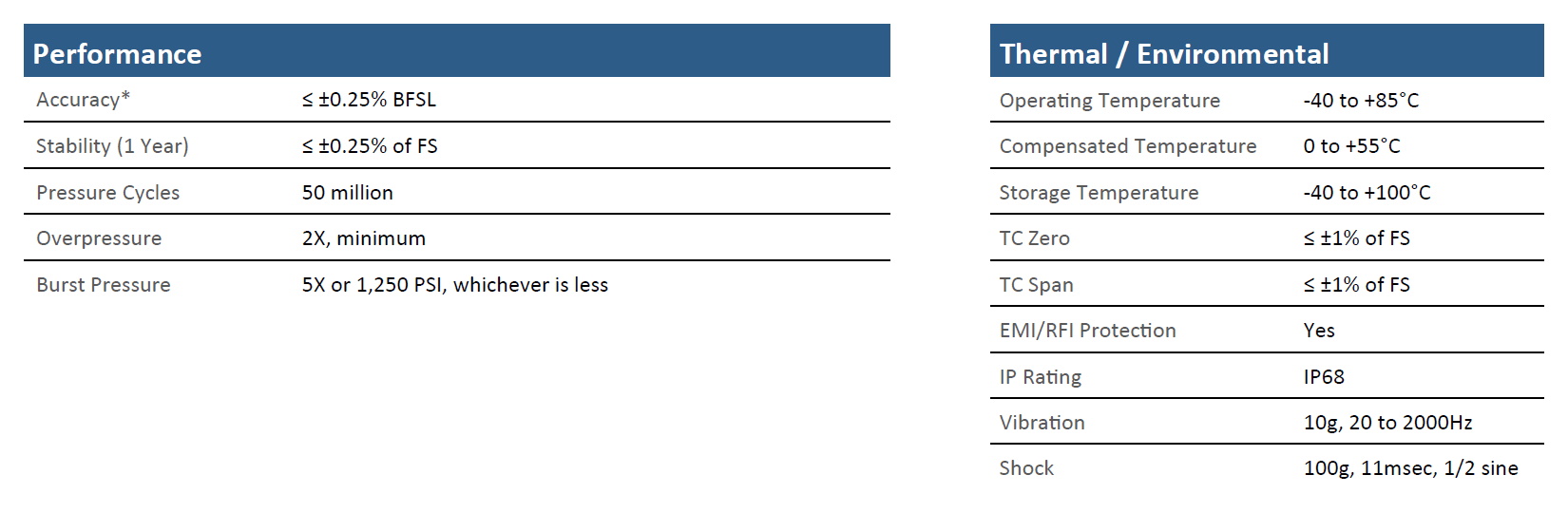

Please see the below performance and thermal tables for the Core CS12 series:

Core CS12 Specifications

* Accuracy includes non-linearity, hysteresis and non-repeatability

Specifications
Accuracy ≤ ±0.25%BFSL
Additional Features
  • OEM submersible pressure transducer
  • Liquid level measurement applications
  • Removable nose cone
Operating Temperature −40°C to +85°C
Output
  • 4-20mA
  • 1 - 5V
  • 0.5 - 4.5V ratimetric
Pressure Range 1 PSI up to 100 PSI
Process Media 316L SS

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Core Sensors CS12 OEM submersible pressure sensor series datasheet

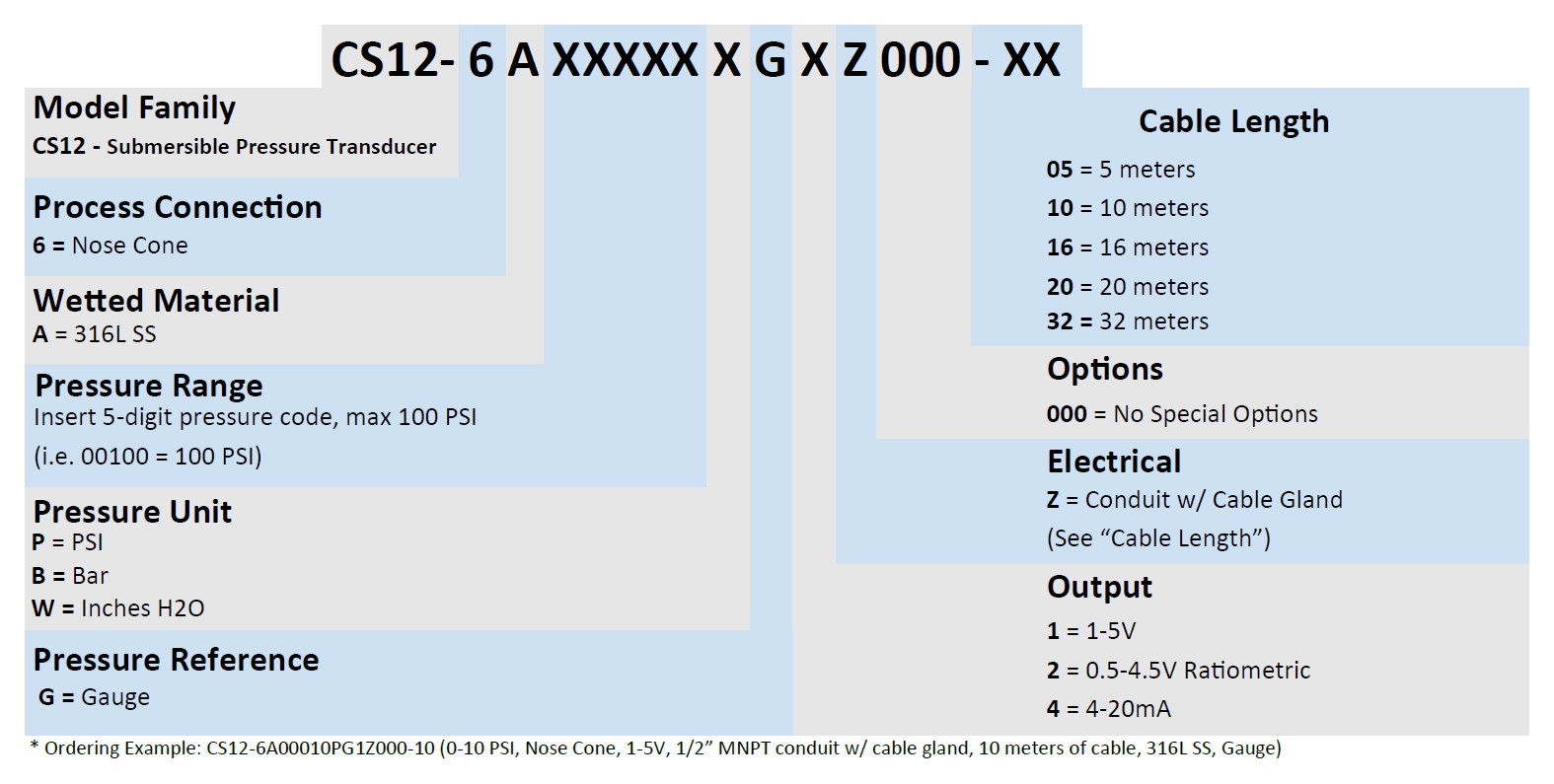

Below is the model number configuration for the CS12 series from Core Sensors

CS12 Part Number Example
