The CS80 intrinsically safe pressure transducer series from Core Sensors is designed for use in intrinsically safe areas, with CSA, ANSI/UL and ABS approvals. Available with pressure ranges from 50 PSI up to 30,000 PSI with an all welded stainless steel construction and customisable configurations. The CS80 from Core offers a choice of electrical outputs 4-20mA, 1.5V, 1.6V, 10mV/V, 0.5 - 4.5V ratiometric and 0.5V - 2.5V non-ratiometric, various wetted materials including 17-4ph, 316L SS, Hastelloy C276 and Inconel 718. This sensor series has an operating temperature range of -40°C to +85°C with an acuracy of ≤ ±0.25% BFSL.

  • Intrinsically safe pressure transducer
  • Pressure ranges available from 50 PSI up to 30,000 PSI
  • Available pressure references gauge, vacuum (gauge), vacuum (sealed gauge) or sealed gauges
  • Operating temperature −40°C to +85°C
  • Accuracy of ≤ ±0.25% BFSL
  • Burst pressure of 5x or 60,000 PSI whichever is less
  • Stability (1 year) of ≤ ±0.25% of FS
  • Pressure cycles of 100 million
  • Electrical output options of 4-20mA, 1-5V, 1-6V, 10mV/V, 0.5-4.5V ratiometric or 0.5-2.5V non-ratiometric
  • Reverse polarity and EMI protection
  • Various wetted materials available in 17-4ph, 316L SS, Hastelloy C276 (special order item) and Inconel 718 (special order item)
  • Semi custom and custom designs available

Approvals for the Core CS80 series include:

  • CSA Class I, division 1, groups C, D T4 (groups A & B available with millivolt output only)
  • Class I, zone 0 AEx ia IIB T4 Ga (IIC available with millivolt output only)
  • ANSI/UL 122701 single seal
  • ABS (American bureau of shipping)

Potential applications for the Core CS80 series include:

  • Natural gas compression
  • Oil exploration
  • Hydrogen compression / storage
  • Control panels
  • Low pressure external tank level monitoring

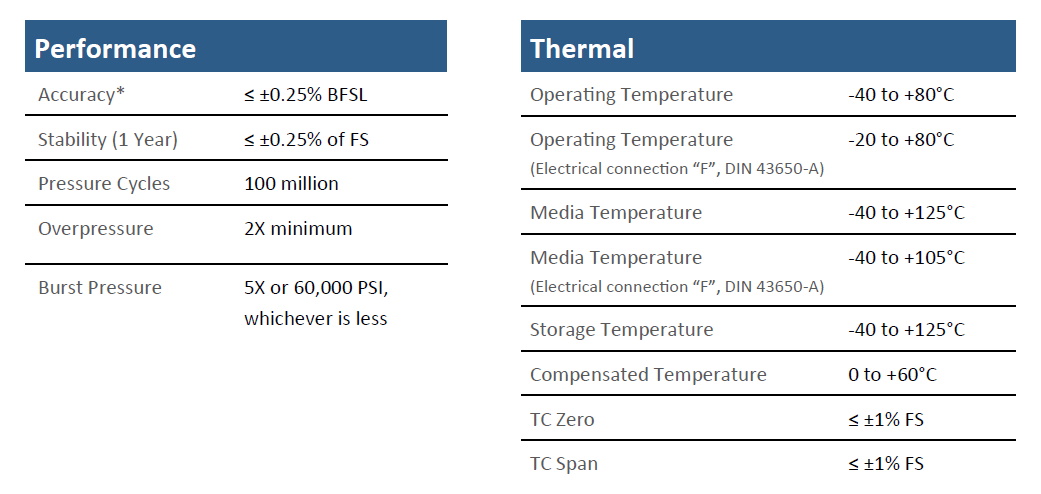

Please see the below performance and thermal tables for the Core CS80 series:

Core CS80 Specifications

* Accuracy includes non-linearity, hysteresis and non-repeatability

Specifications
Accuracy ≤ ±0.25%BFSL
Additional Features
  • Intrinsically safe pressure transducer
  • Various CSA, ANSI/UL and ABS approvals
  • Reverse polarity and EMI protection
  • Semi custom and custom designs available
Operating Temperature −40°C to +85°C
Output
  • 4-20mA
  • 1 - 5V
  • 1 - 6V
  • 10mV/V
  • 0.5 - 4.5V ratiometric
  • 0.5 - 2.5V non-ratiometric
Pressure Range 50 PSI up to 30,000 PSI
Process Media
  • 17-4 PH
  • 316L SS
  • Hastelloy C276 (special order item)
  • Inconel 718 (special order item)

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Core Sensors CS80 intrinsically safe pressure transducer series suitable for use in intrinsically safe datasheet

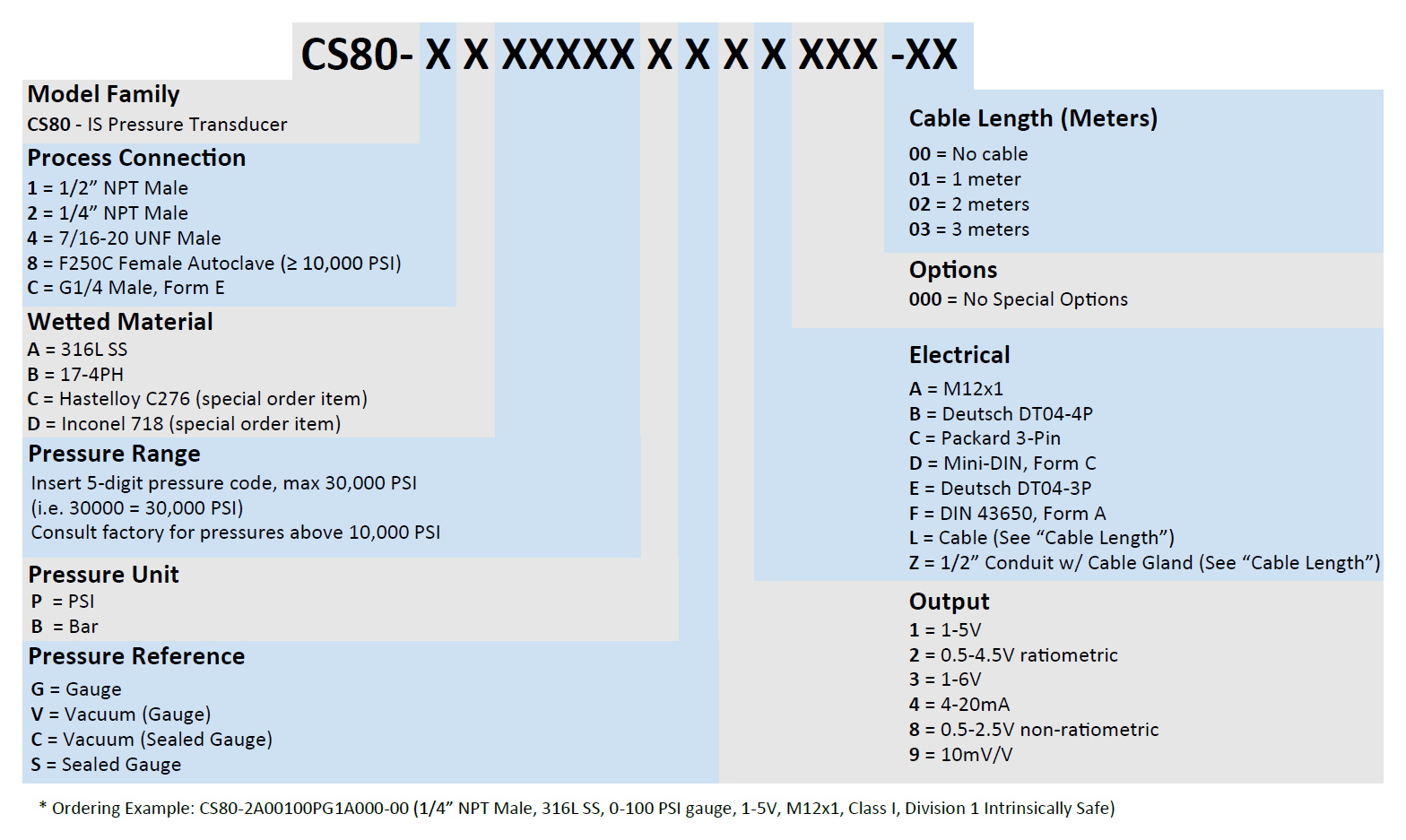

Below is the model number configuration for the C80 series from Core Sensors, please contact us for custom configurations not shown.

CS80 Part Number Example
