Core Sensors CS81 series

New Core Sensors CS81 series

The CS81 intrinsically safe low pressure transducer series from Core Sensors is designed for use in low pressure applications in intrinsically safe areas, with CSA and ABS approvals. Available with pressure ranges from 2 PSI up to 50 PSI with an all welded stainless steel construction and customisable configurations. The CS80 from Core offers a choice of electrical outputs 4-20mA, 1.5V, 1.6V, 10mV/V, 0.5 - 4.5V ratiometric and 0.5V - 2.5V non-ratiometric, various wetted materials including  316L SS and Hastelloy C276. This sensor series has an operating temperature range of -40°C to +85°C with an acuracy of ≤ ±0.25% BFSL.

  • Intrinsically safe low pressure transducer
  • Pressure ranges available from 2 PSI up to 50 PSI
  • Available pressure references gauge, vacuum (gauge), absolute or bi-directional (gauge)
  • Operating temperature −40°C to +85°C
  • Accuracy of ≤ ±0.25% BFSL
  • Burst pressure of 5x or 245 PSI whichever is less
  • Stability (1 year) of ≤ ±0.25% of FS
  • Pressure cycles of 100 million
  • Electrical output options of 4-20mA, 1-5V, 1-6V, 10mV/V, 0.5-4.5V ratiometric or 0.5-2.5V non-ratiometric
  • Reverse polarity and EMI protection
  • Various wetted materials available in 316L SS or Hastelloy C276 (special order item)
  • Semi custom and custom designs available

Approvals for the Core CS81 series include:

  • CSA ClassI, division 1, groups C,D T4 (groups A & B available with millivolt output only)
  • Class I, zone 0 AEx ia IIB T4 Ga (IIC available with millivolt output only)
  • ABS (American bureau of shipping)

Potential applications for the Core CS81 series include:

  • Natural gas compression
  • Vapour recovery
  • External fuel tank level monitoring
  • Process control

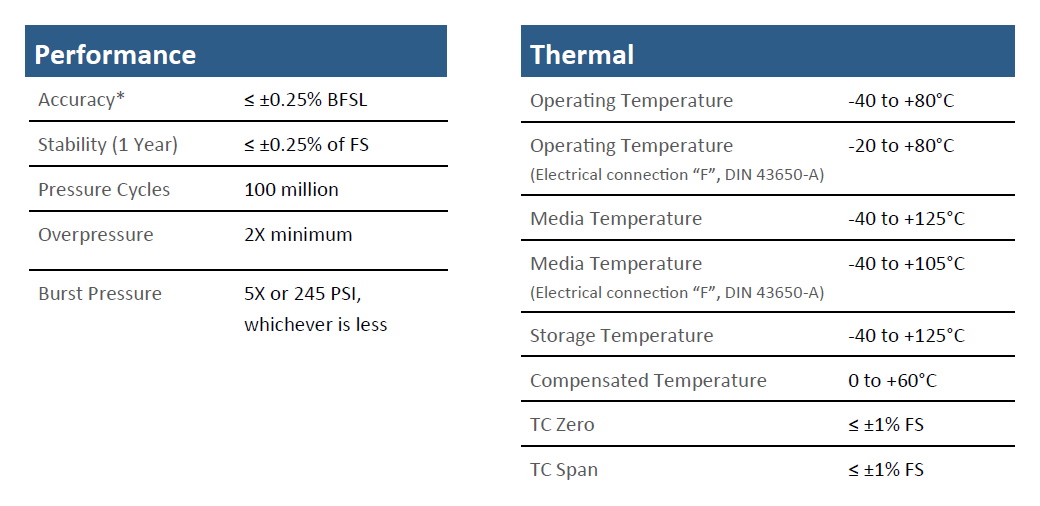

Please see the below performance and thermal tables for the Core CS81 series:

Core CS81 Specifications

* Accuracy includes non-linearity, hysteresis and non-repeatability

Specifications
Accuracy ≤ ±0.25%BFSL
Additional Features
  • Intrinsically safe low pressure transducer
  • Various CSA and ABS approvals
  • Reverse polarity and EMI protection
  • Semi custom and custom designs available
Operating Temperature −40°C to +85°C
Output
  • 4-20mA
  • 1 - 5V
  • 1 - 6V
  • 10mV/V
  • 0.5 - 4.5V ratiometric
  • 0.5 - 2.5V non-ratiometric
Pressure Range 2 PSI up to 50 PSI
Process Media
  • 316L SS
  • Hastelloy C276 (special order item)

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Core Sensors CS81 intrinsically safe low pressure transducer series datasheet

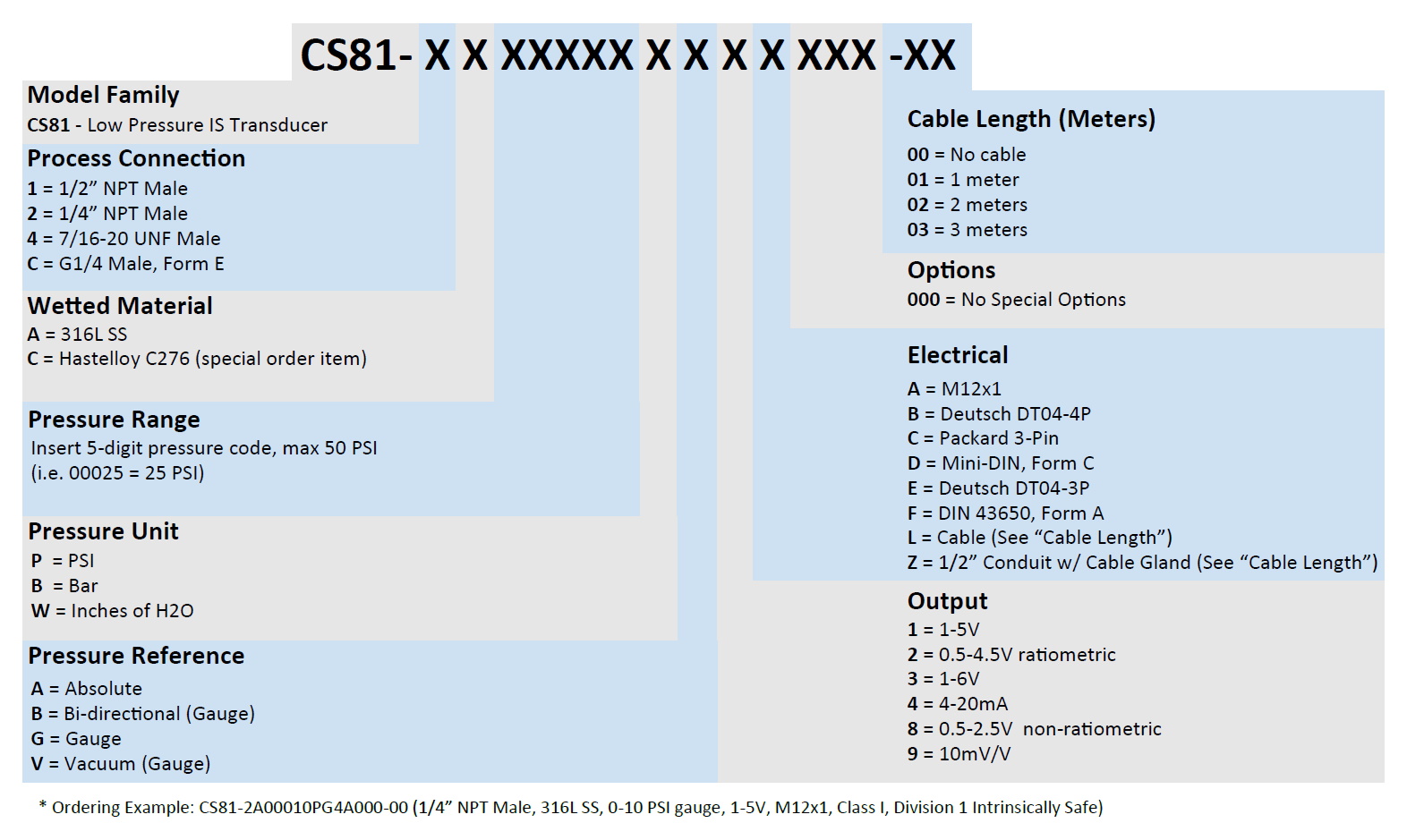

Below is the model number configuration for the C81 series from Core Sensors, please contact us for custom configurations not shown.

CS81 Part Number Example
