Core Sensors CS82 series

New Core Sensors CS82 series

The CS82 intrinsically safe submersible pressure transducer series from Core Sensors, is designed for liquid level measurements in intrinsically safe areas, with CSA and ABS approvals. Available with pressure range from 2 PSI up to 50 PSI and constructed using stainless steel (316L and 304) with an extruded EFTE cable jacket allows for installation in a variety of liquids. The CS82 from Core is available with various output signals including 4-20mA, 1-5V, 0.5-4.5V ratiometric and  0.5-2.5V non-ratiometric, the precision welds and a high strength cable gland prevent liquids from entering the electronics. This sensor series has an operating temperature range of -40°C to +80°C with an accuracy of ≤ ±0.25% BFSL.

  • Intrinsically safe submersible pressure transducer
  • Pressure ranges available from 2 PSI up to 50 PSI
  • Operating temperature −40°C to +80°C
  • Accuracy of ≤ ±0.25% BFSL
  • Burst pressure of 5x or 250 PSI whichever is less
  • Stability (1 year) of ≤ ±0.25% of FS
  • Pressure cycles of 100 million
  • Electrical output options of 4-20mA,1-5V, 0.5-4.5V ratiometric or 0.5-2.5V non-ratiometric
  • Removable nose cone  for threaded installation
  • ETFE cable jacket for high corrosion resistance

Approvals for the Core CS80 series include:

  • CSA Class I, division 1, groups C, D T4
  • Class I, zone 0 AEx ia IIB T4 Ga
  • ABS (American bureau of shipping)

Potential applications for the Core CS82 series include:

  • Fuel Tank level measurement
  • Ballast tanks
  • Fuel tank level monitoring
  • Measurement in flood prone areas
  • Depth measurement

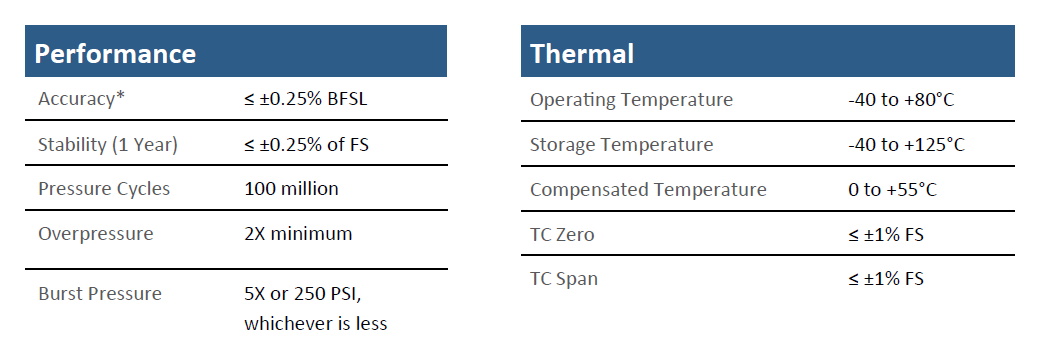

Please see the below performance and thermal tables for the Core CS82 series:

Core CS82 Specifications

* Accuracy includes non-linearity, hysteresis and non-repeatability

Specifications
Accuracy ≤ ±0.25%BFSL
Additional Features
  • Intrinsically safe submersible pressure transducer
  • Liquid level measurement applications in Intrinsically safe areas
  • Various CSA and ABS approvals
  • Removable nose cone for threaded installation
Operating Temperature −40°C to +80°C
Output
  • 4-20mA
  • 1 - 5V
  • 0.5 - 4.5V ratimetric
  • 0.5 - 2.5V non-ratimetric
Pressure Range 2 PSI up to 50 PSI
Process Media 316L SS

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Core Sensors CS82 intrinsically safe submersible pressure transducer series datasheet

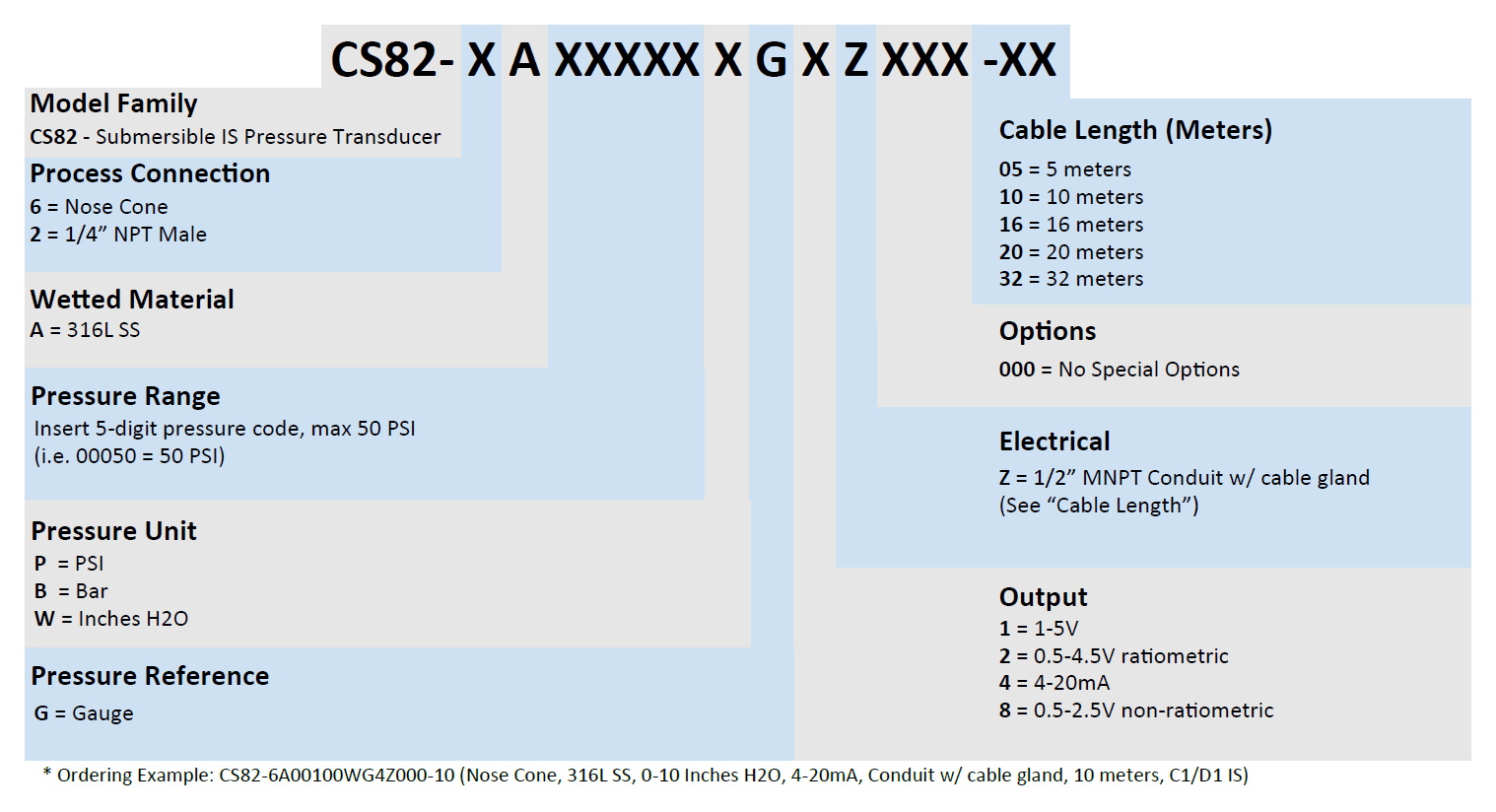

Below is the model number configuration for the C82 series from Core Sensors, please contact us for custom configurations not shown.

CS82 Part Number Example
