Core Sensors CS11 series

New Core Sensors CS11 series

The CS11 compact media isolated pressure sensor series from Core Sensors is designed with a silicone sensing element which is isolated by a fluid filled cavity. Available with pressure ranges from 0-2 up to 2,000 PSI and with an accuracy of ≤ ±0.2% BFSL. The CS11 from Core offers a 10 mV/V output signal and either 316L SS or Hastelloy C276 wetted material for compatibility in a variety of medias and an operating temperature range of -40°C to +120°C. The CS11 sensor is an economical choice in applications with minimal installation space.

  • Compact media isolated pressure sensor
  • Pressure ranges available from 0-2 up to 2,000 PSI
  • Operating temperature −40°C to +120°C
  • Acuracy of ≤ ±0.2% BFSL
  • Burst pressure of 5x or 4,000 PSI whichever is less
  • Stability (1 year) of ≤ ±0.2% of FS
  • Pressure cycles of 10 million
  • Electrical output of 10mV/V
  • Compact design
  • Flush diaphragms available
  • Various process connections available in 316L SS or Hastelloy C276 wetted material for compatibility
  • Semi custom and custom designs available

Potential applications for the Core CS11 series include:

  • Water pressure monitoring
  • Pressure measurement in confined areas
  • Low pressure monitoring
  • General industrial equipment
  • Pressure control panels

Please see the below performance and thermal tables for the Core CS11 series:

Core CS11 Specifications

* Accuracy includes non-linearity, hysteresis and non-repeatability

Specifications
Accuracy ≤ ±0.2%BFSL
Additional Features
  • Compact media isolated pressure sensor
  • Silicone sensing element
  • Flush diaphragms available
  • Semi custom and custom designs available
Operating Temperature −40°C to +120°C
Output 10mV/V
Pressure Range 0-2 to 40,000 PSI
Process Media
  • 316L SS
  • Hastelloy C276

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Core Sensors CS11 compact media isolated pressure sensor series datasheet

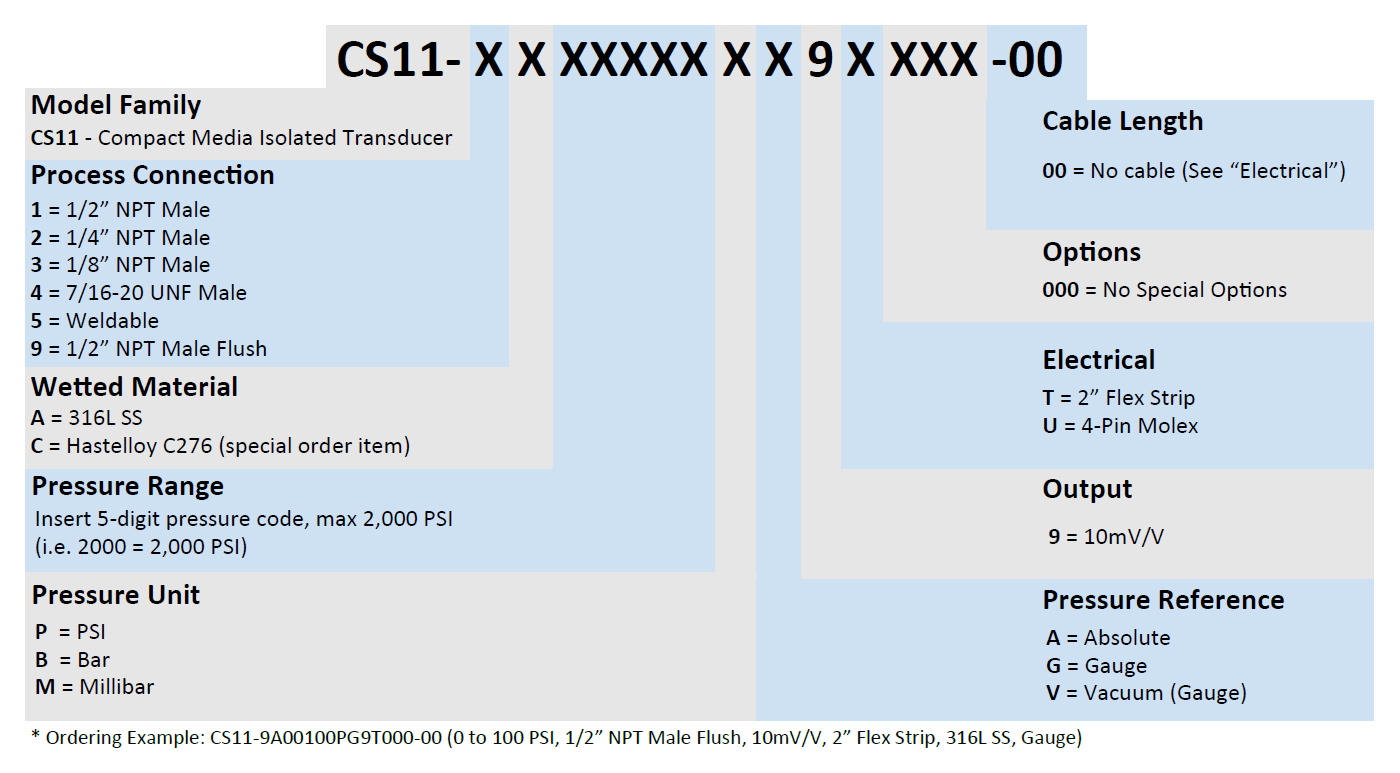

Below is the model number configuration for the CS11 series from Core Sensors

CS10 Part Number Example
  • Views: 88
  • Product Code: Core Sensors CS11 Series
  • SKU: Core Sensors CS11 Series
  • Availability: In Stock
0 Product(s) Sold
  • £0.00
  • Ex Tax: £0.00

Available Options

Tags: Core, CS11
