Emerson Paine™ 420-22-0010 Series

Emerson Paine™ 420-22-0010 Series
The new Paine™ 420-22-0010 high precision, digital transmitter series from Emerson, offering outputs of both pressure and temperature measurements. With a full scale accuracy of ±0.02%, long term stability of ±0.02% per year and is designed to operate to 20,000 PSIA and +175°C. Emerson's Paine™ 420-22-0010 sensor series utilises proprietary high precision, ultra capacitance technology and is designed for harsh long term petroleum and natural gas applications, providing unsurpassed precision, performance and stability over a wide temperature range.
  • Precision pressure and temperature transmitter
  • Pressure range available from 0 - 20,000 PSIA
  • Operating temperature range of −40°C to +175°C
  • Temperature resolution of 12 Bits minimum
  • Temperature output of °C or °F
  • Digital output of UART-TTL
  • Accuracy of ±0.02% full scale
  • Process media which are Fluids and gases compatible with UNS NO7718, solution annealed and aged to a maximum hardness of 40 HRC
  • Small external form factor is durable and withstands harsh environments
  • High precision, digital transmitter engineered with long-term stability for consistent and reliable performance
  • Customisation options available for fit-for-use designs

Potential applications for the Paine™ 420-22-0010 series include:

  • Well monitoring
  • Well logging
  • Artificial lift
  • Production control monitoring

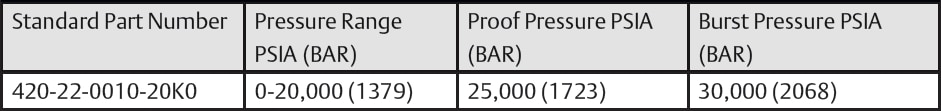

Please see below the pressure table for the Paine™ 420-22-0010 series, which includes details on standard products available as well as proof and burst pressure ratings:

Paine 420-22-0010 Specifications
Specifications
Accuracy
  • ±0.02% full scale over the calibrated temperature range
Additional Features
  • Precision pressure and temperature transmitter
  • Temperature Output of °F or °C
  • Micro-processor based technology provides precise digital measurements for optimal accuracy
  • Temperature resolution of 12 Bits minimum
  • Customizable transmitter options available for fit-for-use designs
Operating Temperature
  • −40°C to +175°C
Output
  • UART-TTL digital output
Pressure Range
  • 0 - 20,000 PSIA
Process Media
  • Fluids and gases compatible with UNS NO7718, solution annealed and aged to a maximum hardness of 40 HRC

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentEmerson Paine™ 420-22-0010 high precision digital pressure and temperature transducer series datasheet
