The FMP precision resistor series is part of the new FMx resistor family from Isabellenhütte. This resistor series offers chip size of 2010, excellent long-term stability and low thermoelectric voltages. The available resistance values are 0.0015Ω, 0.002Ω, 0.003Ω, 0.004Ω, 0.005Ω and 0.006Ω, with tolerance values of ±1% and ±5% available, and temperature coefficient <50 ppm/K. The FMP series from Isabellenhütte also features a constant current of up to 50A (at 0.0015Ω), power rating of up to 4W (at 70°C) and is suitable for both reflow and IR soldering. These resistors are designed to be AEC-Q200 qualified (status pending). Their operating temperature range is between -65°C and +170°C.

  • Precision surface-mount resistor with 2010 chip size
  • Continuous current load up to 50A (0.0015Ω)
  • Available resistance values of 0.0015Ω, 0.002Ω, 0.003Ω, 0.004Ω, 0.005Ω and 0.006Ω
  • TCR value of under <50 ppm/K (between +20°C and +60°C)
  • Applicable temperature range from -65°C to +170°C
  • Tolerance ±1.0% and ±5.0%
  • Excellent long term stability
  • Power rating up to 4W at 70°C (depending on the resistance value required)
  • Suitable for IR and reflow soldering
  • Conforms to AEC-Q200 (qualification pending)

Typical applications for the FMP series include:

  • Current sensor for power hybrid applications
  • Control systems for the automotive market
  • Frequency converters and power modules
  • Switch mode power supplies

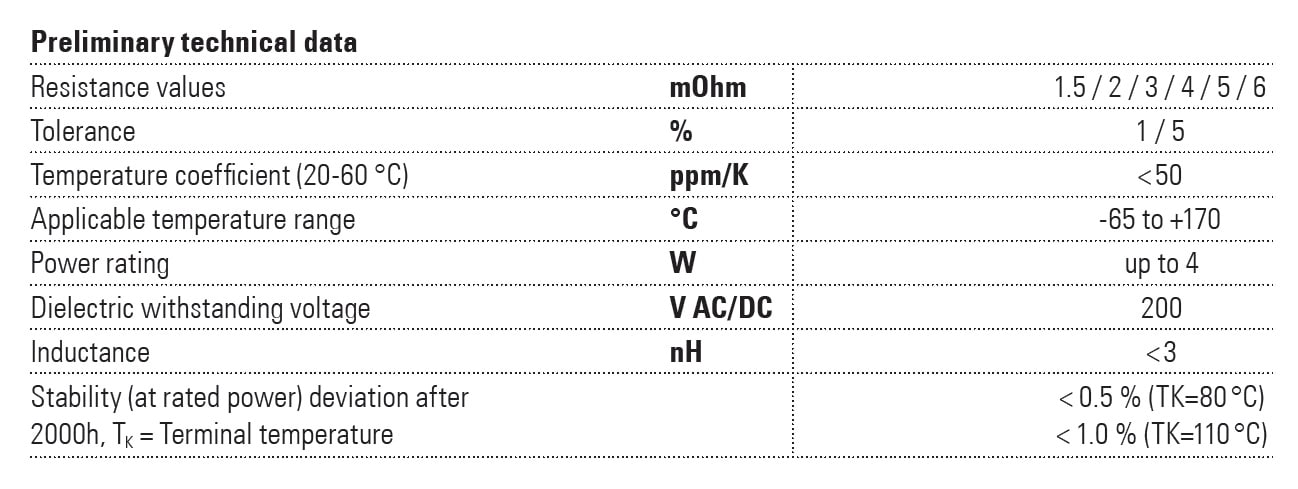

The below table gives an overview of the specifications for the Isabellenhütte FMK series:

Isabellenhütte FMP Specifications
Specifications
Additional Features
  • Surface-mount precision resistor
  • AEC-Q200 compliant (qualification pending)
  • Excellent long term stability
  • Continuous current load up to 50A (0.0015Ω)
  • IR and Reflow solderable
  • New for 2019: the only product series offering these resistance ranges in a standard 2010 package
Maximum Power Rating up to 4W (at 70°C)
Maximum Resistance 0.006Ω
Minimum Resistance 0.0015Ω
Operating Temperature -65° to +170°C
Package/Size 2010
TCR <50 ppm/K (between +20°C and +60°C)
Tolerance
  • ±1.0%
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Isabellenhütte FMP surface-mount precision resistor series datasheet
PDF Document Isabellenhütte introduce new FMx series of precision resistors







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

The FMP resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

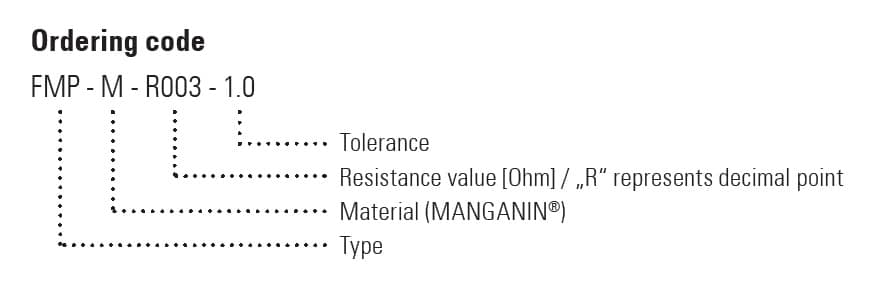

Below is an example of the part number break down for the FMP resistor series:

FMK Part Number Example

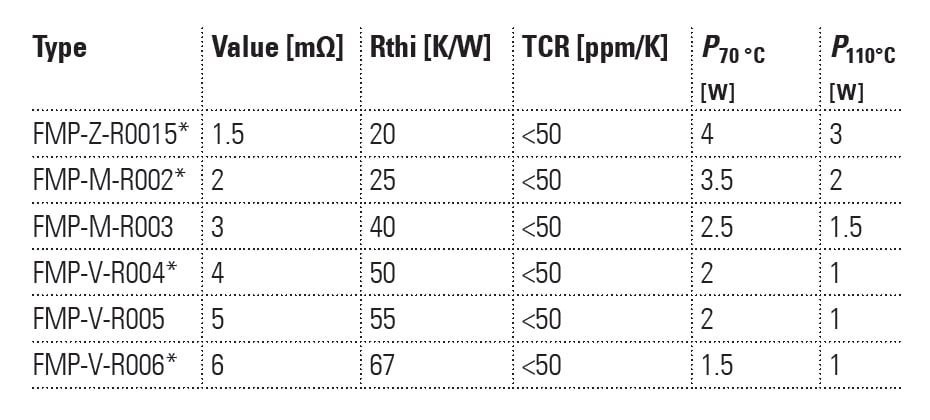

The following table highlights the standard resistance values, tolerances, tcr's and power ratings available for the FMP resistor series:

FMP Series Available Parts

* Values in preparation

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
