Related Products

Alpha TLA Series

Conformally coated thin film precision resistor
Resistance range from 100kΩ to 5MΩ
Tolerance from ±0.05% to ±1%
TCR of ±5 ppm/°C or ±10 ppm/°C
Power rating of 0.125W (at +70°C)
Temperature Range from -25°C up to +155°C

Conformally coated thin film precision resistor
Resistance range from 100kΩ to 5MΩ
Tolerance from ±0.05% to ±1%
TCR of ±5 ppm/°C or ±10 ppm/°C
Power rating of 0.125W (at +70°C)
Temperature Range from -25°C up to +155°C

Alpha TLC Series

Conformally coated thin film precision resistor
Resistance range from 200kΩ to 10MΩ
Tolerance from ±0.02% to ±1%
TCR of ±5 ppm/°C or ±10 ppm/°C
Power rating of 0.25W (at +70°C)
Temperature Range from -25°C up to +155°C

Conformally coated thin film precision resistor
Resistance range from 200kΩ to 10MΩ
Tolerance from ±0.02% to ±1%
TCR of ±5 ppm/°C or ±10 ppm/°C
Power rating of 0.25W (at +70°C)
Temperature Range from -25°C up to +155°C

Caddock MK227 Series

Precision power film radial leaded through-hole resistor
Non-inductive with expanded resistance range
Maximum working voltage of 200V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
Extended life stability is typically better than 0.1% per 1,000 hours
Temperature range from -40°C up to +150°C

Precision power film radial leaded through-hole resistor
Non-inductive with expanded resistance range
Maximum working voltage of 200V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
Extended life stability is typically better than 0.1% per 1,000 hours
Temperature range from -40°C up to +150°C

Caddock MK232 Series

Precision power film radial leaded through-hole resistor
Non-inductive with expanded resistance range
Maximum working voltage of 200V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
Extended life stability is typically better than 0.1% per 1,000 hours
Temperature range from -40°C up to +150°C

Precision power film radial leaded through-hole resistor
Non-inductive with expanded resistance range
Maximum working voltage of 200V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
Extended life stability is typically better than 0.1% per 1,000 hours
Temperature range from -40°C up to +150°C

Caddock MK727 Series

Precision power film radial leaded through-hole resistor
Non-inductive with expanded resistance range
Maximum working voltage of 400V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
Extended life stability is typically better than 0.1% per 1,000 hours
Temperature range from -40°C up to +150°C

Precision power film radial leaded through-hole resistor
Non-inductive with expanded resistance range
Maximum working voltage of 400V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
Extended life stability is typically better than 0.1% per 1,000 hours
Temperature range from -40°C up to +150°C

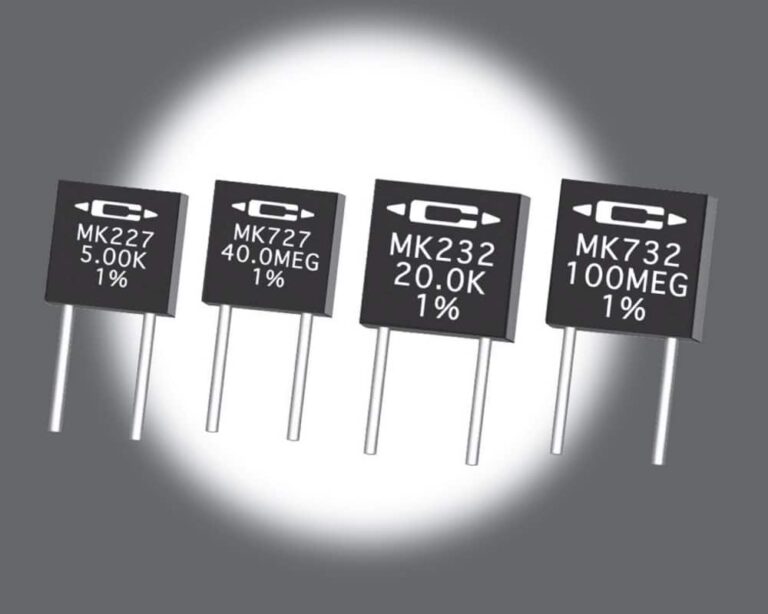

Caddock MK732 Series

Precision power film radial leaded through-hole resistor
Non-inductive with expanded resistance range
Maximum working voltage of 400V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
Extended life stability is typically better than 0.1% per 1,000 hours
Temperature range from -40°C up to +150°C

Precision power film radial leaded through-hole resistor
Non-inductive with expanded resistance range
Maximum working voltage of 400V
Compact rectangular package with standard lead spacing
Constructed with Caddock’s Micronox® resistance films fired onto a solid ceramic substrate
Extended life stability is typically better than 0.1% per 1,000 hours
Temperature range from -40°C up to +150°C
