The BRS surface-mount resistor series from Isabellenhütte has an excellent long term stability and is ideal for mounting on DBC and IMS substrate with a maximum solder temperature up to 350°C for 30 seconds or 250°C for 10 minutes. The BRS series from Isabellenhütte has a range of resistance values from 0.002Ω to 0.025Ω and solid metal precision materials.
  • 2-terminal surface-mount resistor with excellent long term stability
  • A select range of resistance values of between 0.002Ω and 0.025Ω are available
  • TCR value from 100 ppm/K (between +20°C and +60°C)
  • Power rating 2W (at 120°C)
  • Constant current up to 32A(0.0002Ω)
  • Applicable temperature range from -55°C to +170°C
  • Tolerance options available ±1%, ±2%, ±3% and ±5% (depending on the resistance values required)
  • AEC-Q200 qualified
  • 3812 chip size

Typical applications for the SMT series include:

  • Current sensor for power hybrid applications
  • Frequency converters
  • Power modules
  • High current applications for the automotive market

The below tables give an overview of the specifications for the Isabellenhütte BRS series as well as the standard parts available:

Isabellenhütte BRS Specifications

Isabellenhütte BRS Table 1

Further values and tolerances available on request

Specifications
Additional Features
  • 3812 chip size
  • 2-terminal surface-mount resistor
  • Constant current up to 32A (0.002Ω)
  • AEC-Q200 qualified
  • Applicable temperature range -55°C to +170°C
  • Mounting: Reflow-soldering
  • Excellent long-term stability
Maximum Power Rating
  • 2W (at +120°C)
Maximum Resistance
  • 0.025Ω
Minimum Resistance
  • 0.002Ω
TCR
  • <130 ppm/K (between +20°C and +60°C)
Tolerance
  • ±1.0%
  • ±2.0%
  • ±3.0%
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte BRS low resistance surface-mount resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

The BRS resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

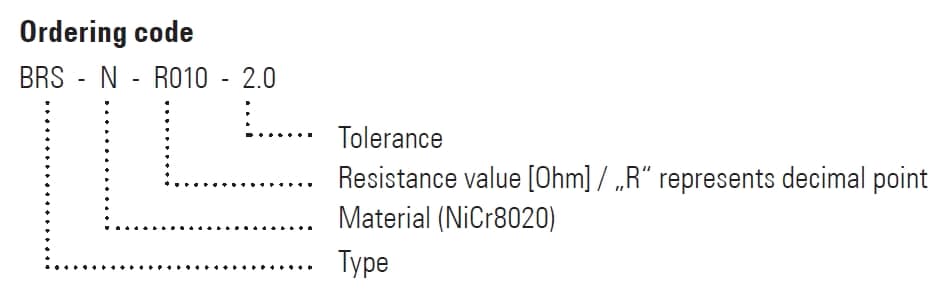

Below is an example of the part number break down for the BRS resistor series:

BRS Part Number Example





The following table highlights the standard resistance values and tolerances available for the BRS resistor series:

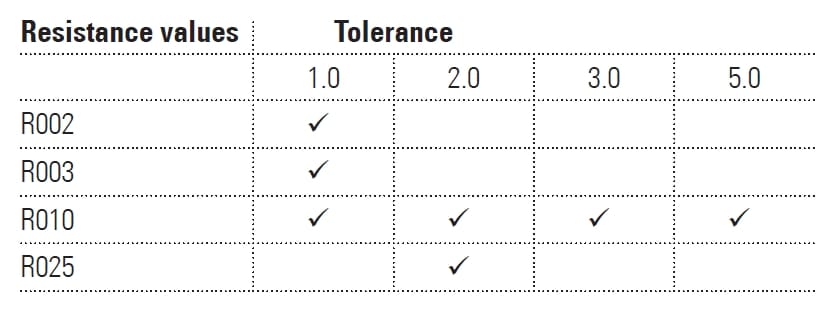

BRS Series Available Parts

RoHS Compliance

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
