The BVB surface-mount resistor series from Isabellenhütte is made of composite material considered ideal for use on DBC or ceramic substrate. The BVB series from Isabellenhütte offers 4-terminal connection has excellent long term stability with a range of resistance values from 0.0002 to 0.005Ω within a 2725 chip size
  • 4-terminal surface-mount resistor with excellent long term stability
  • A select range of resistance values of between 0.0002Ω and 0.005Ω are available
  • Power rating 12W (at 70°C) and up to 5W (at 100°C)
  • TCR <20ppm/K for 0.0002Ω and 0.0005Ω, <50ppm/K between 0.001Ω and 0.005Ω (between +20°C and +60°C)
  • Applicable temperature range from -65°C to +170°C
  • ±1% and ±5% tolerance options available (depending on the resistance values required)
  • AEC-Q200 qualified
  • 2725 chip size

Typical applications for the BVB series include:

  • Current sensor for power hybrid applications
  • Frequency converters
  • Power modules
  • High current applications for the automotive market

The below tables give an overview of the specifications for the Isabellenhütte BVB series as well as the standard parts available:

Isabellenhütte BVB Specifications
Specifications
Additional Features
  • 2725 chip size
  • 4-terminal surface-mount resistor
  • AEC-Q200 qualified
  • Applicable temperature range -65°C to +170°C
  • Ideal for mounting on DBC/IMS substrate
  • Excellent long term stability
Maximum Power Rating
  • up to 12W (at +70°C)
  • up to 5W (at +100°C)
Maximum Resistance
  • 0.005Ω
Minimum Resistance
  • 0.0002Ω
TCR
  • <20 ppm/K for 0.0002Ω and 0.0005Ω (between +20°C and +60°C)
  • <50 ppm/K between 0.001Ω and 0.005Ω (between +20°C and +60°C)
Tolerance
  • ±1.0%
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte BVB surface-mount 4-terminal resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

The BVB resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

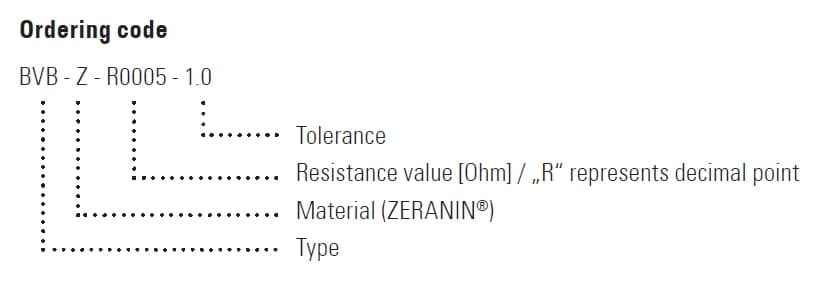

Below is an example of the part number break down for the BVB resistor series:

BVB Part Number Example

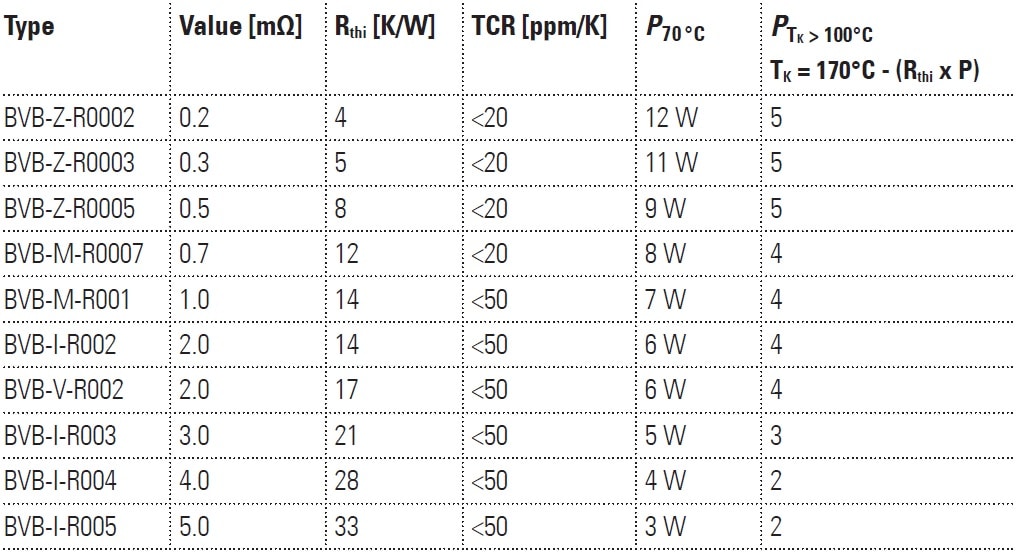

The following table highlights the standard resistance values available for the BVB resistor series:

BVB Series Available Parts

Material type: I = ISAOHM®, M = MANGANIN®, Z = ZERANIN®, V = NOVENTIN®

RoHS Compliance

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
