The BVD 2-terminal precision resistor series from Isabellenhütte are designed for energy metering and battery charging, with a resistance value of 0.0005Ω (further values available on request). The BVD series from Isabellenhütte is available with heavy cooper connectors, continuous current load up to 75A.
  • 2-terminal precision resistor
  • Heavy copper connectors
  • Continuous current load of up to 75A
  • Resistance value of 500µΩ (Further values available on request)
  • TCR of <50 ppm/K (between +20°C and +60°C)
  • Applicable temperature range from -55°C to +140°C
  • Tolerance ±5.0%
  • Excellent long term stability
  • Low inductance value of <3nH
  • Power rating 3W

Typical applications for the BVD series include:

  • Energy metering and kWh-meters
  • Battery current sensing
  • High current sensing in automotive applications
  • Current measurement in battery chargers

The below table gives an overview of the specifications for the Isabellenhütte BVD series:

Isabellenhütte BVD Specifications

* Further values available on request

Specifications
Additional Features
  • 2-terminal surface-mount resistor
  • Heavy cooper connectors
  • Constant current load up to 75A
  • Excellent long-term stability
  • Mounting: Reflow-soldering or welding on copper
  • Applicable temperature range -55°C to +140°C
  • Maximum solder temperature up to 350°C for 30 sec or 250°C for 10 min
  • Inductance of <3nH
Maximum Power Rating
  • 3W
Maximum Resistance
  • 500µΩ
Minimum Resistance
  • 500µΩ
TCR
  • <50 ppm/K (between +20°C and +60°C)
Tolerance
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte BVD precision resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

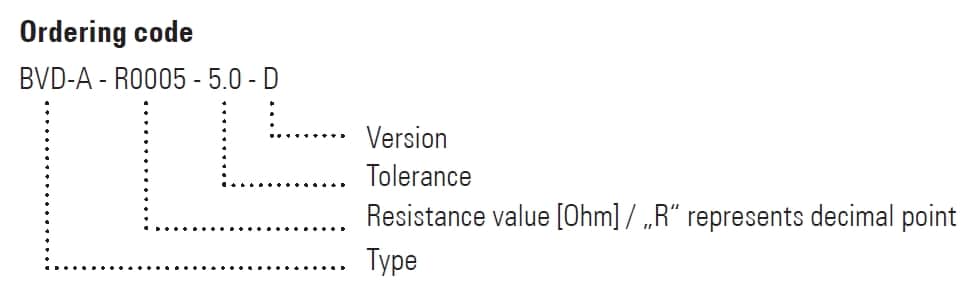

Below is an example of the part number break down for the BVD resistor series:

BVD Part Number Example

RoHS Compliance

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
