The BVF 2-terminal precision resistor series from Isabellenhütte is a small designed resistor with a chip size 1213. The resistance values for these resistors are 0.001Ω to 0.0015Ω with a TCR of <70 ppm/K using NOVENTIN® material. The BVF series from Isabellenhütte offers a continuous current up to 55A (0.001Ω), with excellent long term stability and AEC-Q200 qualified.
  • 2-Terminal precision resistor with 1213 chip size
  • Continuous current load up to 55A (0.001Ω)
  • Resistance values of 0.001Ω and 0.0015Ω
  • TCR value <70 ppm/K (between +20°C and +60°C)
  • Applicable temperature range from -65°C to +175°C
  • Tolerance ±1.0% and ±5.0%
  • Excellent long term stability
  • Power rating 3W (up to +145°C)
  • AEC-Q200 qualified
  • Maximum solder temperature up to 350°C for 30 sec

Typical applications for the BVF series include:

  • Current sensor for power hybrid applications
  • High current applications for the automotive market
  • Frequency converters and power modules

The below table gives an overview of the specifications for the Isabellenhütte BVF series:

Isabellenhütte BVF Specifications
Specifications
Additional Features
  • 1213 chip size
  • 2-terminal surface-mount resistor
  • AEC-Q200 qualified
  • Applicable temperature range -65°C to +175°C
  • Excellent long term stability
  • Continuous current load up to 55A (0.001Ω)
  • Maximum solder temperature up to 350°C for 30s
Maximum Power Rating
  • up to 3W for 0.001Ω (stability <1% at +145°C)
  • 2W for 0.0015Ω(stability <1% at +145°C)
Maximum Resistance
  • 0.0015Ω
Minimum Resistance
  • 0.001Ω
TCR
  • <70 ppm/K (between +20°C and +60°C)
Tolerance
  • ±1.0%
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte BVF small 2-terminal surface-mount resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

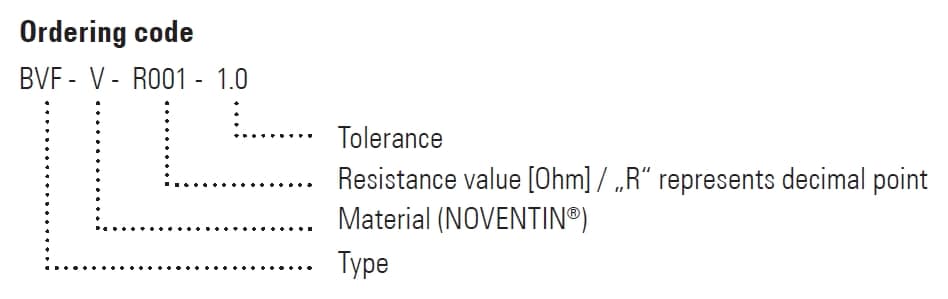

Below is an example of the part number break down for the BVF resistor series:

BVF Part Number Example

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
