The BVH 4-terminal through-hole precision resistor series from Isabellenhütte is a chip size of 3820 with solid copper connections. The resistance values available are 0.0003Ω, 0.0005Ω, 0.001Ω and 0.002Ω with a TCR of <100 ppm/K (0.001Ω and 0.005Ω) and <300 ppm/K (0.0003Ω and 0.0005Ω). The BVH series from Isabellenhütte offers a continuous current up to 100A (0.0003Ω), with excellent long term stability and AEC-Q200 qualified.
  • 4-Terminal through-hole precision resistor with 3820 chip size
  • Continuous current load up to 100A (0.0003Ω)
  • Resistance values available 0.0003Ω, 0.0005Ω, 0.001Ω and 0.002Ω
  • TCR value <100 ppm/K for values 0.001Ω and 0.005Ω and <300 ppm/K for values 0.0003Ω and 0.0005Ω (between +20°C and +60°C)
  • Applicable temperature range from -55°C to +170°C
  • Tolerance ±3.0% and ±5.0% (depending on the resistance value required)
  • Excellent long term stability
  • Permanent power rating 5W
  • Maximum solder temperature up to 350°C for 30 seconds
  • AEC-Q200 qualified

Typical applications for the BVH series include:

  • High current applications for the automotive market
  • Frequency converters, power modules and power tools

The below table gives an overview of the specifications for the Isabellenhütte BVH series:

Isabellenhütte BVH Specifications
Specifications
Additional Features
  • 3820 chip size
  • 4-terminal through-hole resistor
  • AEC-Q200 qualified
  • Applicable temperature range -55°C to +170°C
  • Excellent long term stability
  • Continuous current load up to 100A (0.0003Ω)
  • Maximum solder temperature up to 350°C for 30s
Maximum Power Rating
  • 5W for 0.001Ω (at +135°C) (stability <1%)
Maximum Resistance
  • 0.002Ω
Minimum Resistance
  • 0.0003Ω
TCR
  • <300 ppm/K for 0.0003Ω and 0.0005Ω (between +20°C and +60°C)
  • <100 ppm/K for 0.001Ω and 0.002Ω (between +20°C and +60°C)
Tolerance
  • ±3.0%
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte BVH through-hole precision resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

The BVH resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

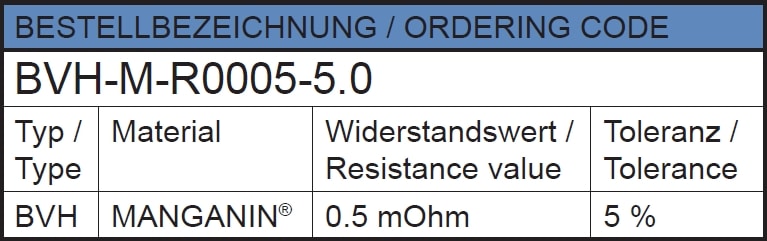

Below is an example of the part number break down for the BVH resistor series:

BVH Part Number Example

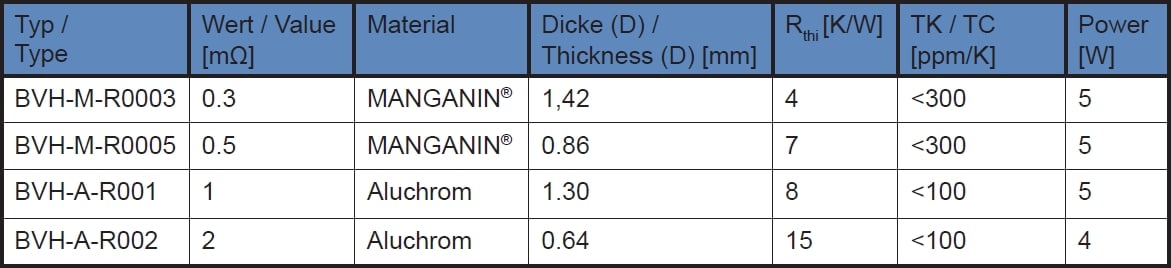

The following table highlights the standard resistance values available for the BVH resistor series:

BVH Series Available Parts

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
