Isabellenhütte BVN Series

Isabellenhütte BVN Series
The BVN resistor series from Isabellenhütte offers 4-terminal surface-mount connection technology for current sensing applications in a space saving design. Developed for high current automotive applications with a power rating up to 5W, resistance values available are 0.0005Ω and 0.01Ω. The BVN series from Isabellenhütte offers excellent long term stability, manufactured from solid metail alloys and are ideal for mounting on DBC or ceramic substrate.
  • 4-terminal surface-mount precision resistor
  • 1216 chip size
  • Continuous current load up to 100A (0.0005Ω)
  • Resistance values of 0.0005Ω and 0.001Ω
  • TCR value <50 ppm/K (between +20°C and +60°C)
  • Applicable temperature range from -55°C to +170°C
  • Tolerance ±1.0% and ±5.0% tolerance
  • Excellent long term stability
  • Power rating 5W (at +100°C)
  • Maximum solder temperature up to 350°C for 30 sec
  • AEC-Q200 qualified

Typical applications for the BVN series include:

  • Current sensor for power hybrid applications
  • High current applications for the automotive market
  • Frequency converters and power modules

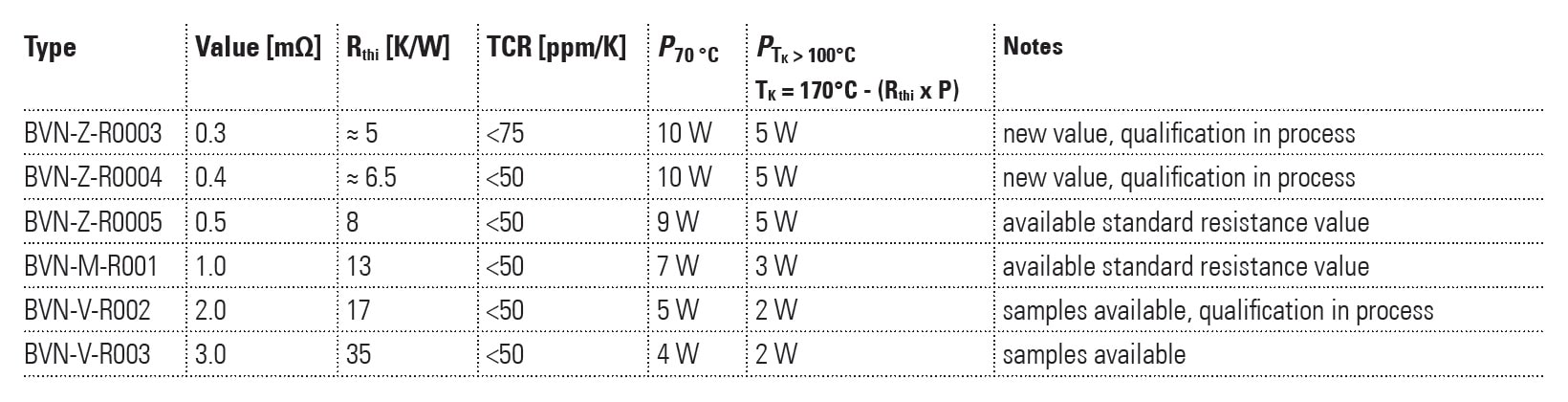

The below table gives an overview of the specifications for the Isabellenhütte BVN series:

Isabellenhütte BVN Specifications
Specifications
Additional Features
  • 1216 chip size
  • 4-terminal surface-mount resistor
  • AEC-Q200 qualified
  • Applicable temperature range -55°C to +170°C
  • Excellent long term stability
  • Continuous current load up to 100A (0.0005Ω)
  • Maximum solder temperature up to 350°C for 30s
  • Ideal suited for mounting on DBC / IMS substrate
Maximum Power Rating
  • 5W for 0.0005Ω (at +100°C)
  • 3W for 0.0005Ω (at +100°C)
Maximum Resistance
  • 0.001Ω
Minimum Resistance
  • 0.0005Ω
TCR
  • <50 ppm/K (between +20°C and +60°C)
Tolerance
  • ±1.0%
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte BVN surface-mount 4-terminal precision resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

Below is an example of the part number break down for the BVN resistor series:

BVN Part Number Example

RoHS Compliance

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
