Isabellenhütte IKL-H Series

Isabellenhütte IKL-H Series
The IKL-H series from Isabellenhütte is a high current resistor for calibration. Developed in order to meet the users requirements for compact, high quality, easily mountable and calibration resistors, for the measurement of very high and permanent currents but also can secure detection of extremely small DC currents in the mA range. The IKL-H series from Isabellenhütte offers 4 wire resistors which are completely pluggable, the precision alloy Manganin® guarantees a low TCR and a high stability. Supplied with a DKD calibration certificate to meet the highest requirements of calibration measurements.
  • High current resistors for calibration
  • Resistance Range 5µΩ to 100µΩ
  • Standard values 5µΩ, 30µΩ and 60µΩ,
  • Current (pulse) of 100A to 2000A
  • Low TCR of ±10 ppm/K (from +20°C to +60°C)
  • Applicable temperature range from 0°C to +80°C
  • Toleranceof ±0.05%
  • Long term stability of <0.05%
  • 4 wire resistors completely pluggable
  • High stability
  • Detection of small DC currents in the mA range
  • DKD calibration certificate

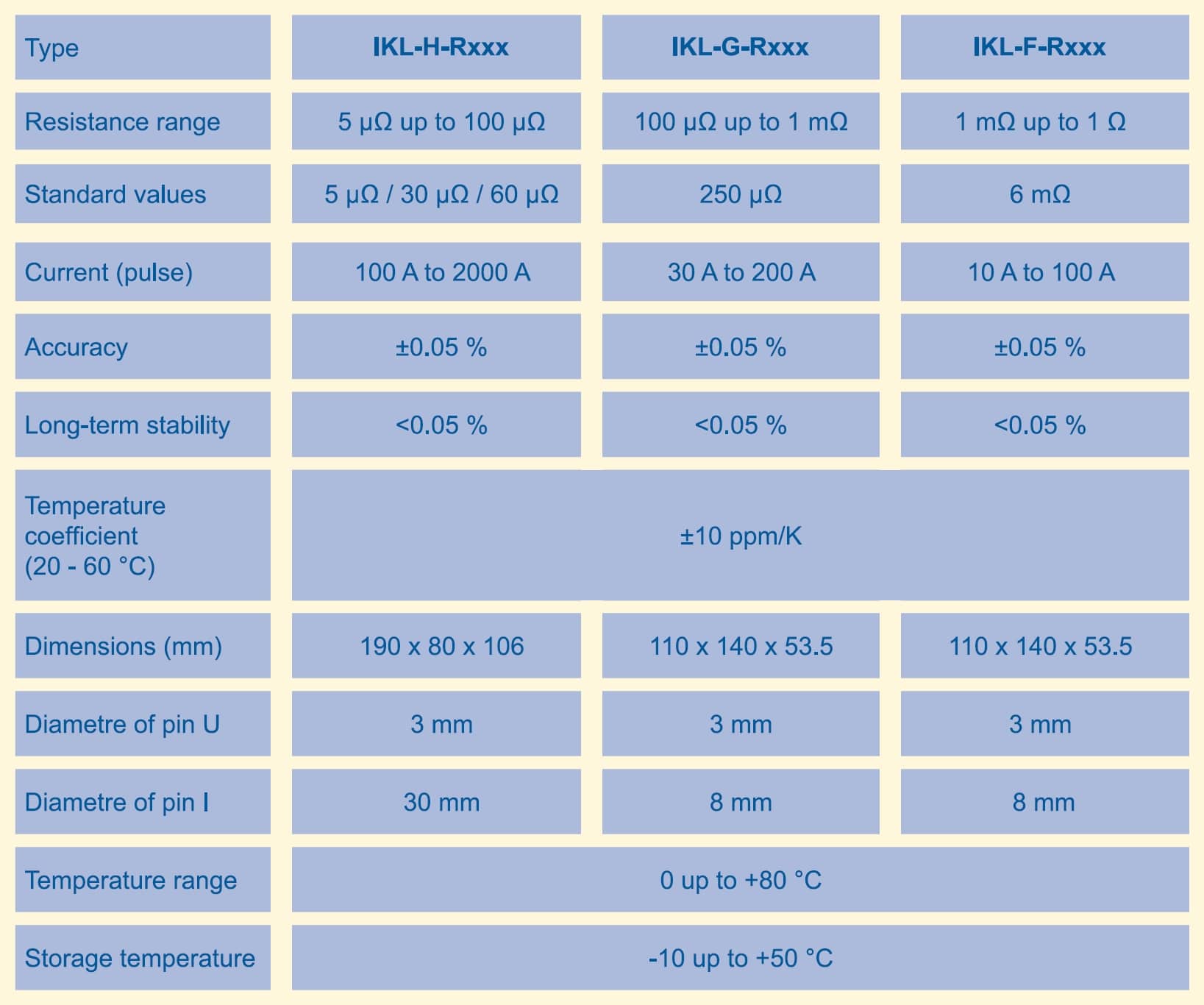

The below table gives an overview of the specifications for the Isabellenhütte IKL series:

Isabellenhütte IKL Specifications
Specifications
Additional Features
  • High current resistor for calibration
  • DKD calibration certificate
  • Applicable temperature range 0°C to +80°C
  • Long term stability <0.05&percnt
  • Standard resistance values of 5µΩ, 30µΩ and 60µΩ
Current Rating
  • 100A (Pulse) to 2000A (Pulse)
Maximum Resistance
Minimum Resistance
  • 0.001Ω
TCR
  • ±10 ppm/K
Tolerance
  • ±0.05%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte IKL-F, IKL-G and IKL-H fixed standard resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

RoHS Compliance

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
