The KVM precision resistor series from Isabellenhütte are designed for battery management systems and battery chargers, with a resistance value of 0.0001Ω. The KVM series from Isabellenhütte has heavy copper connections with a continuous current load up to 250A.
  • 2-Terminal precision resistor for battery management systems and battery chargers
  • Heavy copper connections
  • Continuous current load up to 250A
  • Resistance values of 100µΩ
  • TCR of <50 ppm/K (between +20°C and +60°C)
  • Applicable temperature range from -55°C to +170°C
  • Tolerance of ±5.0%
  • Excellent long term stability
  • AEC-Q200 qualification
  • Max. solder temperature up to 350 °C / 30 sec or 250 °C / 10 min
  • Excellent long term stability
  • Low inductance value of <5nH
  • Power rating 7W (at 110°C) and 5W (at 120°C)

The below table gives an overview of the specifications for the Isabellenhütte KVM series:

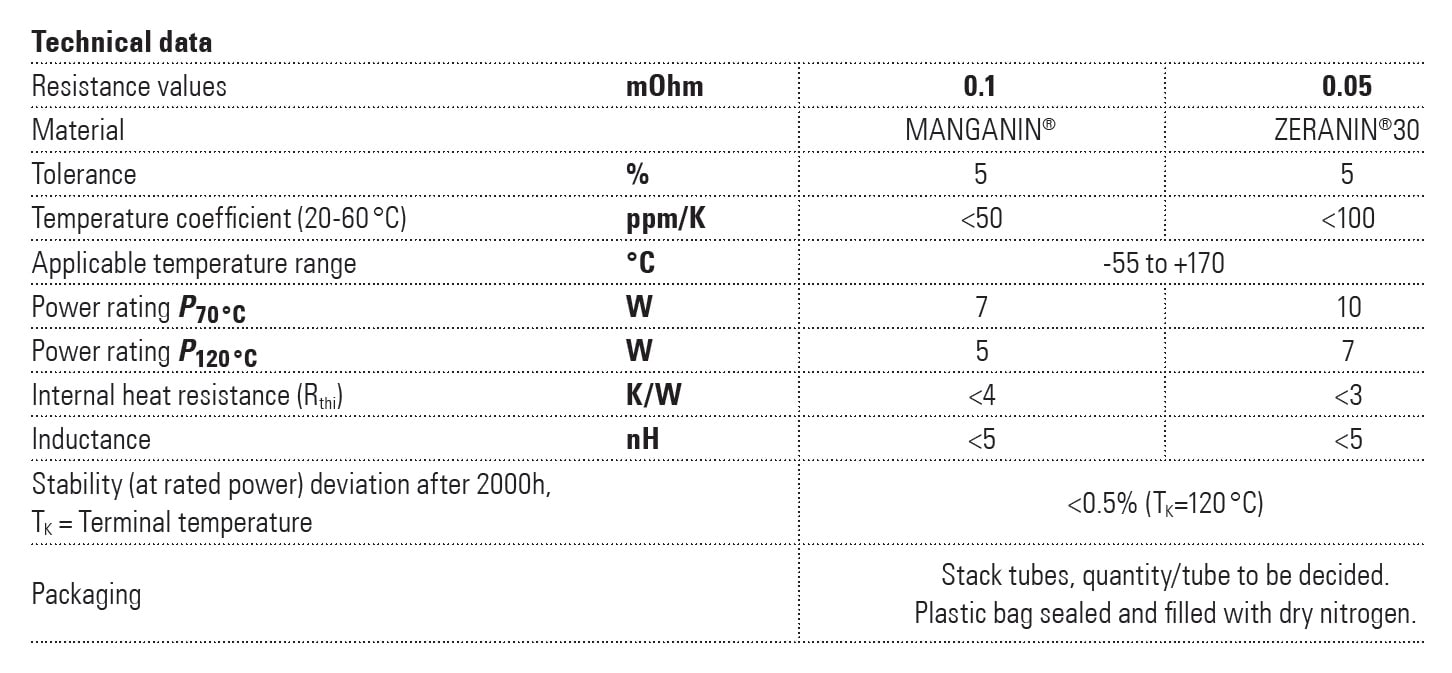

Isabellenhütte KVM Specifications
Specifications
Additional Features
  • 2-terminal surface-mount resistor
  • Constant current load up to 250A
  • Excellent long-term stability
  • Heavy copper connectors
  • Applicable temperature range -55°C to +140°C
  • Maximum solder temperature up to 350°C for 30sec or 250°C for 10min
  • AEC-Q200 qualification
  • Inductance of <5nH
Maximum Power Rating
  • 7W (at +110°C)
  • 5W (at +120°C)
Maximum Resistance
  • 100µΩ
Minimum Resistance
  • 100µΩ
TCR
  • <50 ppm/K (between +20°C and +60°C)
Tolerance
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte KVM high current precision resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

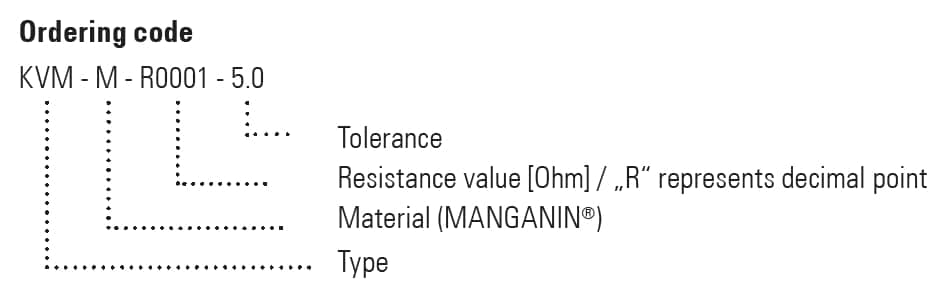

Below is an example of the part number break down for the KVM resistor series:

KVM Part Number Example

RoHS Compliance

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
