The PBH through-hole resistor series from Isabellenhütte offers 2-terminal connection technology for current sensing applications. Designed for easy heat sink mounting, this resistor allows high precision measurements even with low resistance value range from 0.002Ω to 100Ω. The PBH series from Isabellenhütte has low inductance and has high pulse power handling capabilities.
  • 2-terminal through-hole resistor
  • Designed for easy heat sink mounting
  • Selective resistance range between 0.002Ω and 100Ω available
  • Power rating 10W on a suitable heat sink (3W power rating in free air)
  • Constant current of 70A (0.002Ω)
  • TCR of <50 ppm/K (between +20°C and +60°C)
  • Applicable temperature range from -55°C to +125°C
  • Tolerance options available ±0.5%, ±1% and ±5% (depending on the resistance values required)
  • Space saving design similar to TO247
  • Excellent long term stability

Typical applications for the SMT series include:

  • Power Modules
  • Frequency converters
  • Switch mode power supplies

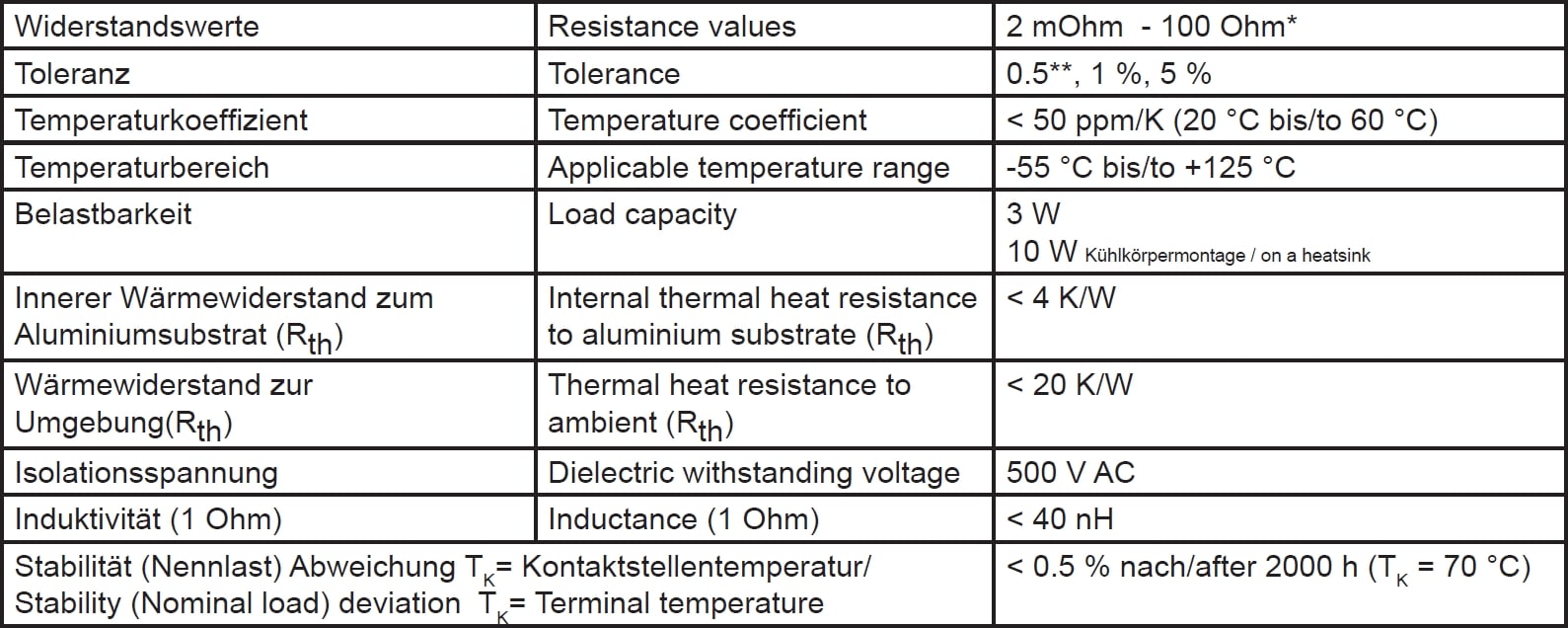

The below table gives an overview of the specifications for the Isabellenhütte PBH series:

Isabellenhütte PBH Specifications

* Please contact us for available parts or see the ordering information tab
** Tolerance 0.5% for values ≥10 mOhm

Specifications
Additional Features
  • Space saving design similar size to TO247
  • 2-terminal through-hole resistor
  • Designed for easy heat sink mounting
  • Constant current 70A (0.002Ω)
  • High pulse power rating
  • Very low TCR
  • Applicable temperature range -55°C to +125°C
  • Up to 10W permanent power
Maximum Power Rating
  • 10W (on a heat sink)
  • 3W (in free air)
Maximum Resistance
  • 100Ω
Minimum Resistance
  • 0.002Ω
TCR
  • <5 ppm/K (between +20°C and +60°C)
Tolerance
  • ±0.5%
  • ±1.0%
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte PBH through-hole 2-terminal resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

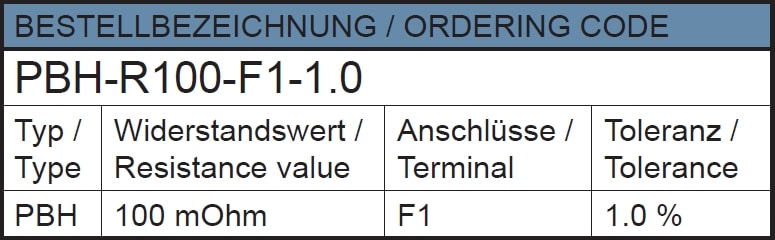

Below is an example of the part number break down for the PBH resistor series:

PBH Part Number Example

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
