The PBV through-hole resistor series from Isabellenhütte offers 4-terminal connection technology for current sensing applications. Designed for easy heat sink mounting, The Kelvin connections on this resistor allow high precision measurements even with very low resistance values range from 0.0005Ω to 1Ω available. The PBV series from Isabellenhütte has a pulse power rating of 2J for 10ms capabilities.
  • 4-terminal through-hole space saving design resistor
  • Designed for easy heat sink mounting
  • Selective resistance range between 0.0005Ω and 1Ω available
  • Power rating 10W on a suitable heat sink (3W power rating in free air)
  • Applicable temperature range from -55°C to +125°C
  • Tolerance options available ±0.5%, ±1% and ±5% (depending on the resistance values required)
  • TCR of <30 ppm/K for values ≥0.010Ω and <75 ppm/K for values <0.010Ω (between +20°C and +60°C)
  • Pulse power rating 2J for 10ms
  • Excellent long term stability

Typical applications for the PBV series include:

  • Power modules
  • Frequency converters
  • Switch power supplies

The below table gives an overview of the specifications for the Isabellenhütte PBV series:

Isabellenhütte PBV Specifications
Specifications
Additional Features4-terminal through-hole precision low ohm resistor which is designed for easy heat sink mounting, with a high pulse power rating of 2J for 10ms. Excellent long term stability, with an applicable temperature range of -55°C to +125°C and up to 10W permanent power.
Maximum Power Rating10W (on a heat sink)
  • 3W (in free air)
  • Maximum Resistance
    Minimum Resistance0.0005Ω
    Package/SizeThrough-hole
    TCR<30 ppm/K for values ≥0.0005Ω (between +20°C and +60°C)
    <75 ppm /K for values <0.001Ω (between +20°C and +60°C)
    Tolerance±0.5%
    ±1.0%
    ±5.0%

    We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





    DOCUMENTATION
    PDF DocumentIsabellenhütte PBV through-hole 4-terminal resistor series datasheet
    PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







    VIDEOS
    Introduction to Isabellenhütte Heusler GmbH & Co. KG

    Introduction video to Isabellenhütte, their business and product applications examples
    Isabellenhütte precision and power resistors application overview

    This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
    VIDEOS
    Introduction to Isabellenhütte Heusler GmbH & Co. KG

    Introduction video to Isabellenhütte, their business and product applications examples
    Isabellenhütte precision and power resistors application overview

    This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

    The PBV resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

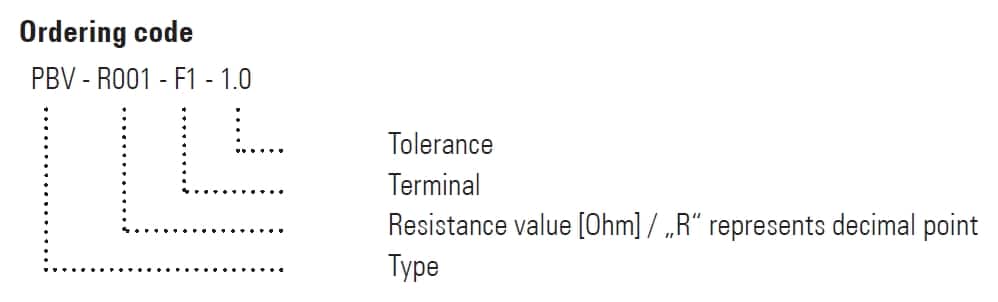

    Below is an example of the part number break down for the PBV resistor series:

    PBV Part Number Example

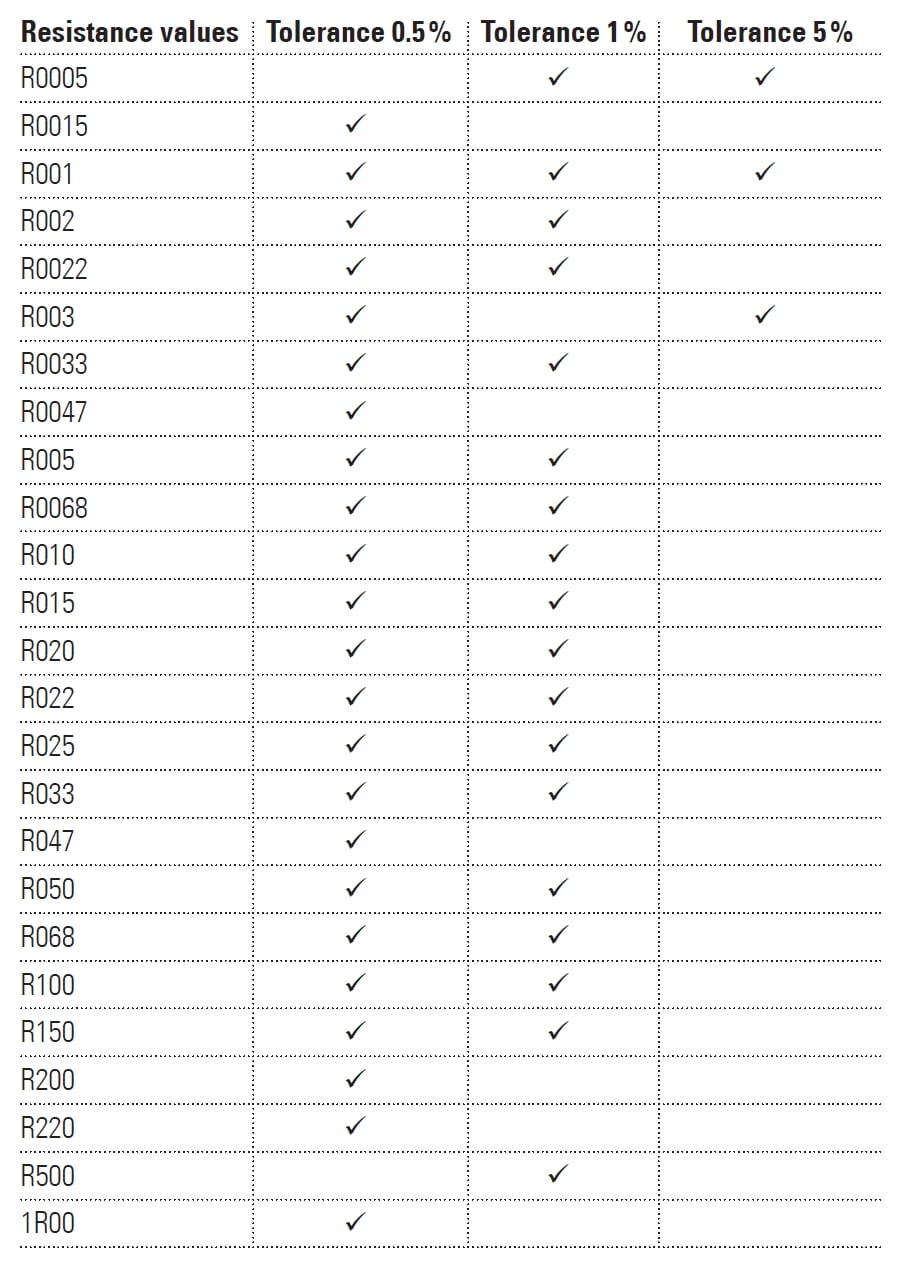

    The following table highlights the standard resistance values and tolerances available for the PBV resistor series:

    PBV Series Available Parts

    This product is available fully compliant to the RoHS EU directive 2011/65/EU.
