Isabellenhütte PBV-Z Series

Isabellenhütte PBV-Z Series
The PBV-Z through-hole resistor series from Isabellenhütte offers 4-terminal connection technology for current sensing applications. Designed for easy heat sink mounting, The Kelvin connections on this resistor allow high precision measurements even with resistance values are available 0.003Ω, 0.005Ω, 0.01Ω, 0.1Ω, 1Ω and 10Ω available. The PBV-Z series from Isabellenhütte has a pulse power rating of 1J for 10ms capabilities and has an extremely low TCR.
  • 4-terminal through-hole space saving design resistor
  • Designed for easy heat sink mounting
  • Resistance values available 0.003Ω, 0.005Ω, 0.01Ω, 0.1Ω, 1Ω and 10Ω
  • 10W power rating on a suitable heat sink (3W power rating in free air)
  • Applicable temperature range from -55°C to +125°C
  • Tolerance options available ±0.1%, ±0.5% and ±1% (depending on the resistance values required)
  • Extremely low TCR of ≤10 ppm/K (between +20°C and +60°C)
  • Pulse power rating 1J for 10ms

Typical applications for the PBV-Z series include:

  • Reference resistors
  • Current sensors
  • Current measuring equipment

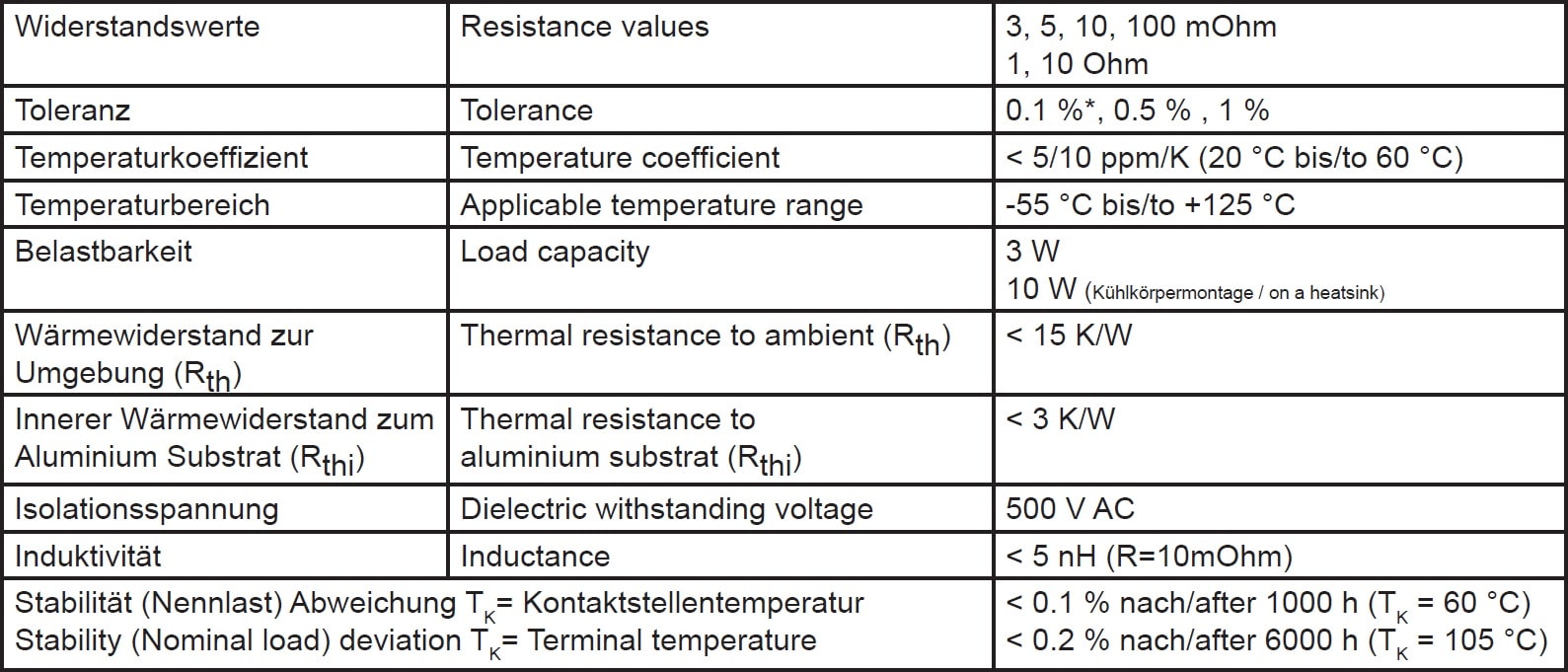

The below table gives an overview of the specifications for the Isabellenhütte PBV-Z series:

Isabellenhütte PBV-Z Specifications

* Upon request

Specifications
Additional Features
  • 4-terminal through-hole resistor
  • Designed for easy heat sink mounting
  • Pulse power rating 1J for 10ms
  • Excellent long term stability
  • Precision low ohm resistor
  • Applicable temperature range -55°C to +125°C
  • Extremly low TC-value
  • Up to 10W permanent power
Maximum Power Rating
  • 10W (on a heat sink)
  • 3W (in free air)
Maximum Resistance
  • 10Ω
Minimum Resistance
  • 0.003Ω
TCR
  • ≤10 ppm/K (between +20°C and +60°C)
Tolerance
  • ±0.1%
  • ±0.5%
  • ±1.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte PBV-Z through-hole 4-terminal resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

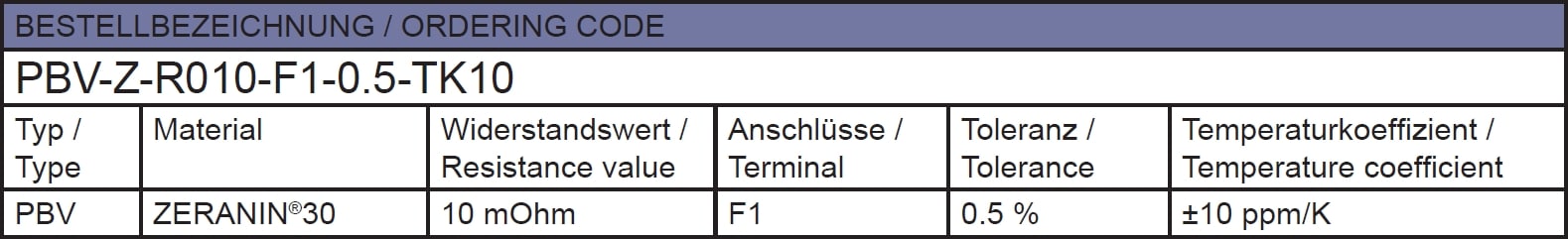

Below is an example of the part number break down for the PBV-Z resistor series:

PBV-Z Part Number Example

RoHS Compliance

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
