The PLU resistor series from Isabellenhütte, offers 4-terminals with gold plated contact surface with Kelvin connection technology. Developed with chip size of 2439, resistance value available 0.001Ω, with a 5W power rating and TCR of <50 ppm/K (between +20°C and +60°C). The PLU series from Isabellenhütte also offers hybrid assembly: bonding and gluing.
  • 4-terminals with gold plated contact surface-mount precision resistor
  • 2439 chip size
  • Continuous current load up to 70A
  • Resistance value of 0.001Ω
  • TCR value <50 ppm/K depending on the bonding position (from +20°C to +60°C)
  • Applicable temperature range from -65°C to +170°C
  • Tolerance value ±5.0% (depending on the bonding position)
  • Excellent long term stability
  • Power rating 5W
  • Hybrid assembly: bonding and gluing
  • Resistor with Kelvin connections
  • AEC-Q200 qualified

Typical applications for the PLU series include:

  • Current sensor for power hybrid applications
  • Frequency converters and power supplies
  • High density integration

The below table gives an overview of the specifications for the Isabellenhütte PLU series:

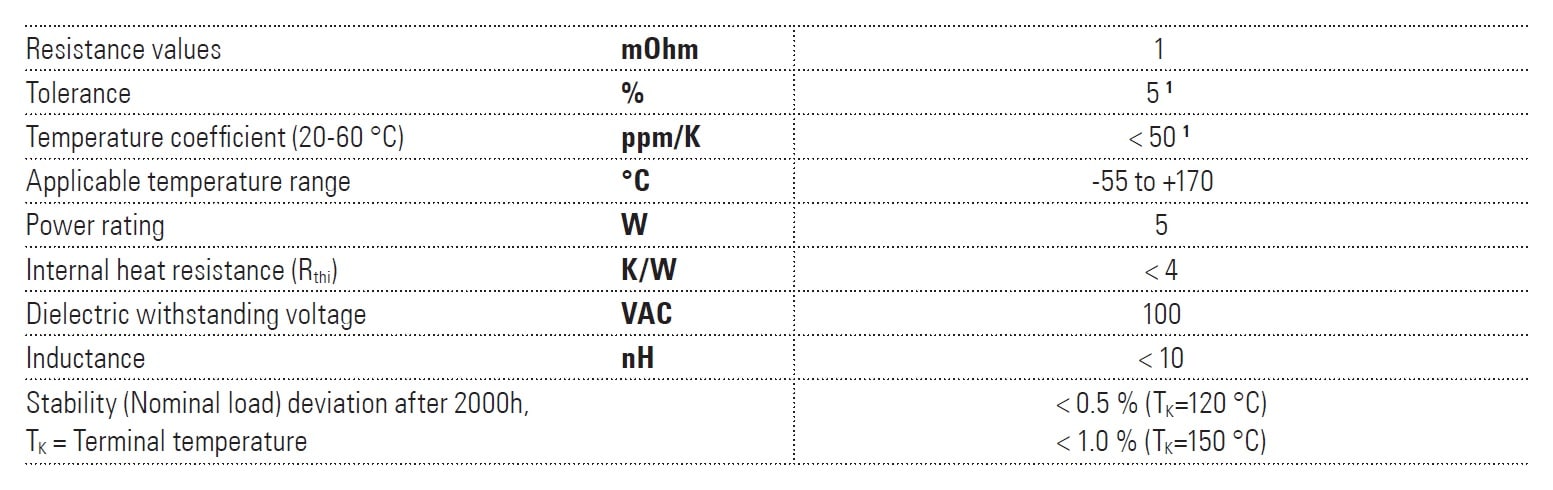

Isabellenhütte PLU Specifications

¹ Exact value depends on bonding position

Specifications
Additional Features
  • 2439 chip size
  • 4-terminal surface-mount resistor
  • Reverse side covered with gold flash
  • Applicable temperature range -55°C to +170°C
  • Hybrid assembly: bonding and gluing
  • Continuous current load up to 70A
  • Resistor with Kelvin connection
  • AEC-Q200 qualifield
Maximum Power Rating
  • 5W
Maximum Resistance
  • 0.001Ω
Minimum Resistance
  • 0.001Ω
TCR
  • <50 ppm/K (between +20°C and +60°C)
Tolerance
  • ±5.0% (exact value depends on bonding position)

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte PLU hybrid bondable 4-terminal resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

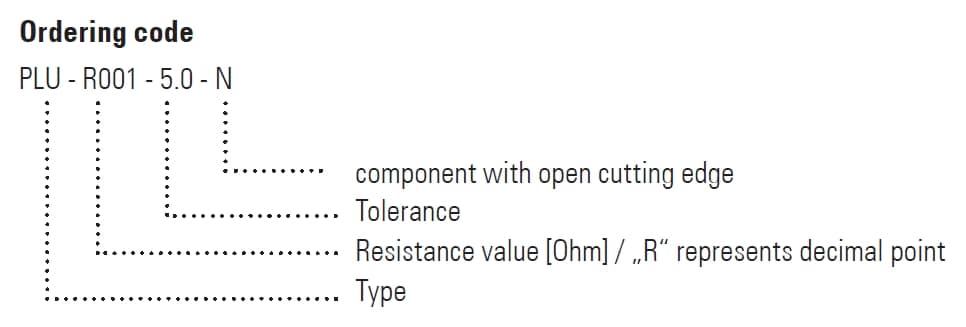

Below is an example of the part number break down for the PLU resistor series:
