Isabellenhütte PMH Series

Isabellenhütte PMH Series
The PMH series from Isabellenhütte is a bondable high power resistor, with gold plated contact surface with 2 and 4-terminal surface-mount Kelvin connection technology. Developed with chip size of 2512, selective resistance value range of between 0.005Ω and 0.4Ω, with a 5W permanent power rating and TCR of <30 ppm/K (between +20°C and +60°C). The PMH series from Isabellenhütte also is with reverse side covered with gold flash
  • Gold plated bondable high power resistor
  • 2 and 4-terminal surface-mount precision resistor
  • 2512 chip size
  • Constant current up to 32A (0.005Ω)
  • Selective resistance value range between 0.005Ω and 0.4Ω
  • TCR value <30 ppm/K (from +20°C to +60°C)
  • Applicable temperature range from -55°C to +170°C
  • Tolerance values available ±0.5%, ±1.0% and ±5.0%
  • Mounting: Reflow soldering and epoxy attachment on substrate
  • Power rating 5W
  • Resistor with Kelvin connection
  • AEC-Q200 qualified

Typical applications for the PMH series include:

  • Current sensor for power hybrid applications
  • Frequency converters and power modules

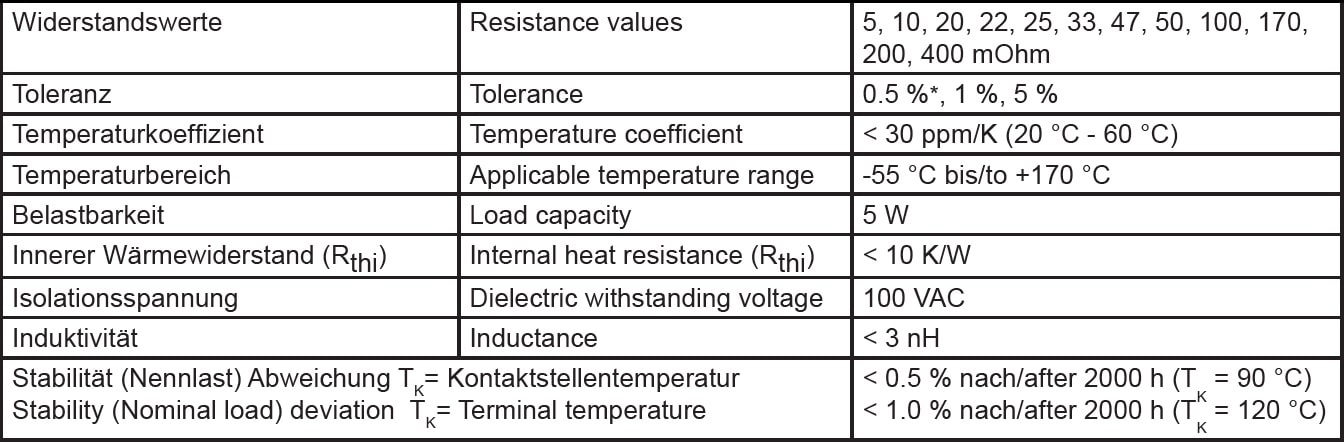

The below table gives an overview of the specifications for the Isabellenhütte PMH series:

Isabellenhütte PMH Specifications

* Upon request

Specifications
Additional Features
  • 2512 chip size
  • Gold plated bondable high power resistor
  • 2 and 4-terminal surface-mount resistor
  • Applicable temperature range -55°C to +170°C
  • Mounting: Reflow soldering and epoxy attachment on substrate
  • Constant current up to 32A (0.005Ω)
  • Resistor with Kelvin connection
  • Maximum solder temperature up to 280°C for 30s or 250°C for 5m
Maximum Power Rating
  • 5W
Maximum Resistance
  • 0.4Ω
Minimum Resistance
  • 0.005Ω
TCR
  • <30 ppm/K (between +20°C and +60°C)
Tolerance
  • ±0.5%
  • ±1.0%
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte PMH surface-mount 4-terminal resistor with Au-plated bond plates series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

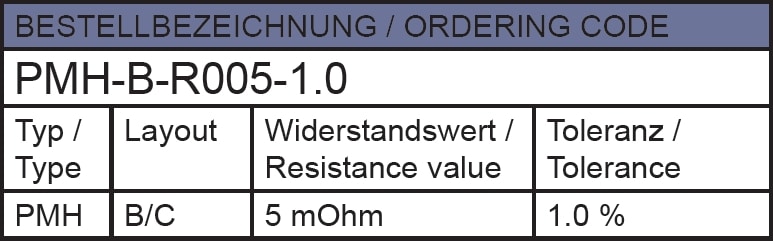

Below is an example of the part number break down for the PMH resistor series:

PMH Part Number Example

RoHS Compliance

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
