The SMK-R000 surface-mount series from Isabellenhütte offers a zero ohm 2-terminal power bridge / jumper with a 50A high current, and allows a track width of up to 1mm to run underneath. The Isabellenhütte SMK-R000 has a resistance value of less than 0.2mΩ with tin plated cooper terminals and enamel top and bottom
  • 2-terminal surface-mount power bridge / jumper
  • Constant current up to 50A (DC Current)
  • Resistance value of less than 200µΩ
  • Tin plated terminations for easy soldering
  • Permanent power of 0.5W (at +120°C)
  • Applicable temperature range of -65°C to +170°C
  • 1206 chip size

Typical applications for the SMK-R000 series include:

  • Power bridge / jumper
  • Multiple usage of the layout

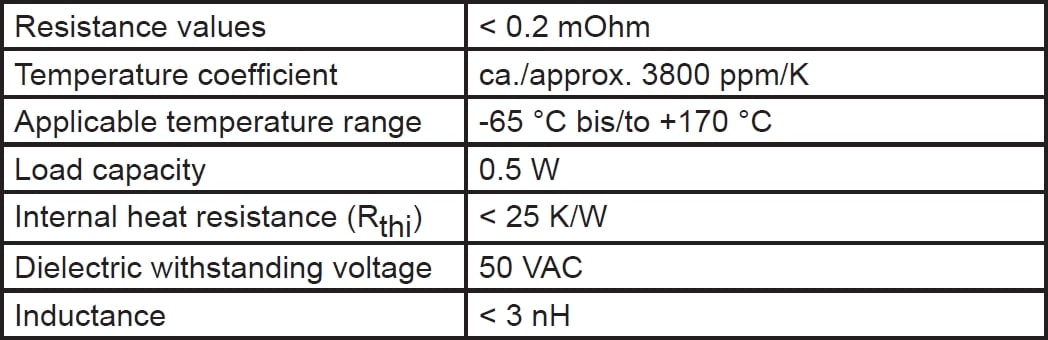

The below table gives an overview of the specifications for the Isabellenhütte SMK-R000 series:

Isabellenhütte SMK Specifications
Specifications
Additional Features
  • 1206 chip size
  • 2-terminal surface-mount resistor
  • Power bridge / jumper
  • Constant current up to 50A (DC current)
  • Standard pad size
  • Applicable temperature range -65°C to +170°C
  • Mounting: Reflow and IR soldering
Inductance
  • <3nH
Maximum Power Rating
  • 0.5W (at +120°C)
Maximum Resistance
  • <200µΩ
TCR
  • approx. 3800 ppm/K
