The SMP surface-mount current sensing resistor series from Isabellenhütte offers the designer higher power ratings and low internal temperature rises due to the larger pad termination sizes. The Manganin® alloy resistance element has a resistance range of 0.005Ω to 1Ω, TC of below 50 ppm/K over the temperature range of +20°C to +60°C and offers excellent long term stability. The SMP model offers these capabilities in a 2010 chip size.

  • 2-terminal surface-mount resistor with large solder pads
  • Resistance range available 0.005Ω to 1Ω
  • Power rating 3W (at +70°C)
  • Constant current up to 24A (0.005Ω)
  • TCR of <50 ppm/K (between +20°C and +60°C)
  • Applicable temperature range -65°C to +170°C
  • Tolerance options available ±0.5% and ±1% (depending on the resistance values required)
  • 2010 chip size
  • AEC-Q200 qualified

Typical applications for the SMP series include:

  • Current sensor for power hybrid applications
  • Control systems for the automotive market
  • Power modules
  • Frequency converters
  • Switch mode power supplies

The below table gives an overview of the specifications for Isabellenhütte SMP series

Isabellenhütte SMP Specifications

* Please contact us or see ordering information tab

Specifications
Additional Features
  • 2-terminal surface-mount resistor
  • Constant current of up to 24A (0.005Ω)
  • Excellent long-term stability
  • Applicable temperature range -65°C to +170°C
  • Mounting by reflow and IR soldering
  • High pulse power rating
  • AEC-Q200 qualified
Maximum Power Rating
  • 3W(at +70°C)
  • 2W(at +110°C)
Maximum Resistance
Minimum Resistance 0.005Ω
Package/Size 2010
TCR <50 ppm/K (between +20°C and +60°C)
Tolerance
  • ±0.5%
  • ±1.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Isabellenhütte SMP surface-mount 2-terminal precision resistor series datasheet
PDF Document Isabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

The SMP resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

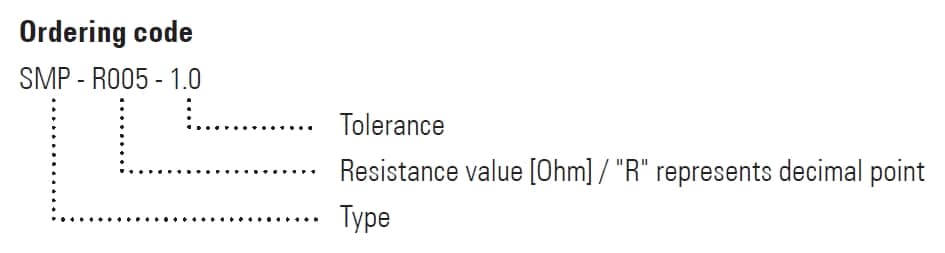

Below is an example of the part number break down for the SMP resistor series:

SMP Part Number Example

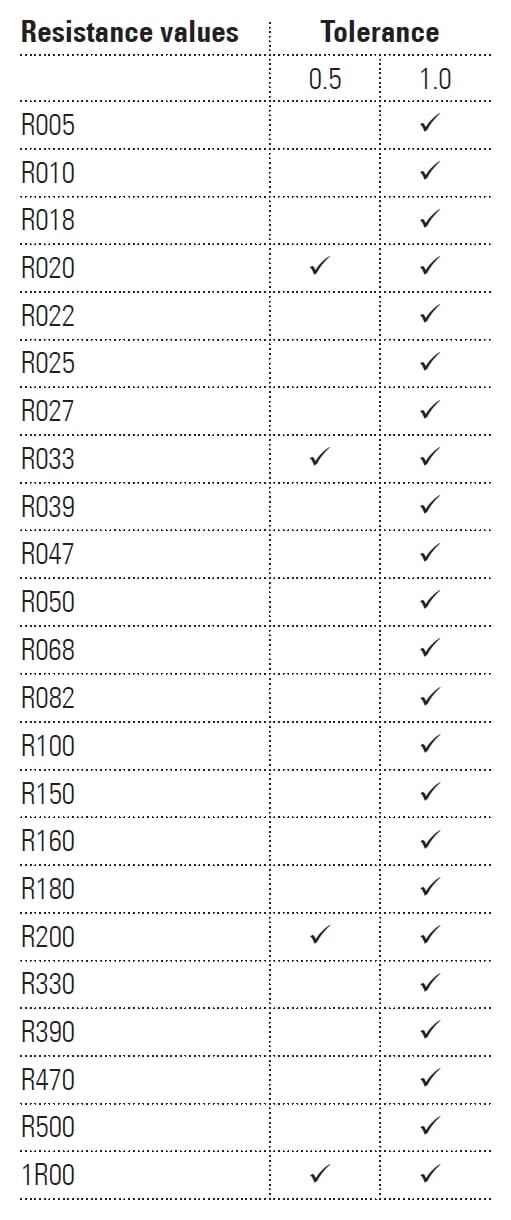

The following table highlights the standard resistance values and tolerances available for the SMP resistor series:

SMP Series Available Parts

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
