The SMT surface-mount current sensing resistor series from Isabellenhütte offers the designer higher power ratings and low internal temperature rises due to the larger pad termination sizes. The Manganin® alloy resistance element has a resistance range of 0.004Ω to 4Ω, TCR of below 50ppm/K over the temperature range (between +20°C and +60°C) for resistance values of 0.010Ω or more and offers excellent long term stability. The SMT model offers these capabilities in a 2817 chip size.
  • 2-terminal surface-mount resistor with large solder pads
  • Resistance range available 0.004Ω to 4Ω
  • Power rating 5W (at +105°C)
  • Constant current up to 35A (0.004Ω)
  • TCR of <50 ppm/K for values ≥0.010Ω and <100 ppm/K for values <0.010Ω (between +20°C and +60°C)
  • Applicable temperature range -55°C to +170°C
  • Tolerance options available ±0.5%, ±1%, ±2% and ±5% (depending on the resistance values required)
  • 2817 chip size
  • AEC-Q200 qualified

Typical applications for the SMT series include:

  • Current sensor for power hybrid applications
  • Control systems for the automotive market
  • Power modules
  • Frequency converters
  • Switch mode power supplies

The below table gives an overview of the specifications for Isabellenhütte SMT series:

Isabellenhütte SMT Specifications

* Please contact us or see ordering information tab

Specifications
Additional Features
  • 2817 chip size
  • 2-terminal surface-mount resistor
  • Constant current up to 35A (0.004Ω)
  • AEC -Q200 qualified
  • Excellent long-term stability
  • Applicable temperature range -55°C to +170°C
  • Mounting: Reflow and IR soldering
  • High pulse power rating
Maximum Power Rating
  • 7W for <1Ω and 5W for ≥1Ω(at +70°C)
  • 5W for <1Ω and 3W for ≥1Ω(at + 105°C)
Maximum Resistance
Minimum Resistance
  • 0.004Ω
TCR
  • <50 ppm/K for ≥0.01 Ω(between +20°C and +60°C);
  • <100 ppm /K for <10 0.01ω (between +20°C and +60°C)
Tolerance
  • ±0.5%
  • ±1.0%
  • ±2.0%
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte SMT surface-mount 2-terminal precision resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

The SMT resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

Below is an example of the part number break down for the SMT resistor series:

SMT Part Number Example

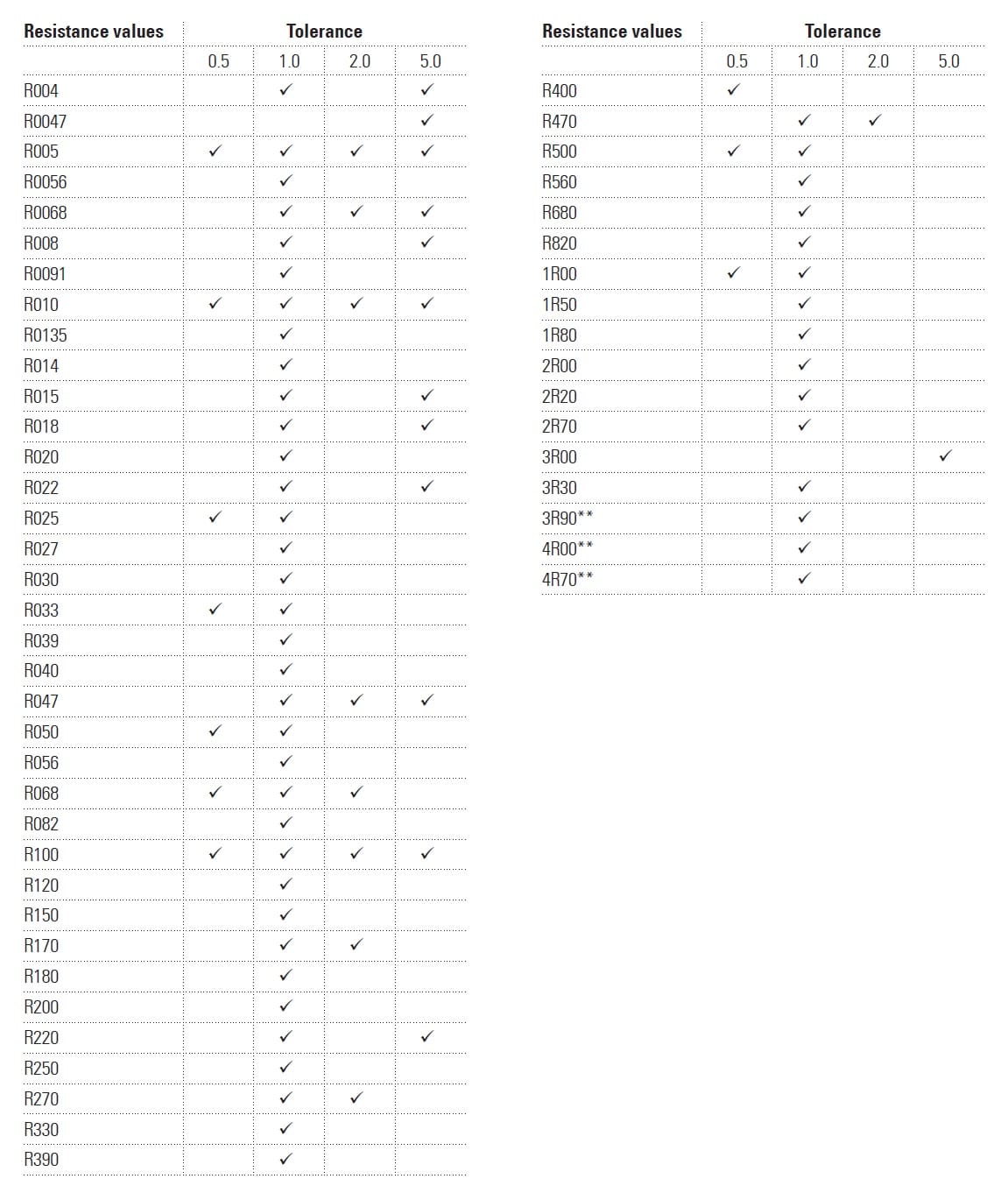

The following table highlights the standard resistance values and tolerances available for the SMT resistor series:

SMT Series Available Parts

RoHS Compliance

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
