Isabellenhütte SMV-PW Series

Isabellenhütte SMV-PW Series

The SMV-PW 4-terminal surface-mount resistor series from Isabellenhütte offers SnPb tinned connections suitable for aviation and aerospace applications. Developed with being ESCC 4001/028 qualified, temperature range of -55°C to +140°C, with a 3W permanent power at 80°C and selective resistance values available are between 0.0033Ω and 1Ω. The SMV-PW series from Isabellenhütte offers high pulse power rating and are suitable for reflow, infrared and wave soldering.

  • 4-Terminal precision resistor with 4723 chip size
  • Detail specification ESCC 4001/028 qualified
  • Continuous current load up to 30A (0.0033Ω)
  • Select resistance values between 0.0033Ω and 1Ω
  • TCR value from ≤50 ppm/K for ≤0.001Ω and ≤30 ppm/K for >0.001Ω (between +20°C and +60°C)
  • High application temperature range from -55°C to +140°C
  • Tolerance ±1.0% and ±5.0% (depending on the resistance value required)
  • High pulse power rating
  • Permanent power 3W (at +80°C)
  • Reflow, infrared and wave soldering
  • SnPb tinned contacts

Typical applications for the SMV-PW series include:

  • Space
  • Military
  • Aerospace

The below table gives an overview of the specifications for the Isabellenhütte SMV-PW series:

Isabellenhütte SMV-PW Specifications

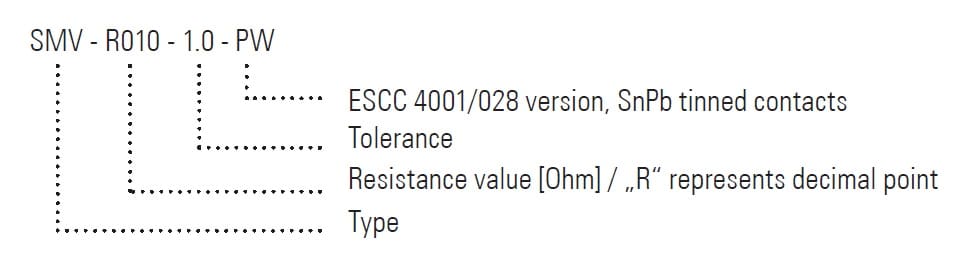

* Please contact us for available parts or see the ordering information tab

Specifications
Additional Features
  • 4-terminal surface-mount resistor
  • Suitable for aviation and aerospace applications
  • ESCC 4001/028 qualified
  • SnPb tinned contacts
  • Applicable temperature range of -55°C to +140°C
  • Continuous current load up to 30A (0.0033Ω)
  • Reflow, infrared and wave soldering
  • High pulse power rating
Maximum Power Rating3W
Maximum Resistance
Minimum Resistance0.0033Ω
Package/Size4723
TCR
  • ≤50 ppm/K for ≤0.001Ω (between +20°C and +60°C)
  • ≤30 ppm/K for >0.001Ω (between +20°C and +60°C)
Tolerance
  • ±0.5%
  • ±1.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte SMV-PW ESCC approved surface-mount 4-terminal precision resistor series datasheet
PDF DocumentIsabellenhütte ESCC approved parts for Aviation and Aerospace applications flyer
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

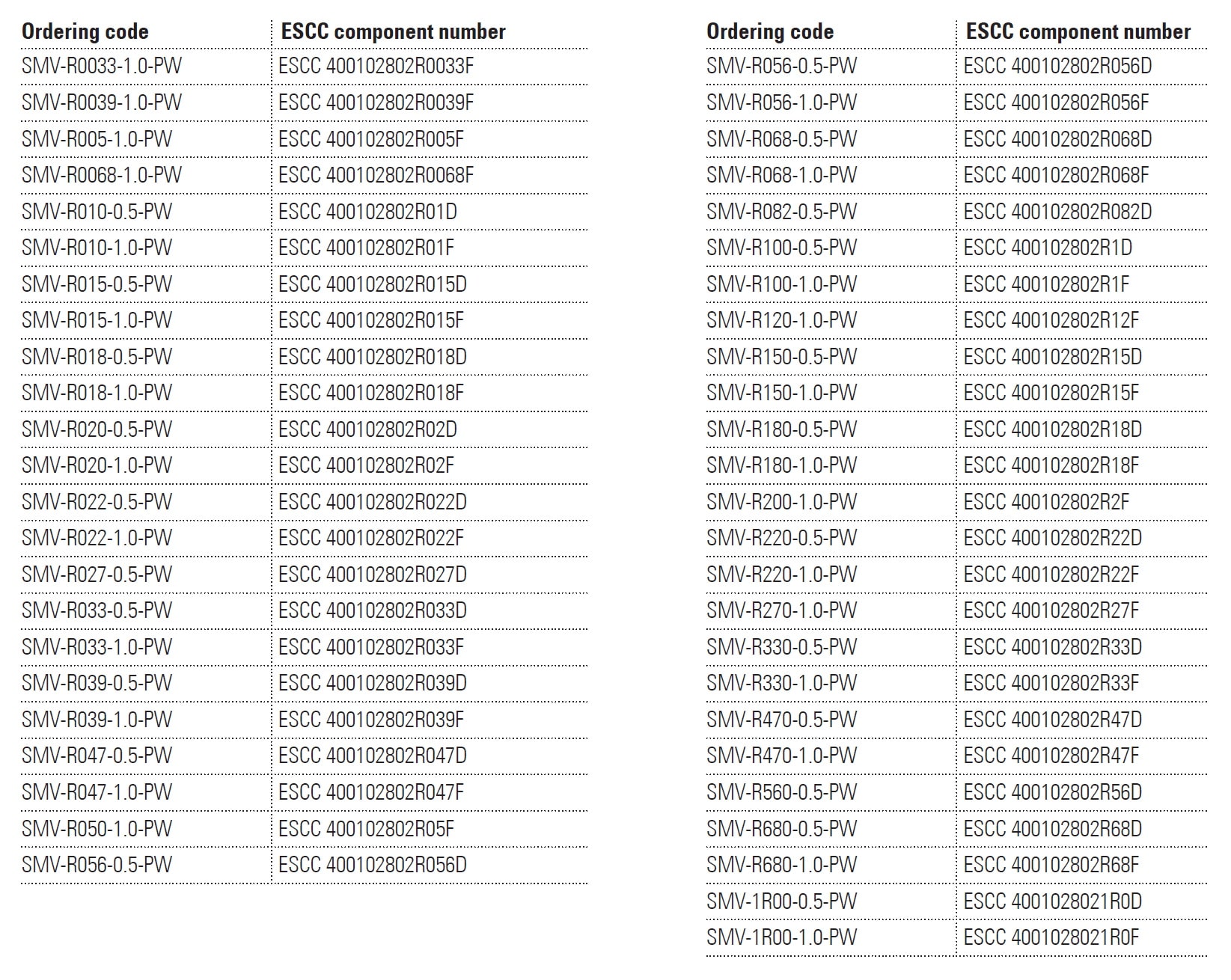

The following table highlights the standard parts (resistance values and tolerances) available for the SMV-PW space approved resistor series:

SMV-PW Series Available Parts

This product is not compliant to the RoHS EU directive 2011/65/EU.
