The VMI-R000 series from Isabellenhütte offers a 2-terminal surface-mount power bridge / jumper with a constant current up to 35A (DC-current). Developed with a small chip size of 0805 with a resistance value of 0.0002Ω, with a 0.25W power rating at +170°C. The VMI-R000-U series from Isabellenhütte offers a high pulse power rating and inductance rating of <1nH.
  • 2-terminal power bridge / jumper with standard solder pads
  • 0805 chip size
  • Constant current of up to 35A (DC-current)
  • Resistance value of <200µΩ
  • Applicable temperature range from -65°C to +170°C
  • Power rating of 0.25W (at +170°C)
  • Mounting: Reflow and IR soldering
  • High pulse power rating

Typical applications for the VMI-R000 series include:

  • Power bridge / jumper
  • Multiple usage of the layout

The below table gives an overview of the specifications for the Isabellenhütte VMI-R000 series:

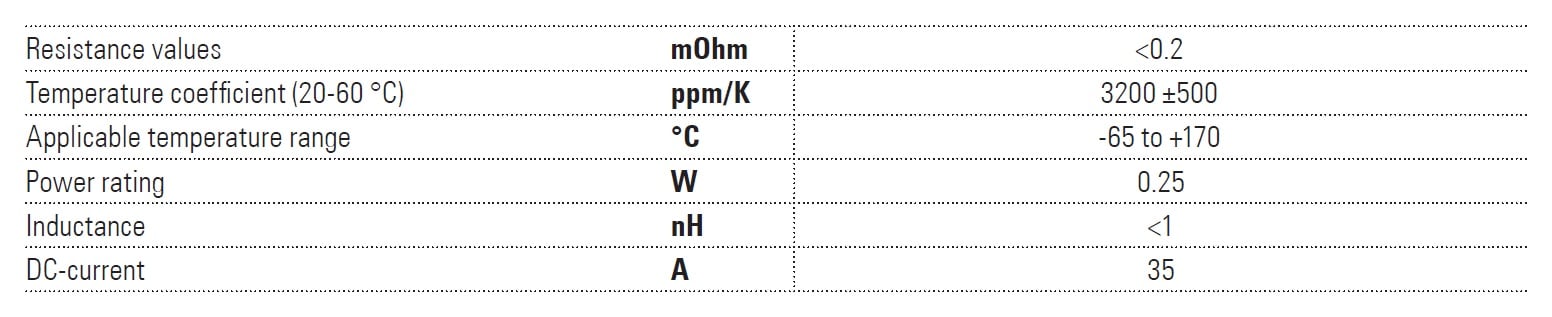

Isabellenhütte VMI-R000 Specifications
Specifications
Additional Features
  • 0805 chip size
  • 2-terminal surface-mount resistor
  • Power bridge / jumper
  • Constant current up to 35A (DC current)
  • Standard pad size
  • Applicable temperature range -65°C to +170°C
  • Mounting: Reflow and IR soldering
  • High pulse rating
Inductance
  • <1 nH
Maximum Power Rating
  • 0.25W at +170°C
Maximum Resistance
  • <200µΩ
TCR
  • 3200 ±500 ppm/K
