The VMK-NA gold plated resistor series from Isabellenhütte, offers 2-terminal surface-mount connection technology with 2 pad solder layout. Developed with a small chip size of 1206, resistance value of 0.1Ω (further values available on request), a 1W power rating and TCR of <20 ppm/K (between +20°C and +60°C) . The VMK-NA series from Isabellenhütte offers excellent long term stability, high pulse power rating and is AEC-Q200 qualified.

  • Gold plated 2-terminal surface-mount precision resistor
  • Suitable for 2 pad solder layout
  • 1206 chip size
  • Constant current of up to 3A (0.1Ω)
  • Resistance value of 0.1Ω (further values are available on request)
  • TCR value <20 ppm/K (from +20°C to +60°C)
  • Applicable temperature range from -65°C to +170°C
  • Tolerance of ±1.0% (further tolerances available on request)
  • Excellent long term stability
  • Power rating of 1W
  • Mounting: conductive adhesive / soldering
  • High pulse power rating

Typical applications for the VMK-NA series include:

  • Control systems for the automotive market
  • Current sensor for power hybrid applications
  • Frequency converters, switch mode power supplies and power modules

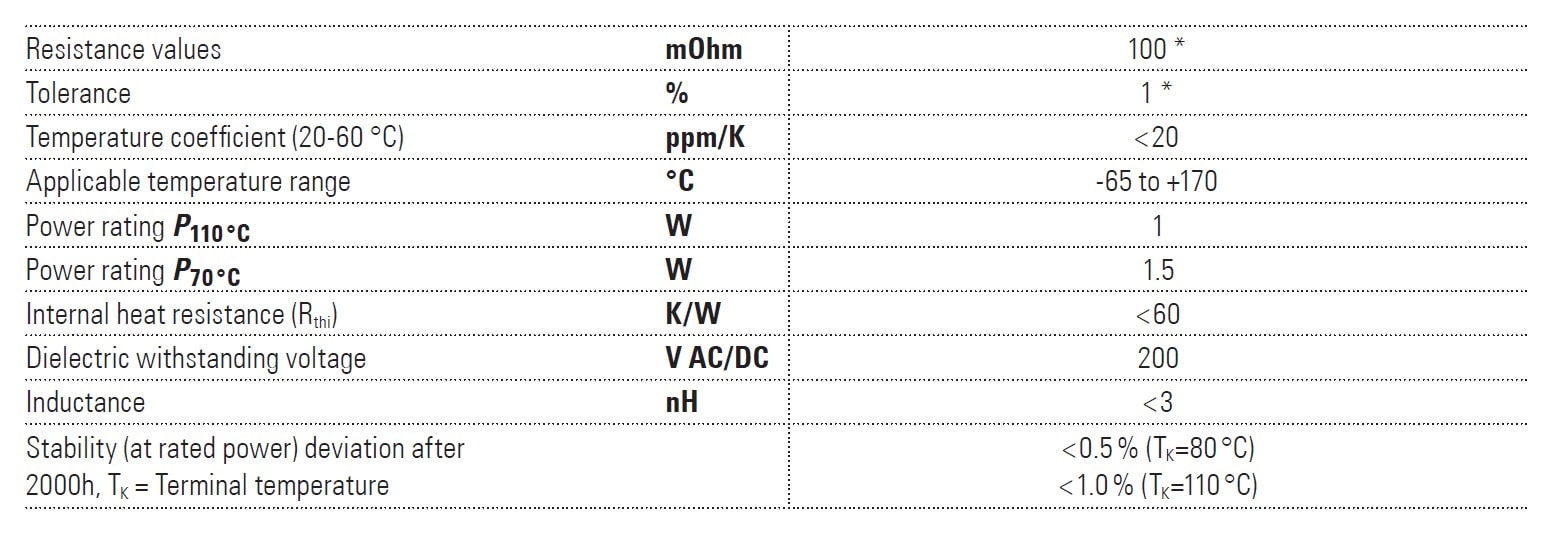

The below table gives an overview of the specifications for the Isabellenhütte VMK-NA series:

Isabellenhütte VMK-NA Specifications

* Further values and tolerance available on request

Specifications
Additional Features
  • Gold plated 2-terminal surface-mount resistor
  • Applicable temperature range -65°C to +170°C
  • Excellent long term stability
  • Constant current up to 3A (0.1Ω)
  • 2 pad mounting layout by conductive adhesive / soldering
  • High pulse power rating
Maximum Power Rating 1W
Maximum Resistance 0.1Ω
Minimum Resistance 0.1Ω
Package/Size 1206
TCR <20 ppm/K (between +20°C and +60°C)
Tolerance ±1.0% (further tolerances available on request)

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Isabellenhütte VMK-NA Au-plated surface-mount precision resistor series datasheet
PDF Document Isabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

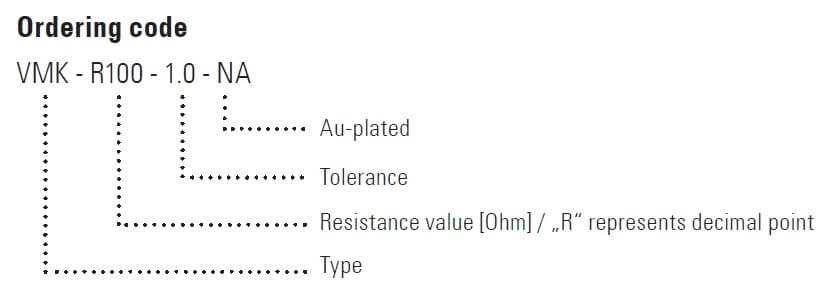

Below is an example of the part number break down for the VMK-NA resistor series:

VMK-NA Part Number Example

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
