The VMK resistor series from Isabellenhütte offers 2-terminal surface-mount connection technology with 2 pad solder layout. Developed with a small chip size of 1206, selective resistance value range available between 0.01Ω and 0.47Ω, with a 1W power rating at +110°C. The VMK series from Isabellenhütte offers excellent long term stability and high pulse power rating.
  • 2-terminal surface-mount precision resistor
  • 1206 chip size
  • Constant current up to 10A (0.01Ω)
  • Selective resistance range between 0.01Ω and 0.47Ω
  • TCR value <20 ppm/K (from +20°C to +60°C)
  • Applicable temperature range from -65°C to +170°C
  • Tolerance ±1.0%, ±2.0% and ±5.0%
  • Excellent long term stability
  • Power rating 1.5W (at +70°C) and 1W (at +110°C)
  • Mounting: Reflow and IR soldering
  • AEC-Q200 qualified

Typical applications for the VMK series include:

  • Control systems for the automotive market
  • Current sensor for power hybrid applications
  • Frequency converters, switch mode power supplies and power modules

The below table gives an overview of the specifications for the Isabellenhütte VMK series:

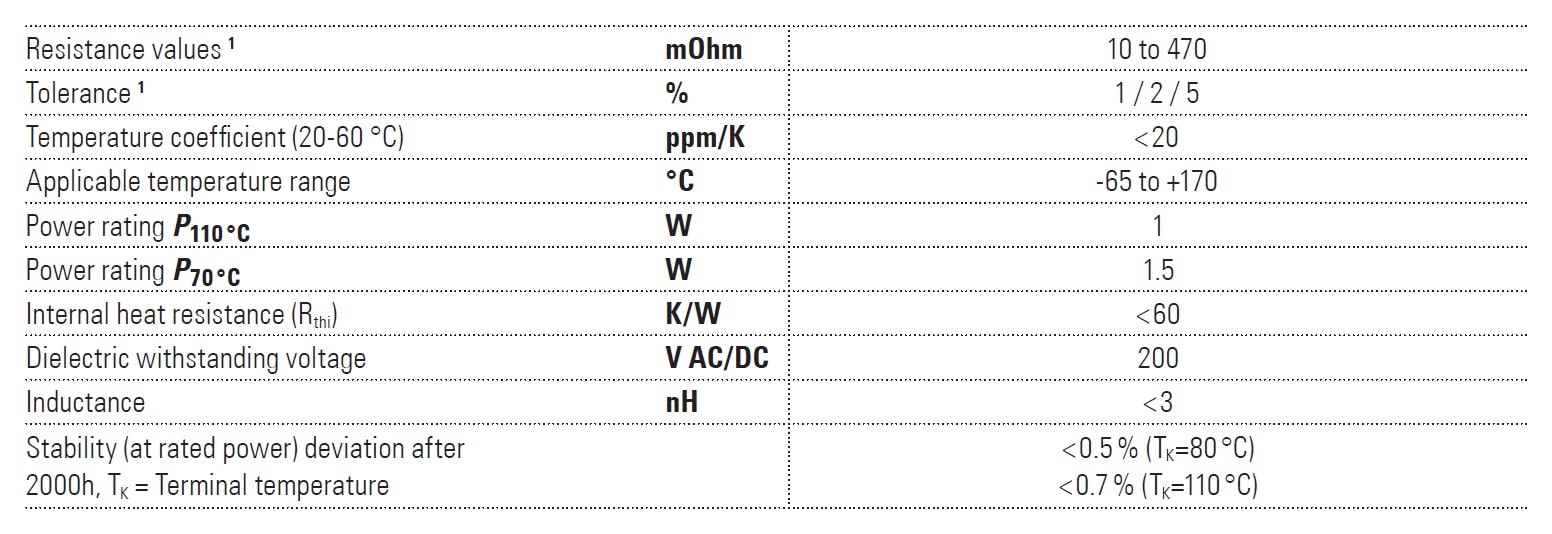

Isabellenhütte VMK Specifications

¹ Please contact us or see ordering information tab for standard values and tolerances

Specifications
Additional Features2-terminal surface-mount resistor with an applicable temperature range -65°C to +170°C and excellent long term stability. Constant current up to 10A (0.01Ω), mounting by Reflow and IR soldering, high pulse power rating and AEC-Q200 qualifield.
Maximum Power Rating1.5W (at 70°C) )
1W (at +110°C)
Maximum Resistance0.47Ω
Minimum Resistance0.01Ω
Package/Size1206
TCR<20 ppm/K (between +20°C and +60°C)
Tolerance±1.0%
±2.0%
±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte VMK surface-mount precision resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

The VMK resistor series is available with various options including standard resistance values and tolerances. The information below gives an example of the part numbering system used for these resistors and the standard options available.

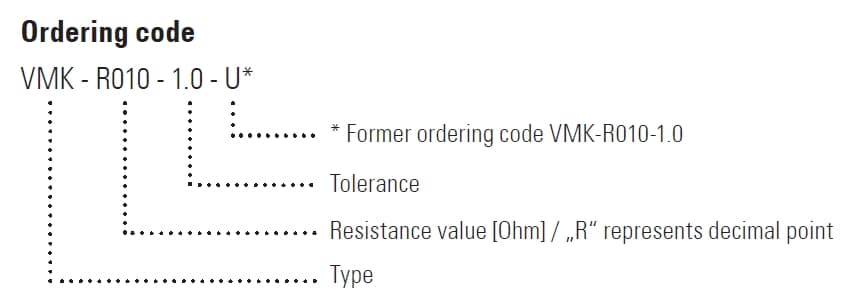

Below is an example of the part number break down for the VMK resistor series:

VMK Part Number Example





The following table highlights the standard resistance values and tolerances available for the VMK resistor series:

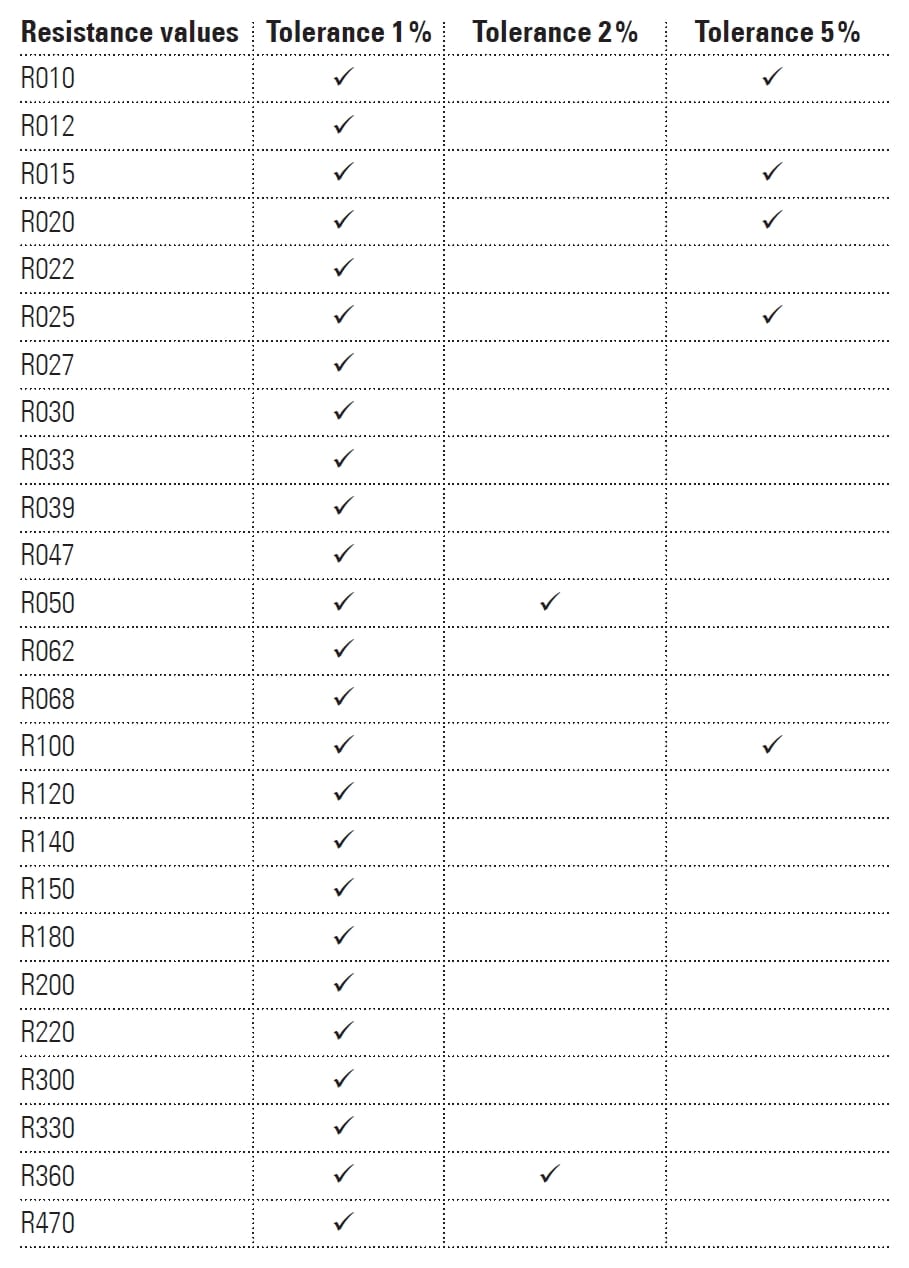

VMK Series Available Parts

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
