The VMP-NA gold plated resistor series from Isabellenhütte, offers 2-terminal surface-mount connection technology with 4 pad solder layout. Developed with standard chip size of 2010, resistance values available 0.025Ω and 0.08Ω, with a 2W power rating at +90°C and TCR of <20 ppm/K (between +20°C and +60°C) . The VMP-NA series from Isabellenhütte also offers excellent long term stability and high pulse power rating.
  • Gold plated 2-terminal surface-mount precision resistor
  • Suitable for 4 pad solder layout
  • 2010 chip size
  • Constant current up to 9A (0.025Ω)
  • Resistance values available 0.025Ω and 0.08Ω
  • TCR value <20 ppm/K (from +20°C to +60°C)
  • Applicable temperature range from -55°C to +170°C
  • Tolerance ±1.0% and ±5.0%
  • Excellent long term stability
  • Permannet power rating 2W (at +90°C)
  • Mounting: conductive adhesive and soldering
  • High pulse power rating

Typical applications for the VMP series include:

  • Control systems for the automotive market
  • Current sensor for power hybrid applications
  • Frequency converters, switch mode power supplies and power modules

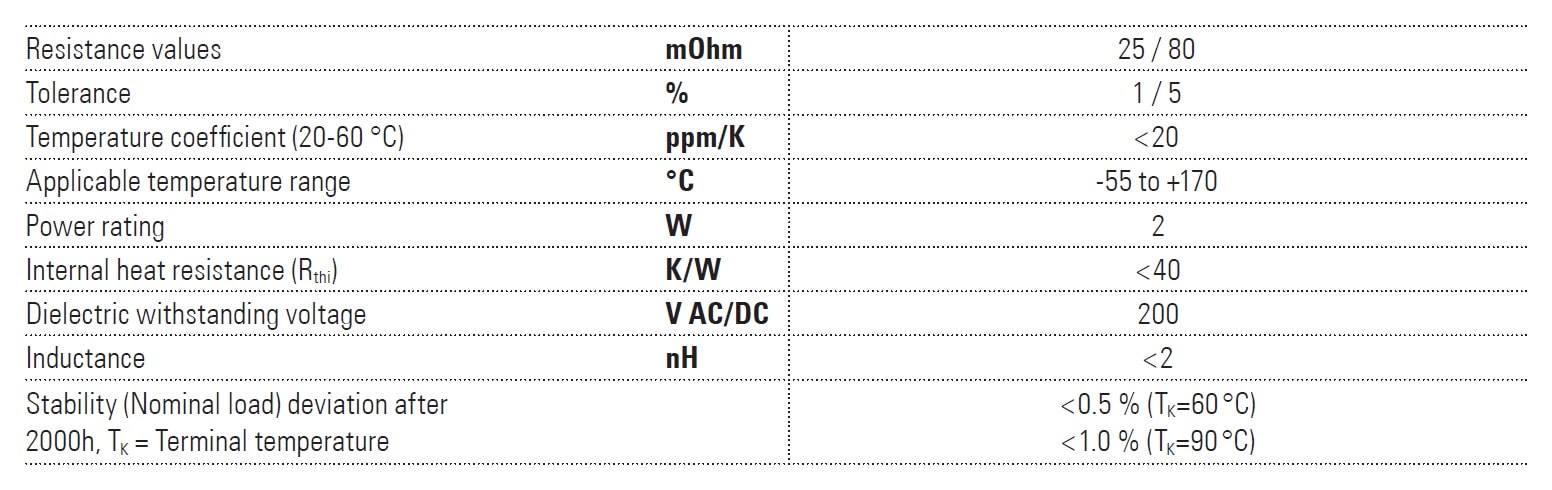

The below table gives an overview of the specifications for the Isabellenhütte VMP-NA series:

Isabellenhütte VMP-NA Specifications
Specifications
Additional Features
  • 2010 chip size
  • Gold plated 2-terminal surface-mount resistor
  • Suitable for 4 pad solder layout
  • Applicable temperature range -55°C to +170°C
  • Excellent long term stability
  • Contstant current up to 9A (0.025Ω)
  • Mounting: conductive adhesive and soldering
  • High pulse power rating
Maximum Power Rating
  • 2W (at +90°C)
Maximum Resistance
  • 0.08Ω
Minimum Resistance
  • 0.025Ω
TCR
  • <20 ppm/K (between +20°C and +60°C)
Tolerance
  • ±1.0%
  • ±5.0%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentIsabellenhütte VMP-NA Au-plated surface-mount precision resistor series datasheet
PDF DocumentIsabellenhütte low-ohmic and power resistors product catalogue







VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors
VIDEOS
Introduction to Isabellenhütte Heusler GmbH & Co. KG

Introduction video to Isabellenhütte, their business and product applications examples
Isabellenhütte precision and power resistors application overview

This video highlights customer applications and application options of Isabellenhütte's precision and power resistors

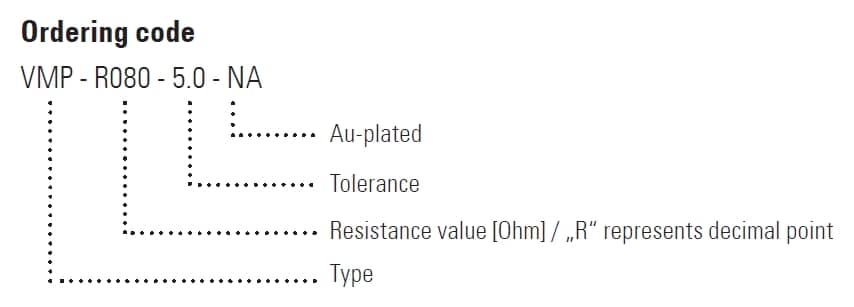

Below is an example of the part number break down for the VMP-NA resistor series:

VMP-NA Part Number Example

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
