Jackcon HI-K DC Capacitor Series

Jackcon HI-K DC Capacitor Series

The HI-K DC ceramic disc capacitor series from Jackcon offers cost effective solution in a compact radial through-hole package. These DC capacitors feature capacitance between 100pF and 47nF with an insulation resistance of 10000MΩ minimum at 100Vdc for 1 minute. They are available in a selection of dielectric materials – Y5P, Y5T, Y5U or Y5V, dissipation factor of either ≤2.5% or ≤5% (depending on the model), tolerances range from ±10% to +80% , TCs and other properties are available. The operating temperature of the HI-K DC capacitors is between -25°C and +85°C.

  • DC ceramic disc capacitors
  • Selection of dielectric materials offering range of properties – Y5P, Y5T, Y5U or Y5V
  • Available in capacitance ratings between 100pF and 47nF
  • Dissipation factor ≤2.5% (Y5P, Y5T and Y5U models) or ≤5% (Y5V models)
  • Tolerances of ±10%, ±20% or -20% to +80%
  • TCR ±10% max (Y5P), -30% max to +22%(y5T), -56% max to +22%(Y5U) or -80% max to +30%(Y5V)
  • Working voltage of 50Vdc to 20kVdc
  • Insulation resistance of at least 10,000MΩ min at 100Vdc over 1 minute
  • Operating temperature between -25°C and +85°C
  • Through-hole radial leaded capacitors

Typical applications for the Jackcon HI-K DC disc ceramic capacitor series include:

  • Coupling
  • By-passing

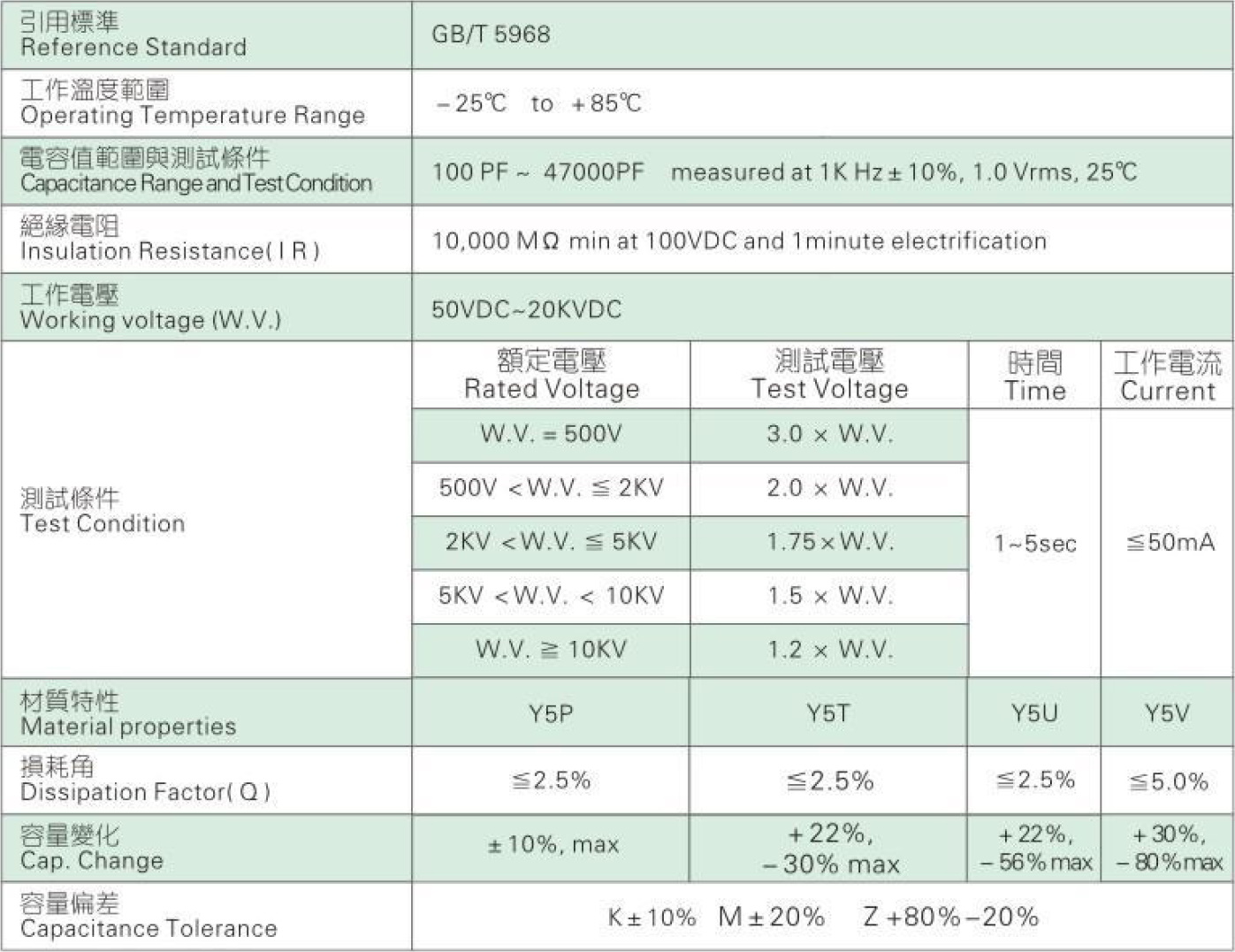

The below table gives the specifications overview for each capacitor model available within the HI-K DC capacitor series:

Jackcon HI-K Specifications

The reference test temperature is 25°C

Specifications
Additional Features
  • DC ceramic disc capacitor
  • Dissipation factor ≤2.5% (Y5P, Y5T and Y5U models) or ≤5% (Y5V models)
  • Insulation resistance of  10,000 MΩ min at 100Vdc over 1 minute
Capacitance 100pF to 47nF
Dielectric
  • Y5P
  • Y5T
  • Y5U
  • Y5V
Operating Temperature -55°C to +855°C
Package/Size Radial leaded through-hole
TCR Y5P
  • ±10% max
Y5T
  • -30% max to +22%
Y5U
  • -56% max to +22%
Y5V
  • -80% max to +30%
Tolerance
  • ±10%
  • ±20%
  • ±80% to -20%
Voltage Rating 50Vdc to 20kVdc

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Jackcon HI-K DC series ceramic disc capacitor datasheet
PDF Document Jackcon DC capacitor series dimension information
PDF Document Jackcon DC capacitor series taping specification
PDF Document Jackcon ceramic capacitors code construction
