NVE AB001-00E

NVE AB001-00E
The NVE AB001-00E analog magnetic sensor from NVE detect absolute magnetic fields, with a sensitivity range of 10Oe to 175Oe and sensitivity of 0.02% R/Oe to 0.03% R/Oe. NVE’s AB Series of analog Giant MagnetoResistive (GMR) sensors offer unique and unparalleled magnetic sensing capabilities, excellent temperature stability and low power consumption making them ideal for use in a wide variety of applications from rugged industrial and automotive position and speed sensors, to low-voltage, battery-powered sensors for use in hand-held instrumentation and implantable medical devices.
  • Analog magnetic sensor
  • Sensitivity range of 10Oe to 175Oe
  • Saturation of 250Oe
  • Sensitivity of 0.02% R/Oe to 0.03% R/Oe
  • Frequency response (DC) to 1MHz
  • Operating temperature range of −50°C to +125°C
  • Supply voltage +24V
  • MSOP8 package
  • Output at maximum field of 60mV/V
  • High magnetic field sensitivity
  • Power dissipation 0.5W
  • Maximum hysteresis 4%

The AB-Series sensors are differential devices, or gradiometers that reject common mode magnetic fields, making them ideal for high magnetic noise environments (e.g. motors or current-carrying wires). They have operation characteristics similar to the NVE AA-Series of sensors, but with the bipolar linear output characteristics of a differential sensor, which detects field gradients. The AB-Series is sensitive to a field gradient along the part axis. These GMR sensors are designed in a Wheatstone bridge configuration to provide temperature compensation

Typical applications for the AB series include:

  • Motion, speed and position sensing
  • Low-field sensing
  • Motor commutator sensors

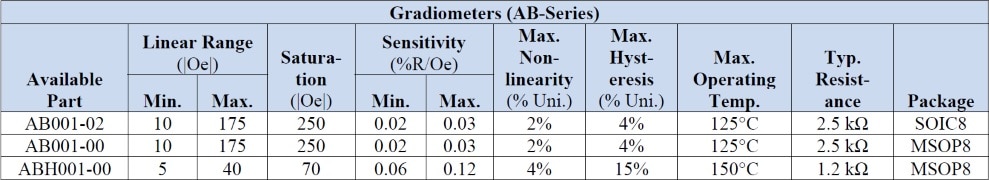

The below table gives the full specifications of the NVE AB magnetic sensor series including the AB001-00E:

NVE AB001-00E Specifications
Specifications
Additional Features
  • DC to 1MHz frequency response
  • Supply voltage +24V
  • MSOP8 package
  • Output at maximum field of 60mV/V
  • High magnetic field sensitivity
  • 0.5W power dissipation
  • 4% maximum Hysteresis
Linear Range
  • 10Oe to 75Oe
Operating Temperature
  • −50°C to +125°C
Saturation Field
  • 250Oe
Sensitivity
  • 0.02% R/Oe to 0.03% R/Oe
Typical Resistance
  • 2.5KΩ ±20%

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentNVE AA, AAH, AAK, AAL and AB GMR magnetic sensor series datasheet
PDF DocumentCurrent measurement using GMR sensors application note
PDF Document2-wire sensor interfaces application note
PDF DocumentFurther application notes for GMR sensors
PDF DocumentPackage, tape-and-reel and pad layout specifications
PDF DocumentNVE RoHS and enviromental compliance certificate
Case Studies
PDF DocumentAnalysis of a GMR-based Plethysmograph transducer and its utility for real-time Blood pressure measurement
PDF DocumentDual-stage nanopositioning for high speed scanning probe microscopy
PDF DocumentExtending the GMR current measurement range with a counteracting magnetic field
PDF DocumentA current sensor based on the GMR effect for design and potential smart grid applications
PDF DocumentFlexible GMR sensor array for magnetic flux leakage testing of steel track ropes
PDF DocumentWireless wearable controller for upper limb neuroprosthesis
PDF DocumentUsing GMR sensors with MSP430 scan interface
PDF DocumentSafety device uses GMR sensor
PDF DocumentNondestructive inspection for diffusion bonded components
PDF DocumentGMR sensors manage batteries







VIDEOS
GMR Analog Magnetic Field Sensor Demonstration

A demonstration of NVE's unique AA-Series analog magnetic field sensors. These GMR sensors are smaller, more sensitive, more precise, and lower power than other sensor types. In this demonstration, a GMR sensor drives an op-amp current follower to vary the brightness of an LED depending on the sensor output.
GMR Low-Field Magnetic Sensors

AAL002 GMR magnetic sensors can detect low fields and magnets at long distances. NVE demonstrate a sensor and amplifier connected to a buzzer. Most applications have magnet distances of millimeters or centimeters from the sensor, however, for this demonstration NVE needed a yardstick.
AAK001 High-Field GMR Magnetometer Sensor

NVE go into the lab to demonstrate the new AAK001 high-field GMR magnetometer sensor. They compare the new AAK001, their highest-field sensor, to their most sensitive sensor, the AAH002. The AAK is NVE's fourth family of GMR sensors, with low sensitivity to avoid saturating, and high saturation to provide a wide magnetic field range. It also has low hysteresis, low noise, full commercial temperature range, and an ultraminiature package.
VIDEOS
GMR Analog Magnetic Field Sensor Demonstration

A demonstration of NVE's unique AA-Series analog magnetic field sensors. These GMR sensors are smaller, more sensitive, more precise, and lower power than other sensor types. In this demonstration, a GMR sensor drives an op-amp current follower to vary the brightness of an LED depending on the sensor output.
GMR Low-Field Magnetic Sensors

AAL002 GMR magnetic sensors can detect low fields and magnets at long distances. NVE demonstrate a sensor and amplifier connected to a buzzer. Most applications have magnet distances of millimeters or centimeters from the sensor, however, for this demonstration NVE needed a yardstick.
AAK001 High-Field GMR Magnetometer Sensor

NVE go into the lab to demonstrate the new AAK001 high-field GMR magnetometer sensor. They compare the new AAK001, their highest-field sensor, to their most sensitive sensor, the AAH002. The AAK is NVE's fourth family of GMR sensors, with low sensitivity to avoid saturating, and high saturation to provide a wide magnetic field range. It also has low hysteresis, low noise, full commercial temperature range, and an ultraminiature package.

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
