Ohmcraft HVR39 Series

Ohmcraft HVR39 Series
The HVR39 high voltage through-hole resistor series from Ohmcraft® offers a voltage rating of 2kV, power rating of 0.5W and a resistance range from 100kΩ up to 1TΩ all in a small radial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film through-hole resistor. HVR39 resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (between 100kΩ and 100MΩ), TCR as low as ±25 ppm/°C (between 1MΩ and 100MΩ) and VCR down to 0.05 ppm/V.
  • High voltage radial leaded through-hole resistor
  • Available in any resistance between 100kΩ and 1TΩ
  • Utilises patented Micropen® precision printing technology
  • Ultra-high stability
  • Very low noise
  • Tolerances as low as ±0.1% (between 100kΩ and 100MΩ)
  • TCR as low as ±25 ppm/°C (from +25°C up to +75°C, between 1MΩ and 100MΩ)
  • Maximum voltage rating of 2kV
  • Maximum power rating of 0.5W
  • Working temperature from -55°C up to +150°C

Ohmcraft's HVR39 high voltage through-hole resistors are available with various options including the following lead styles:

  • T - 100% Tin spade leads (RoHS Compliant)
  • S - Tin Lead (Sn60Pb40) solder spade leads (Not RoHS Compliant)
  • W - 100% Tin 22AWG wire leads (RoHS Compliant)
  • B - Tin Lead (Sn60Pb40) solder 22AWG wire leads (Not RoHS Compliant)

As well as the above lead styles, the HVR39 series is available with various coatings including the following:

  • 2 - Bare resistor element
  • 3 - Powder Coating
  • 4 - Single surface epoxy

For custom configurations or requirements, please contact us.

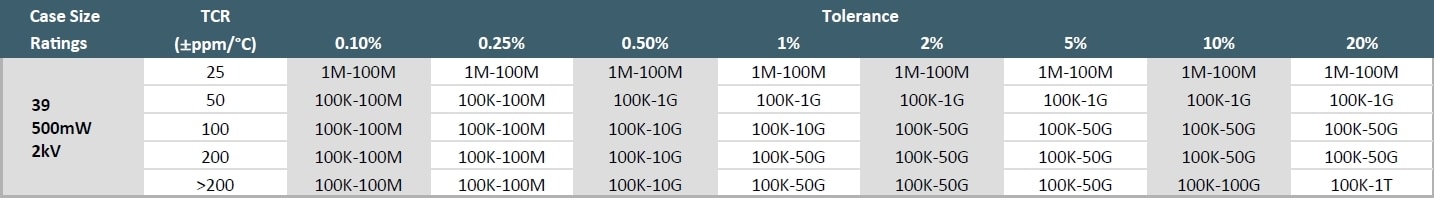

The below table gives the available specifications for the HVR39 series:

Ohmcraft HVR39 Specifications

The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.

Specifications
Additional Features
  • Ohmcraft resistors are produced using Micropen® precision printing technology which provides a superior precision, thick-film, through-hole resistor
  • Maximum voltage rating of 2kV
  • Ultra high stability
  • Very low noise
  • VCR to ±0.05 ppm/V
  • Working temperature range of -55°C to +150°C
  • Custom sizes and configurations possible
Maximum Power Rating
  • 0.5W
Maximum Resistance
  • 1TΩ (Tolerance and TCR dependent)
Minimum Resistance
  • 100kΩ (Tolerance and TCR dependent)
TCR
  • ±25 ppm/°C (E - 1MΩ up to 100MΩ)
  • ±50 ppm/°C (H - 100kΩ up to 1GΩ)
  • ±100 ppm/°C (K - 100kΩ up to 50GΩ)
  • ±200 ppm/°C (L - 100kΩ up to 50GΩ)
  • >200 ppm/°C (M - 100kΩ up to 1TΩ)
Tolerance100kΩ up to 100MΩ
  • ±0.1% (B)
  • ±0.25% (C)
100kΩ up to 10GΩ
  • ±0.5% (D)
100kΩ up to 50GΩ
  • ±1.0% (F)
  • ±2.0% (G)
  • ±5.0% (J)
100kΩ up to 100GΩ
  • ±10% (K)
100kΩ up to 1TΩ
  • ±20% (L)

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF DocumentOhmcraft HVD high voltage radial leaded resistor series datasheet
PDF DocumentOhmcraft's Micropenning resistor advantages application note
PDF DocumentOhmcraft's performance specifications by case size application note
PDF DocumentOhmcraft's high frequency attributes application note
PDF DocumentOhmcraft's glossary of resistor terminology
PDF DocumentOhmcraft's VCR tracking and linearity application note
PDF DocumentOhmcraft's specifying resistors tutorial
PDF DocumentOhmcraft's low current noise white paper
PDF DocumentOhmcraft's resistor pulse withstanding capabilities white paper







VIDEOS
Ohmcraft custom resistor printing

A video highlighting how Ohmcraft's premium resistors are made. Utilising their Micropen technology, they print their resistors using a serpentine pattern to create a reliable product that you can count on.
How does Micropenning compare to screen printed resistors?

How does Micropen printing compare to screen printed resistors? For Ohmcraft Vice President, Eric Van Wormer, it's all about #precision
Why do Ohmcraft customers use their premium resistors?

As the leader in high voltage, high performance resistors and high ohmic value resistors, Ohmcraft has the technology and expertise to design and manufacture resistors to meet your designs for application specific resistors.
VIDEOS
Ohmcraft custom resistor printing

A video highlighting how Ohmcraft's premium resistors are made. Utilising their Micropen technology, they print their resistors using a serpentine pattern to create a reliable product that you can count on.
How does Micropenning compare to screen printed resistors?

How does Micropen printing compare to screen printed resistors? For Ohmcraft Vice President, Eric Van Wormer, it's all about #precision
Why do Ohmcraft customers use their premium resistors?

As the leader in high voltage, high performance resistors and high ohmic value resistors, Ohmcraft has the technology and expertise to design and manufacture resistors to meet your designs for application specific resistors.

This product is available fully compliant to the RoHS EU directive 2011/65/EU, however, Non-RoHS compliant options are available.
