The HVR42 high voltage through-hole resistor series from Ohmcraft® offers a voltage rating of 20kV, power rating of 2W and a resistance range from 100kΩ up to 1TΩ all in a small radial leaded through-hole package. By utilising their patented Micropen® precision printing technology, they are able to provide a superior precision, thick-film through-hole resistor. HVR42 resistors offer very low noise, ultra-high stability with tolerances down to ±0.1% (between 100kΩ and 100MΩ), TCR as low as ±25 ppm/°C (between 1MΩ and 500MΩ) and VCR down to 0.05 ppm/V.

  • High voltage radial leaded through-hole resistor
  • Available in any resistance between 100kΩ and 1TΩ
  • Utilises patented Micropen® precision printing technology
  • Ultra-high stability
  • Very low noise
  • Tolerances as low as ±0.1% (between 100kΩ and 100MΩ)
  • TCR as low as ±25 ppm/°C (from +25°C up to +75°C, between 1MΩ and 500MΩ)
  • Maximum voltage rating of 20kV
  • Maximum power rating of 2W
  • Working temperature from -55°C up to +150°C

Ohmcraft's HVR42 high voltage through-hole resistors are available with various options including the following lead styles:

  • T - 100% Tin spade leads (RoHS Compliant)
  • S - Tin Lead (Sn60Pb40) solder spade leads (Not RoHS Compliant)
  • W - 100% Tin 22AWG wire leads (RoHS Compliant)
  • B - Tin Lead (Sn60Pb40) solder 22AWG wire leads (Not RoHS Compliant)

As well as the above lead styles, the HVR42 series is available with various coatings including the following:

  • 2 - Bare resistor element
  • 3 - Powder Coating
  • 4 - Single surface epoxy

For custom configurations or requirements, please contact us.

The below table gives the available specifications for the HVR42 series:

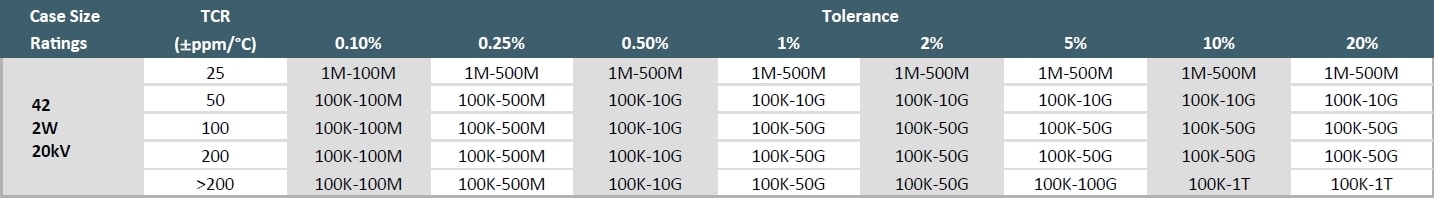

Ohmcraft HVR42 Specifications

The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.

Specifications
Additional Features
  • Ohmcraft resistors are produced using Micropen® precision printing technology which provides a superior precision, thick-film, through-hole resistor
  • Maximum voltage rating of 20kV
  • Ultra high stability
  • Very low noise
  • VCR to ±0.05 ppm/V
  • Working temperature range of -55°C to +150°C
  • Custom sizes and configurations possible
Maximum Power Rating 2W
Maximum Resistance 1TΩ (Tolerance and TCR dependent)
Minimum Resistance 100kΩ (Tolerance and TCR dependent)
TCR
  • ±25 ppm/°C (E - 1MΩ up to 500MΩ)
  • ±50 ppm/°C (H - 100kΩ up to 10GΩ)
  • ±100 ppm/°C (K - 100kΩ up to 50GΩ)
  • ±200 ppm/°C (L - 100kΩ up to 50GΩ)
  • >200 ppm/°C (M - 100kΩ up to 1TΩ)
Tolerance 100kΩ up to 100MΩ
  • ±0.1% (B)
100kΩ up to 500MΩ
  • >±0.25% (C)
100kΩ up to 10GΩ
  • ±0.5% (D)
100kΩ up to 50GΩ
  • ±1.0% (F)
  • ±2.0% (G)
100kΩ up to 100GΩ
  • >±5.0% (J)
100kΩ up to 1TΩ
  • ±10% (K)
  • ±20% (L)
