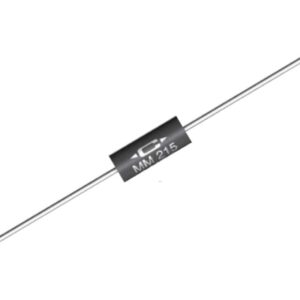

Caddock MM Series

  • Caddock

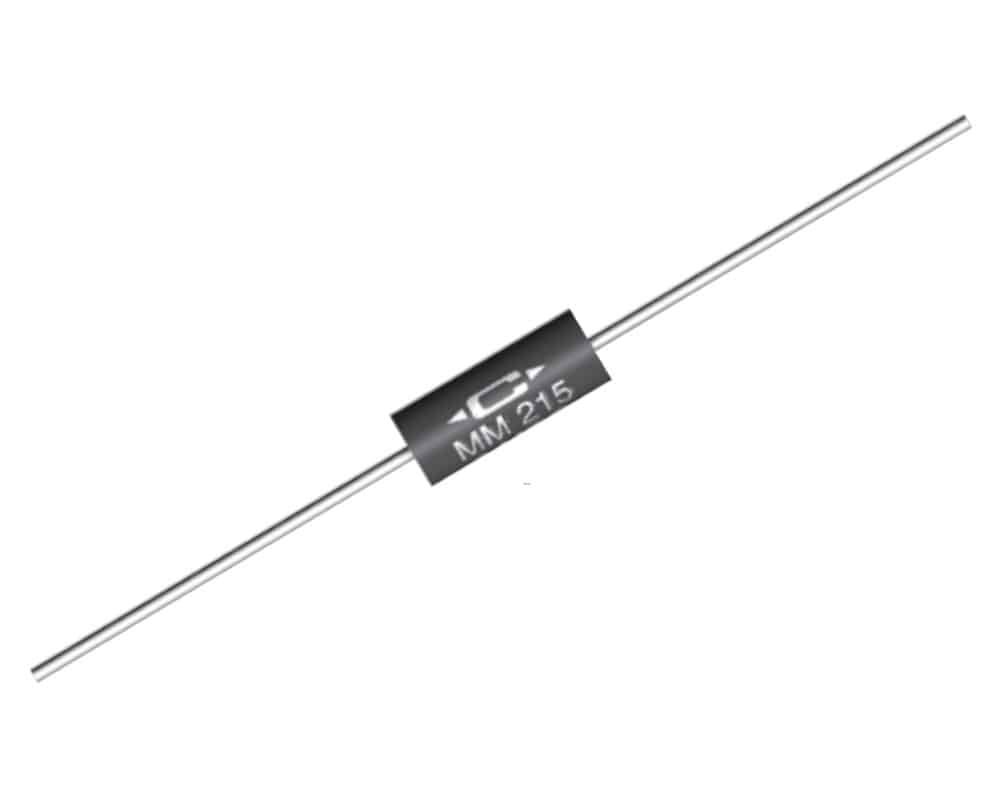

Product Features

  • Precision high voltage through-hole resistor
  • Maximum operating voltage from 200V up to 800V (standard series)
  • Utilises Caddock’s Micronox® resistance film
  • Non-inductive performance available
  • High power rating at +125°C
  • Maximum operating temperature to +275°C
  • Extended life stability of 0.1% per 1,000 hours

Applications

Description

The MM high temperature precision axial leaded resistor series from Caddock offers a resistance range from 30Ω up to 10MΩ, a power rating of up to 1W (MM215 model) and a voltage rating of up to 800V (MM215 model). The MM series has a tolerance of ±1.0% as standard, with options down to ±0.1% on special order, and also a TCR of ±50 ppm/°C (between -15°C and +105°C). These resistors are produced with Caddock’s proven Micronox® resistance films.

  • High temperature high voltage precision axial leaded resistor
  • Available in any resistance between 30Ω and 10MΩ
  • Utilises Caddock’s Micronox® resistance film technology
  • The MM215 model utilises Caddock’s non-inductive design
  • Tolerance of ±1.0% as standard with options down to ±0.1% on special order
  • TCR of ±50 ppm/°C (between -15°C and +105°C)
  • Maximum working voltage of up to 800V (model dependent)
  • Maximum power rating of up to 1W (model dependent)
  • Maximum operating temperature to +275°C

Some models of the MM series are manufactured with Caddock’s non-inductive design that provides for neighbouring lines to carry current in opposite directions. This efficient non-inductive construction is accomplished without derating of any performance advantages.

MM high temperature high voltage precision resistors have a proven performance history in industrial and military applications.

The below table gives the specifications available for the complete MM resistor series:

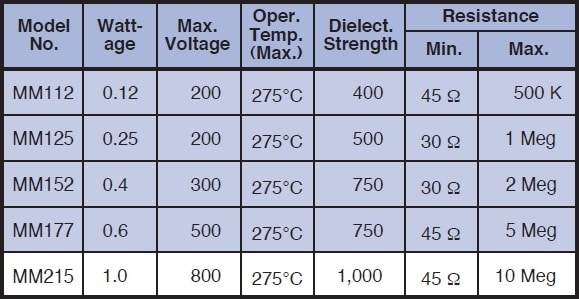

Caddock MM Specifications

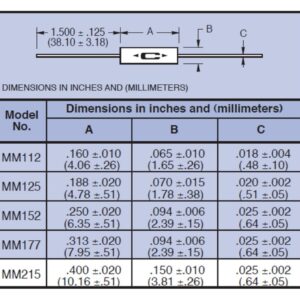

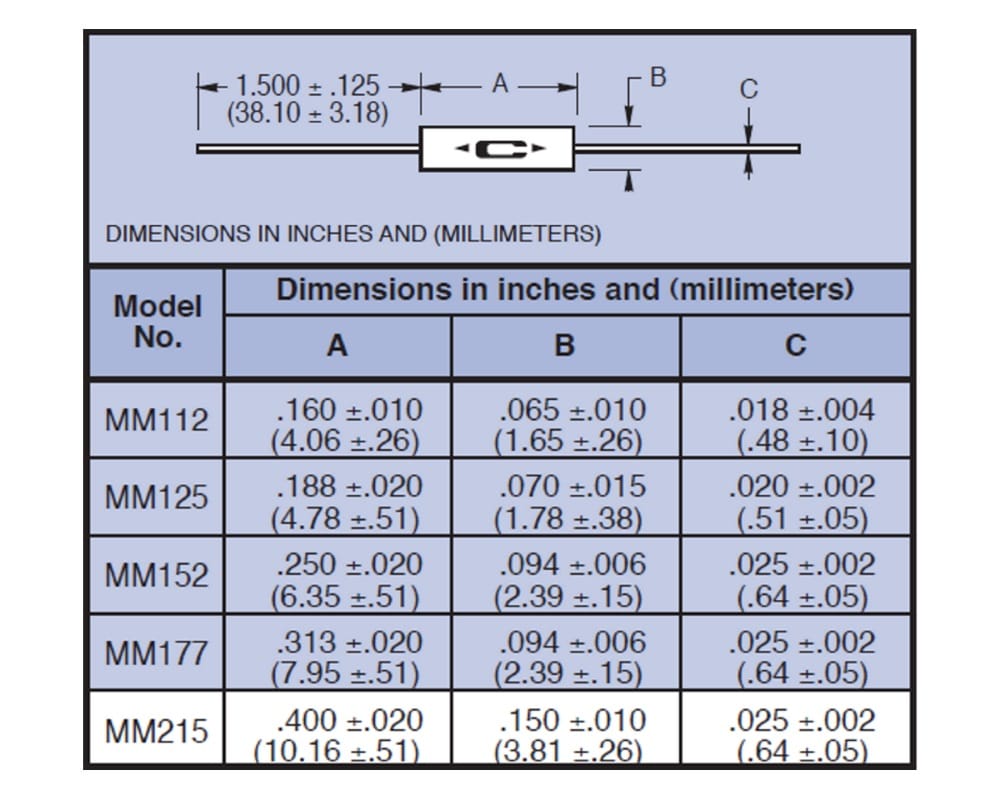

Caddock MM SpecificationsModels with low inductance construction are in shaded areas

Caddock MM Specifications Models with Caddock’s non-inductance resistance pattern are in non-shaded areas

The continuous maximum applied voltage cannot exceed the maximum power rating and is ohmic value dependent.
Value range is case size dependent.


Specifications

Weight 0.00000 kg
Dimensions 0.00 × 0.00 × 0.00 mm
Minimum Resistance

Maximum Resistance

Temperature Coefficient

Power Rating

, , , ,

Additional Features

Precision high voltage through-hole resistorMaximum operating voltage from 200V up to 800V (standard series)Utilises Caddock's Micronox® resistance filmNon-inductive performance availableHigh power

Tolerance

,

Non-RoHS Compliant Product – Caddock

This product is not compliant to the RoHS EU directive 2011/65/EU.

Caddock MM and ML Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Caddock ML and MM precision film axial leaded resistor series datasheet
Designing with Caddock TO-style heat sink mountable power film resistors application note (AEN-0101)
Understanding the power rating of Caddock MP9100 resistors application note (AEN-0102)
Application of the type CHR high resistance precision chip resistor products application note (AEN-0103)
Terminal finish and soldering process information for Caddock resistor products application note (AEN-0104)
Caddock resistor products and the RoHS directive application note (AEN-0105)
Customer applications that are outside the scope of the RoHS directive application note (AEN-0106)
Caddock REACH compliance statement application note (AEN-0107)
Recommended solder reflow profile for Caddock surface-mount resistors application note (AEN-0108)
