Description
The RH 50C metal clad wire wound resistor series from RARA offers a power rating of up to 50W on a heat sink (305 x 305 x 2mm) and 10W in free air with available resistance values between 0.68Ω and 50kΩ (inductive design) or between 0.2Ω and 20kΩ (non-inductive design). These high power resistors are available with tolerances of ±0.1%, ±0.25%, ±0.5% and ±1.0%, depending the the resistance value required, as well as the option of inductive or non-inductive resistive windings. The RH 50C series from RARA has a cement moulding within an aluminium housing which mounts on to a chassis to utilise the heat sink effect, all with a temperature range from -55°C up to +250°C
- Metal clad wire wound resistor
- Inductive resistance range available between 0.68Ω and 50kΩ
- Non-inductive resistance range available between 0.2Ω and 20kΩ
- TCR from as low as ±40 ppm/°C between 20Ω and 25kΩ (inductive) or between 20Ω and 10kΩ (non-inductive)
- Tolerance from as low as ±0.1% from 1Ω up to 25kΩ (inductive) or from 1Ω up to 20kΩ (non-inductive)
- Power rating of 50W on a heat sink (305 x 305 x 2mm) or 10W in free air
- Insulation resistance of 20MΩ minimum
- Temperature range between -55°C and +250°C
- High stability at conventional power ratings
- Short time overload of 5 x power rating for 5 seconds

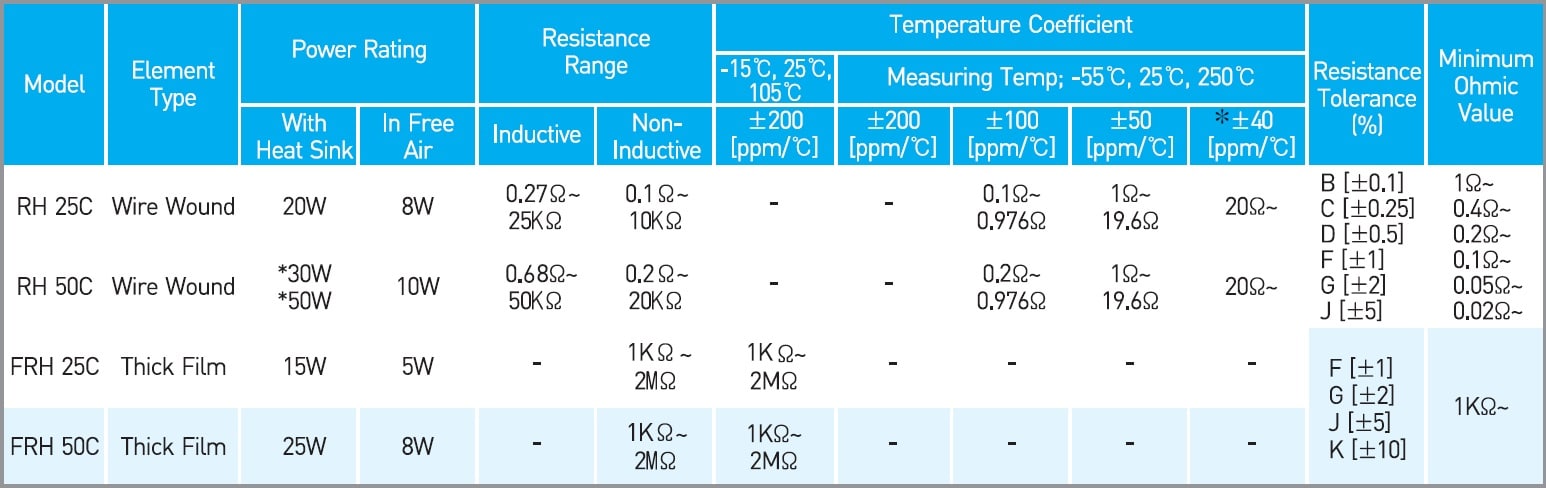

The below table gives the specifications available for the RH series including the RH 50C resistors:
*30W on heat sink (178x127x51x1mm), 50W on heat sink (305x305x2mm)
*Option of ±20 ppm/°C is available upon request, please contact us for further details
