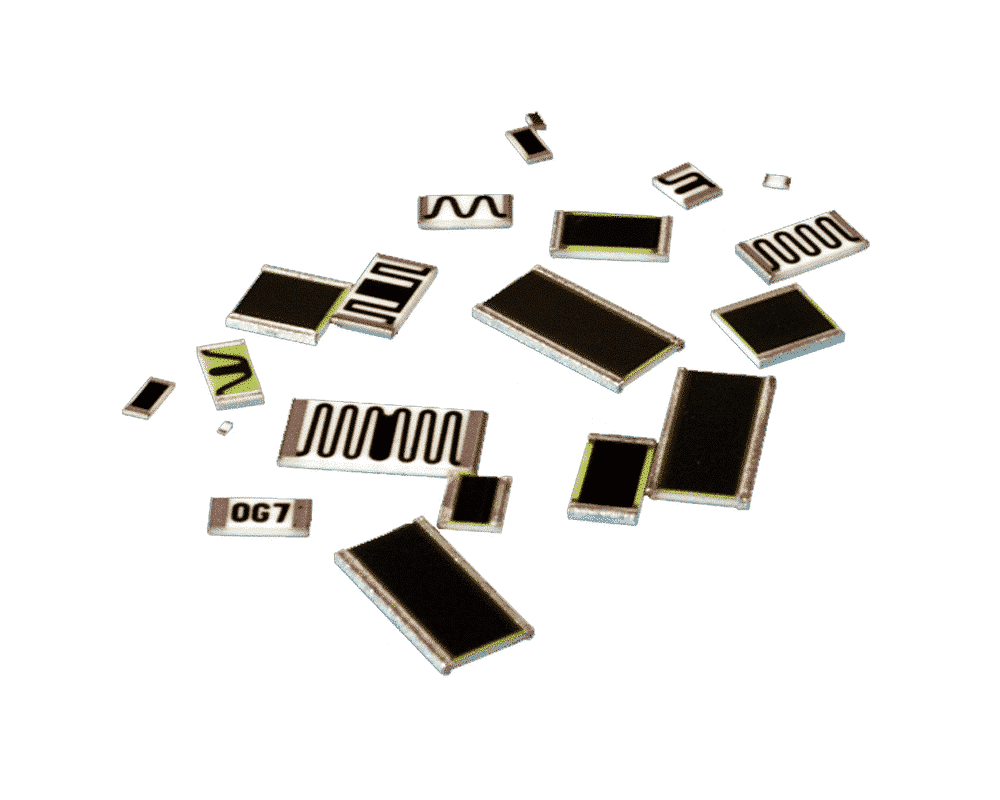

SRT CBW 0402 Series

  • SRT Resistor Technology

Product Features

  • Non-magnetic thick film chip resistor
  • Resistance range from 10Ω to 100GΩ
  • Tolerances from ±5.0% to ±30%
  • TCR from ±100 ppm/°C to ±3000 ppm/°C
  • Power rating of 0.05W (at +70°C)
  • Temperature range from -55°C to +155°C

Applications

The CBW 0402 non-magnetic bondable chip resistor series from SRT Resistor Technology offers a wide resistance range from 10Ω up to 100GΩ, power rating of 0.05W and working voltage rating of 60V, all in a small 0402 package. By utilising SRT’s thick film resistor technology, they are able to offer low tolerances down to ±5.0% as well as a TCR as low as ±100 ppm/°C (between 10Ω and 100MΩ). The CBW 0402 resistor series has the bottom side completely insulated and features AgPd termination for flip-chip assembly (face down, for conductive epoxy assembly) or gold termination for wire bonding (US/TC face up) as well as flip chip (face down, for conductive epoxy assembly).

  • Flip chip, bondable thick film chip resistor
  • Available in any resistance between 10Ω and 100GΩ
  • 0402 package
  • Power rating of 0.05W at +70°C
  • Working voltage rating 60V
  • Tolerances as low as ±5.0% over the resistance range of 10Ω up to 100MΩ
  • TCR as low as ±100 ppm/°C over the resistance range of 10Ω to 100MΩ
  • Temperature range from -55°C up to +155°C
  • Non-magnetic
  • AgPd termination for flip chip assembly (face down, for conductive epoxy assembly)
  • Gold termination for wire bonding (US/TS, face up) as well as flip chip (face down, for conductive epoxy assembly)
  • No wrap-around
  • Bottom side completely insulated

Orientation in tape (face-up for wire bonding, face-down for flip chip assembly) is to be specified with order. If not specified, face-up is supplied as standard.

The CBW non-magnetic resistor series is also available with an extended high temperature range version (up to +200°C). Please see the separate CBW-HT product pages for further information.

Other sizes and custom tolerance, TCR and VCR options are available upon request. Please contact us for further information and availability.

SRT Resistor Technology GmbH is an independent company, located in the south of Germany, with extensive experience in the development and production of high-grade resistors covering High-Voltage, High-Ohmic and High-Temperature Thick Film Resistors. For their official website, please visit www.srt-restech.de

Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

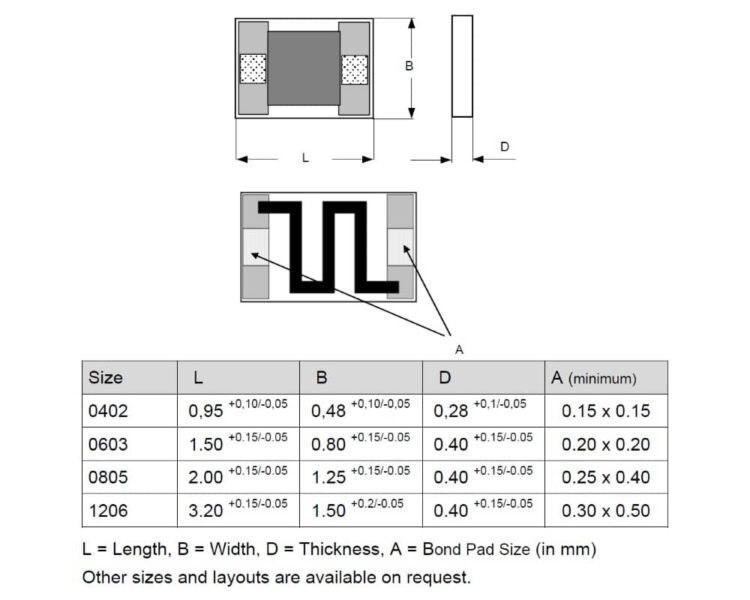

Dimensions 0.28 x 0.48 x 0.95mm
Series / Model

Package / Size

Tolerance

, , ,

Temperature Coefficient

, , , ,

Termination / Connection

,

Maximum Resistance

Minimum Resistance

Power Rating

Temperature Range (°C)

SRT CBW 0402 Series Ordering Info

Below is the model number configuration for the CBW series from SRT Resistor Technology.

Ordering example: CBW 0603 1G ±20% TCR1000
XXXXXXXXXXX

Series / Model ()

Package / Size ()

Tolerance ()

Temperature Coefficient ()

Termination / Connection ()

Orientation (XXXX)

Component orientation in tape

Face-up or Face-down

RoHS Compliant Product – SRT with Exemption

This product is available compliant to the RoHS EU directive 2011/65/EU, however, the following exemptions according to the RoHS annex are applicable:

  • No. 7(a) – 'Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead)' used in leaded resistors
  • No. 7(c)-I – 'Electrical and electronic components containing lead in glass or ceramic…or in a glass or ceramic matrix compound' used in chip resistors and leaded thick film resistors

    SRT CBW Technical Library

    We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





    DOCUMENTATION
    SRT CBW non-magnetic bondable SMD chip resistor datasheet
