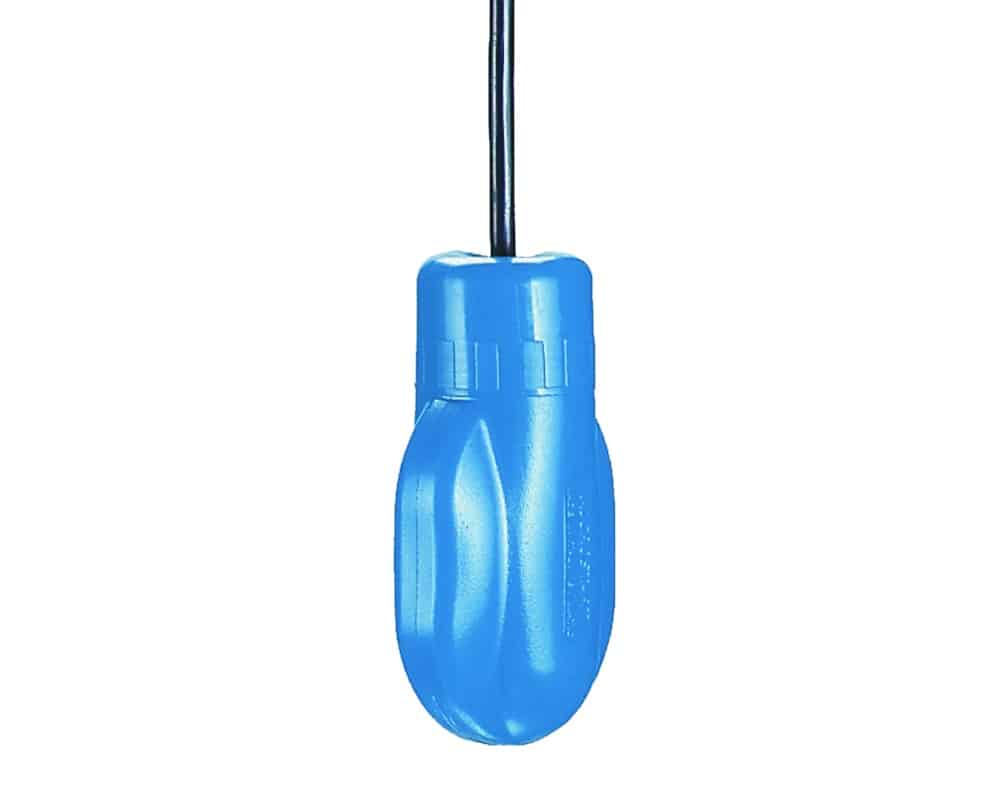

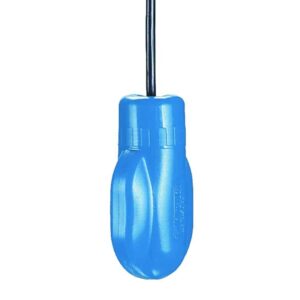

Cynergy3 MS WRAS Float Switch Series

  • Cynergy3

Product Features

  • WRAS Approved Cable end float switches
  • UL, VDE and CENELEC approved microswitch
  • High density polyethylene (HDPE) casing filled with polyurethane
  • 5m cable supplied – PVC (standard) or PUR (for use in fuel oils)
  • Direct power switching
  • Suitable for depths up to 100m
  • UL

Applications

The MS series of cable end float switches by Cynergy3 utilises a microswitch element activated by a moving stainless steel ball with lifetime of 200,000 operations. The switch is hermetically sealed within a HDPE casing filled with non-hygroscopic closed-cell polyurethane, enabling it to work as much as 100m deep in water. The MS series features a selection of contact forms (n/o, n/c and c/o), direct switching power and protective earth conductor included as standard (except for c/o versions). The switching element is UL, VDE and CENELEC approved. The switches are supplied with 5m length of WRAS approved cable with and can be operated in temperatures between 0°C and +45°C (WRAS approved to +23°C).

  • WRAS Approved Cable end float switch
  • Microswitch switching element is UL, VDE and CENELEC approved
  • Maximum switching voltage of 250Vac and 24Vdc
  • Selection of normally-open, normally-closed and changeover contact forms
  • Temperature range of 0°C to 45°C (WRAS approved to 23°C)
  • WRAS approved cable
  • Direct power switching
  • Cable mounting
  • 100m depth capability



Typical applications for the Cynergy3 MS series of float switches include:

  • Large tanks, cisterns and reservoirs
  • Direct installation on submersible pumps



The below table gives the full specifications for each resistor model available including the Cynergy3 MS series:

Cynergy3 MS series specifications



Clear
Quantity
Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Contact us if you need your items quicker or need more than in stock.

Specifications

Weight 800.00000 kg
Dimensions 0.00 x 0.00 x 0.00mm
Colour

Configuration

Contact Form

,

Inductive Switching Current

,

Pressure Range

Series / Model

Temperature Range (°C)

RoHS Compliant Product – Cynergy3

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Cynergy3 MS series Ordering Info

Below is a part number break down for the Cynergy3 MS Float Switch Series:

Cynergy3 MS Series ordering information
