High Precision Pressure Sensor C10 Type

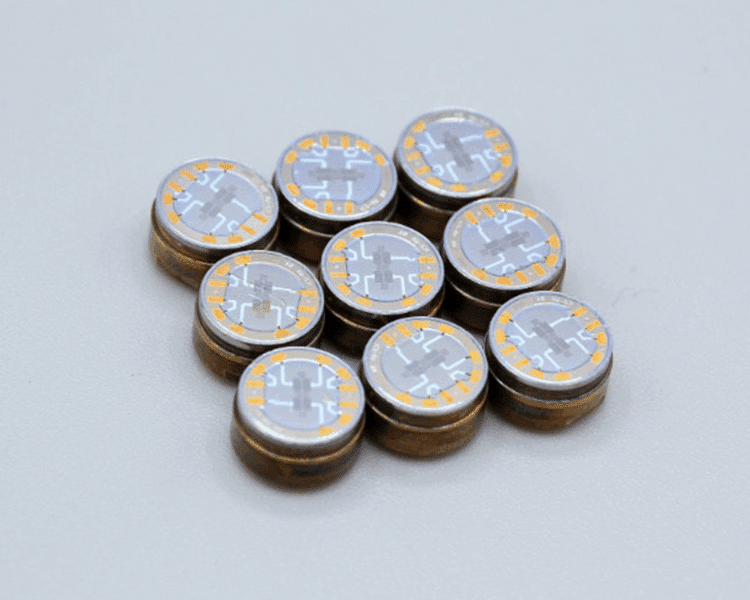

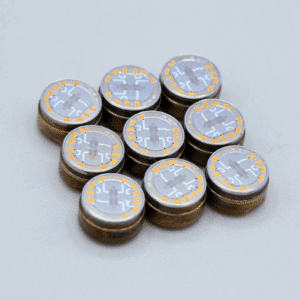

The C10 Type sensor from ICS-NH is designed for accurate static and dynamic pressure measurement, employing precision thin-film strain-gauge technology on a stainless steel substrate in a rugged 10 mm cup package. Engineered for exceptional durability and measurement integrity, this sensor series supports an extensive range of pressures — from 1.6 bar up to 2,500 bar in standard configurations — and offers high-temperature operation up to +260 °C in the S5 variant.

At its core, the sensing element forms a complete Wheatstone bridge composed of highly stable thin-film resistors (nominal 5 kΩ) directly deposited onto the stainless-steel diaphragm. This monolithic construction eliminates adhesive interfaces, providing excellent long-term stability, minimal drift, and outstanding resistance to environmental influences such as temperature cycling and vibration. Typical performance includes a nominal bridge output of approximately 2 mV/V, resistor temperature coefficient (TCR) under ± 25 ppm/K, zero offset within ± 0.2 mV/V, and a temperature coefficient of span (TCS) between 0.01–0.03 %/K. The sensor demonstrates high insulation resistance (> 10⁹ Ω at 100 V DC) and resilience to overpressure, ensuring consistent operation in extreme conditions.

The ICS-NH C10 Type Pressure Sensor is ideal for applications requiring high measurement accuracy, mechanical robustness, and stability over wide temperature and pressure ranges — including aerospace, hydraulic systems, oil & gas instrumentation, and advanced industrial process control.

Key features of the ICS-NH C10 Type Pressure Sensor:

• 10 mm cup diameter for versatile integration
• Thin-film strain-gauge sensor on stainless steel diaphragm

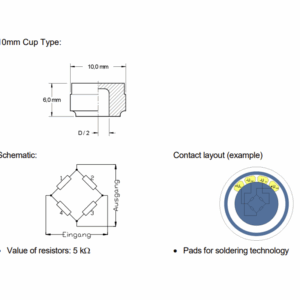

• Precision full-bridge design (5 kΩ nominal resistance)
• Temperature range variants from –65 °C to +260 °C (S1–S5)
• Pressure measuring ranges from 1.6 bar to 2,500 bar (standard)
• Low TCR of resistor network (± 25 ppm/K)
• Excellent zero offset and span stability (Zero < ± 0.2 mV/V, TCS 0.01–0.03 %/K)
• High insulation resistance (> 10⁹ Ω at 100 V DC)
• Overload and burst resistance up to 2× and 5× full-scale respectively
• No internal amplification or compensation (raw sensor output)
• Suitable for static and dynamic pressure measurement

Typical applications of the ICS-NH C10 Type Pressure Sensor:
The C10 Type sensor is suited for demanding, high-reliability systems such as aerospace instrumentation, high-pressure hydraulics, industrial automation, and oil & gas exploration where measurement stability and resistance to harsh conditions are critical.

ICS-NH specialises in advanced sensing technologies, providing high-precision pressure, flow, and temperature sensors for extreme environments. Certified to EN 9100 aerospace standards, ICS-NH applies deep expertise in thin-film technology to deliver sensors that combine accuracy, robustness, and long-term reliability for critical applications across aerospace, energy, and industrial sectors. For more information visit https://www.ics-nh.de/en
