Core Sensors CS-HTP Series

  • Core Sensors

Product Features

  • Miniature High Temperature Pressure Sensor
  • Pressure ranges up to 30,000 PSI
  • High strength titanium BT9 sensing element
  • Accuracy of ≤±0.15% BFSL at 25°C
  • Optional PT1000 temperature output
  • Operating temperature from -195°C up to +204°C

Applications

risk

Due to global supply chain issues, lead times on this model may be extended and certain configurations may not be available. Please contact us for more information.

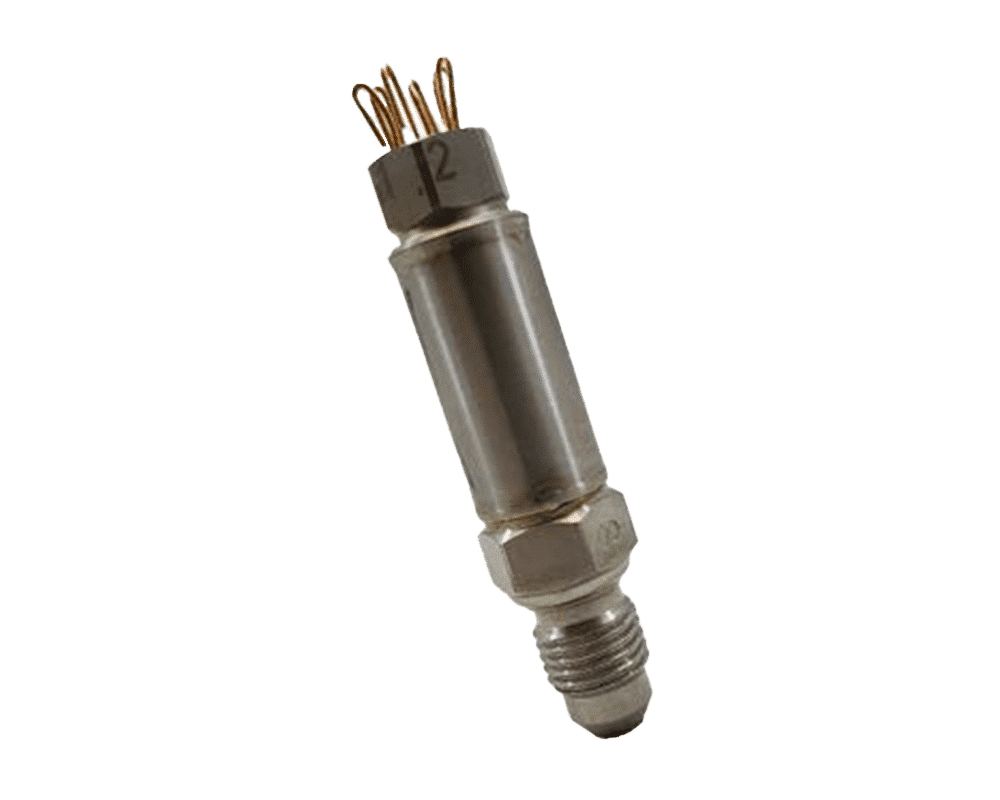

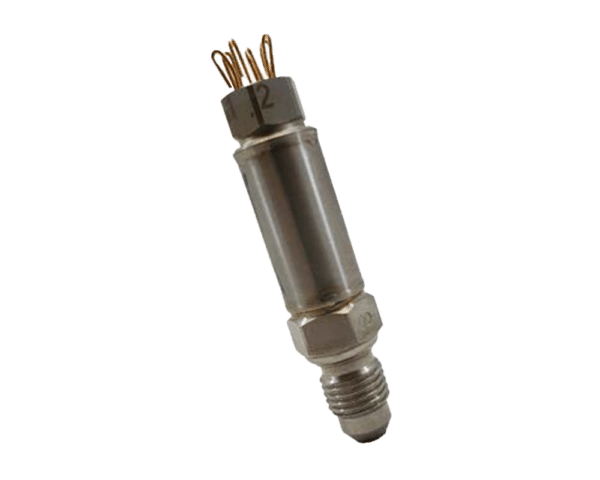

The CS-HTP Miniature High Temperature Pressure Sensor uses a fully active four arm Wheatstone bridge, dielectrically isolated Silicon on Sapphire sensing element based on proprietary technology. An operating temperature range of -195 to +204°C makes this sensor ideal for extreme temperature applications from cryogenics to engine compartments. The miniature design allows for Installation in confined spaces. A typical full scale output of 125mV at 10VDC excitation provides a large amount of usable output, simplifying signal conditioning. An optional PT1000 temperature output offers additional measurement capabilities in a single compact sensor. All of these features come in a small, compact package with a typical diameter of ~12mm.

  • Miniature High Temperature Pressure Sensor
  • Pressure ranges up to 30,000 PSI
  • High strength titanium BT9 sensing element
  • Accuracy of ≤±0.15% BFSL at 25°C
  • Optional PT1000 temperature output
  • Overpressure of 2x rated pressure at ≤10,000 PSI or 1.3x rated pressure at >10,000 PSI
  • Burst pressure of 5x rated pressure at ≤ 10,000 or 2x rated pressure at >10,000 PSI
  • Operating temperature range −195°C to +204°C
  • Please contact us for custom designs

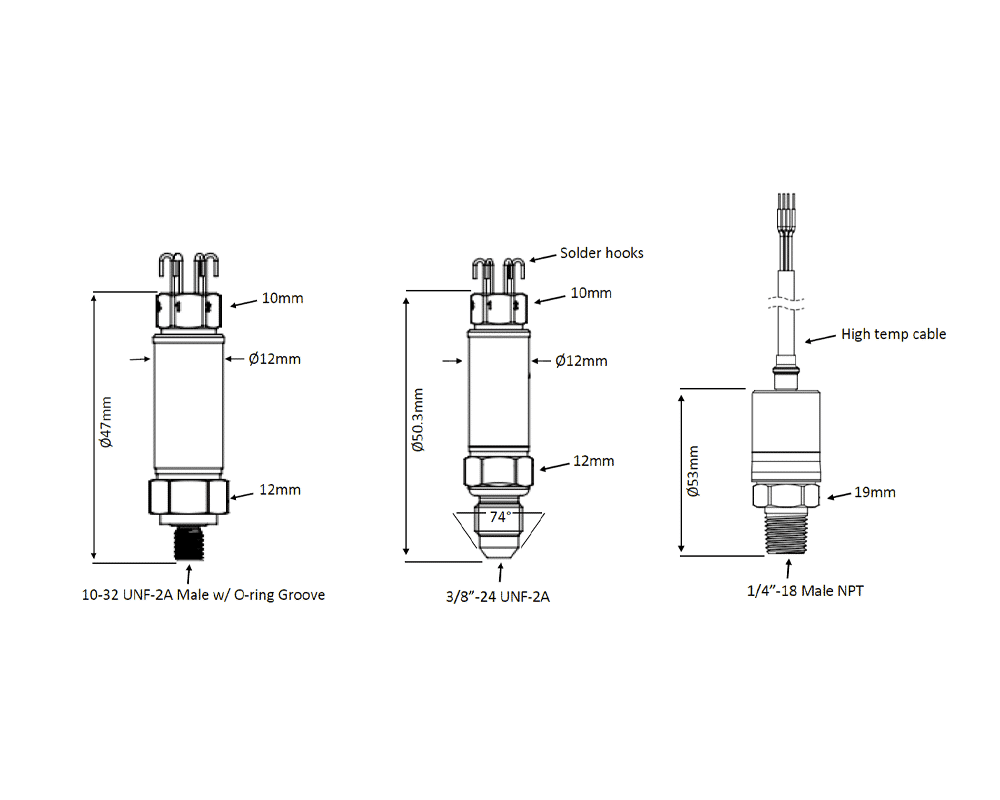

Process ConnectionMax. PSI
M5x0.8 Male3,000 PSI
10-32 UNF-2A Male w/ O-ring groove3,000 PSI
1/4” Male NPT10,000 PSI
M10x1 Male10,000 PSI
3/8-24 UNF Male w/ 74° Cone20,000 PSI
7/16-20 UNF Male w/ 74° Cone20,000 PSI

Typical applications for the CS-HTP Miniature High Temperature Pressure Sensor series include:

  • Aerospace control
  • Aerospace controls
  • Cryogenics
  • Test stands

Core Sensors design and manufacture high-quality sensors for measuring pressure and temperature properties for industrial and hazardous applications worldwide. Core offers solutions for industrial, submersible, differential and hazardous applications in both standard and custom packaging. In-house design and manufacturing capabilities along with strategic manufacturing partners allow Core to create solutions to some of the most complex sensor requirements. Please visit https://core-sensors.com for more information.
