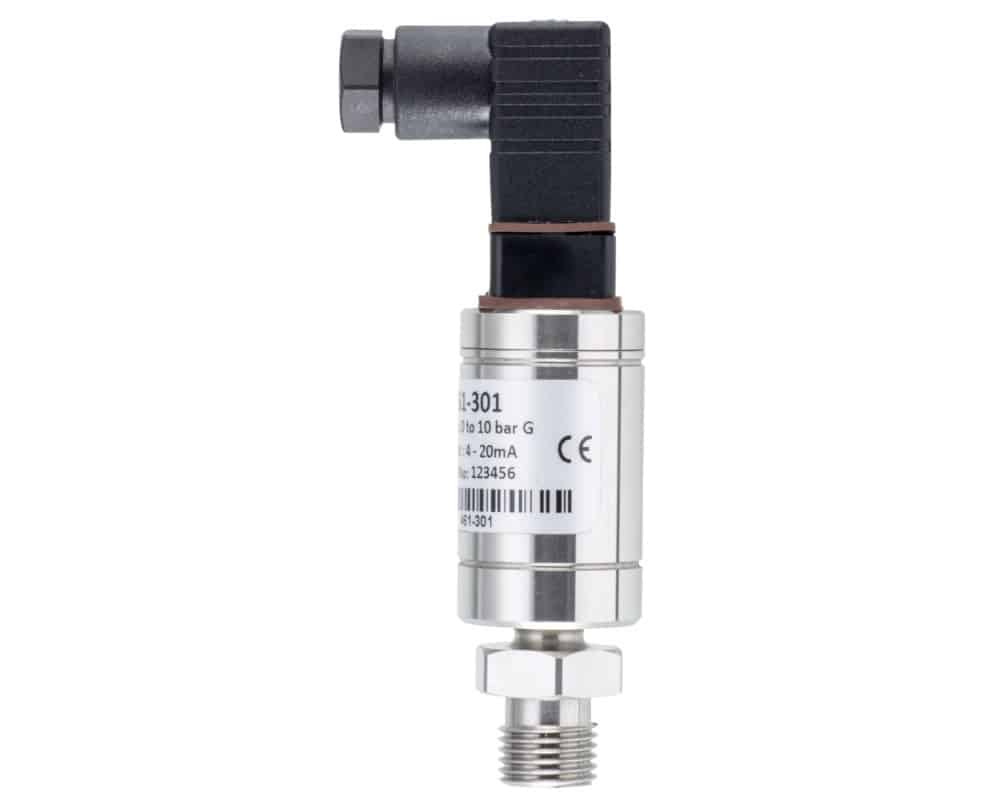

Cynergy3 IPS Pressure Transducer Series

  • Cynergy3

Product Features

  • Industrial Pressure Transducer (BSP)
  • Piezo-resistive ceramic sensor
  • Excellent stability
  • Excellent media compatibility

Applications

Description

The IPS series of ceramic industrial pressure transducers from Cynergy3 utilises piezo-resistive ceramic sensing technology to achieve excellent accuracy (<±0.25% of the full scale BFSL) and a microprocessor based amplifier for stability, making it an ideal device for industrial applications. The IPS pressure transducer is available with selection of pressure ratings (between -1 and 400 bar G) and outputs (4-20mA, 0-100mV or 0-5V). Moreover, the sensor features stainless steel housing ensuring excellent media compatibility. Each device comes temperature compensated, calibrated and fully traceable.

  • Industrial pressure transducers
  • Piezo-resistive, thick-film, ceramic sensor
  • Stainless steel housing for excellent media compatibility
  • Accuracy <±0.25% of the full scale (BFSL)
  • Temperature range (media temperature) of -40°C to 135°C
  • Excellent operational life at over 100×106 cycles
  • Process connection via 1/4″ BSP male

The IPS series of pressure transducers is available in several output and pressure range options. Further customisation is available on this product – speak to our technical sales team to discuss your requirement.

Typical applications for the Cynergy3 IPS pressure transducer series include:

  • Various industrial applications

The below table gives the full specifications for each resistor model available including the Cynergy3 IPS series:

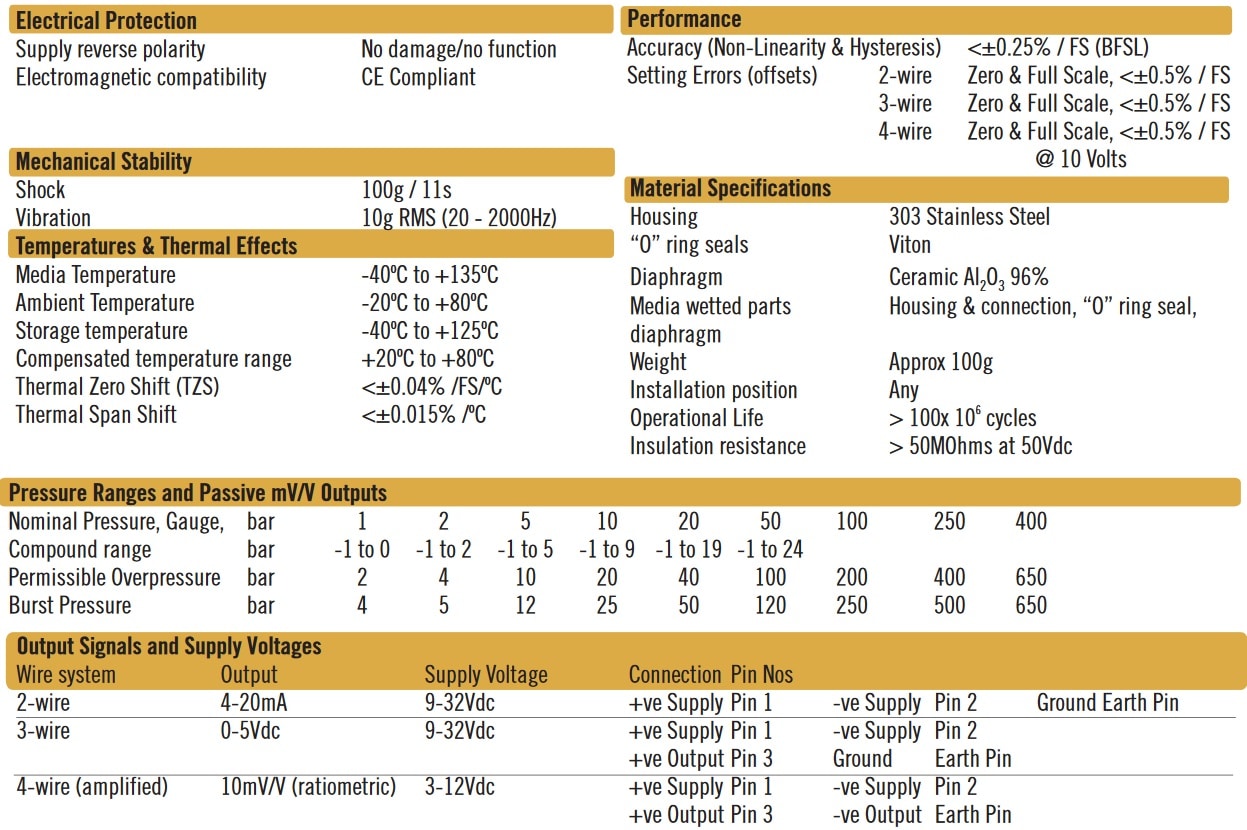

Cynergy3 IPS series specifications


Specifications

Weight 760.00000 kg

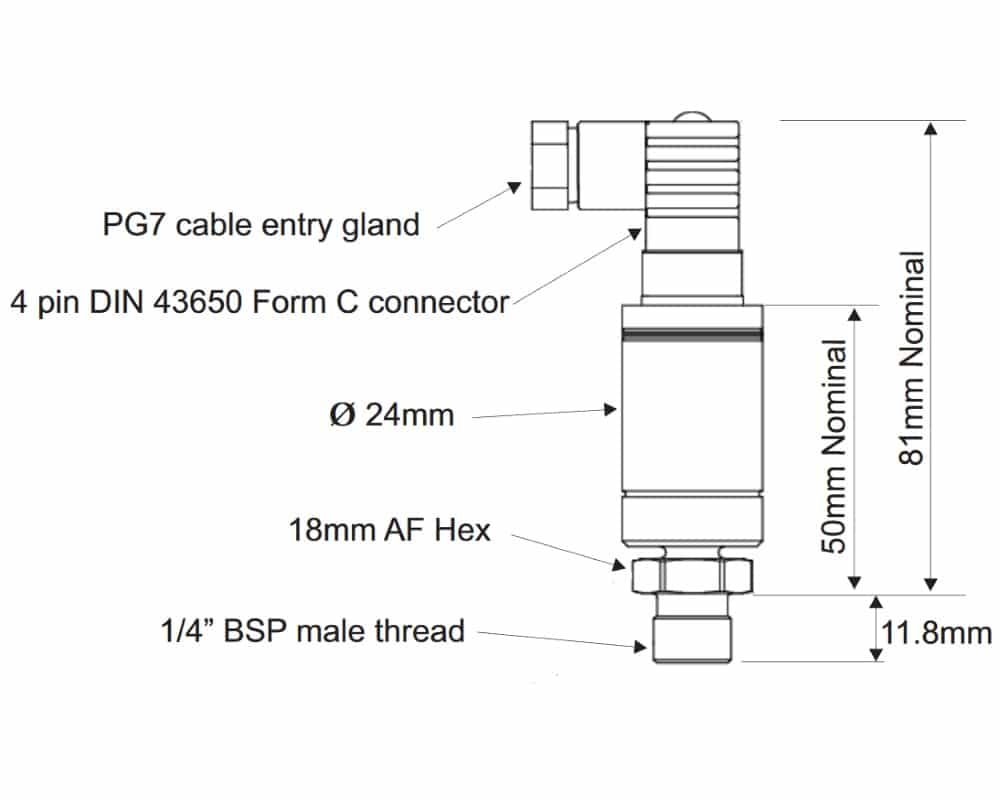

Dimensions 80.00 x 24.00 x 24.00mm
Series / Model

Output

, ,

Temperature Range (°C)

Supply Voltage

,

Pressure Range

, , , , , , , , ,

RoHS Compliant Product – Cynergy3

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Cynergy3 IPS series Ordering Info

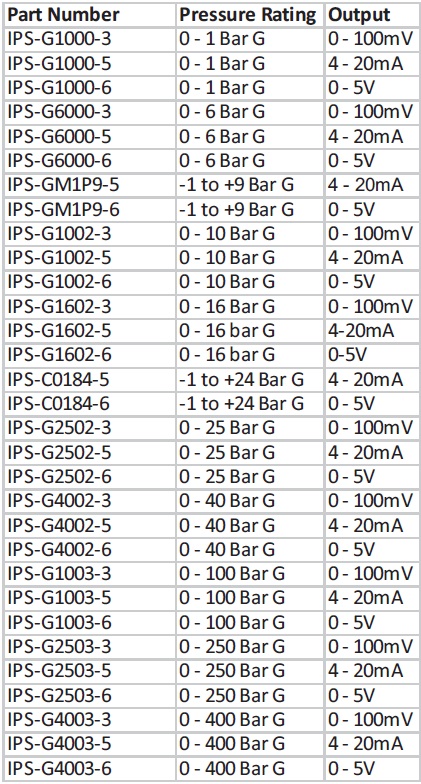

Below is a part number break down for the Cynergy3 IPS Pressure Transducer series:

Cynergy3 IPS Series ordering information

Cynergy3 IPS Series technical library

We are pleased to provide you with a range of additional content including product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Cynergy3 IPS Pressure Transducer Series Datasheet
Cynergy3 Range of Pressure Sensors Explained

Cynergy 3 Video Library

We are pleased to provide you with a range of videos, please see below for the latest content available:

Sensata & Cynergy3 – Empowering Innovations

More information about Sensata Technologies and Cynergy3 and the products they have to offer.

Sensata & Cynergy3 – Wireless Sensors

More information about the capabilities and benefits of suing wireless technologies to advance your sensor solutions.

Cynergy3 IPS Pressure Transducer Series
