The ULV1000 metal clad wire wound resistor series from RARA offers a power rating of up to 1000W on a heat sink (400W in free air) with available resistance values between 0.1Ω and 140Ω (inductive design) or between 0.1Ω and 36Ω (non-inductive design). These high power resistors are UL approved and available with tolerances of ±1.0%, ±2.0%, ±5.0% and ±10.0% as standard with other options available including flying leads or tab terminals, as well as inductive or non-inductive resistive windings. The ULV1000 series from RARA have a cement moulding with an extruded aluminium housing providing strong and rugged protection all with a temperature range from -55°C up to +200°C

  • Metal clad wire wound resistor
  • Cement moulding with an extruded aluminium housing
  • Option of flying leads, parallel or series terminal connections
  • Inductive resistance ranges available between 0.17Ω and 140Ω (flying leads), 0.1Ω and 18Ω (parallel tab terminal connection) or 18.1Ω and 90Ω (serial tab terminal connection)
  • Non-inductive resistance ranges available between 0.17Ω and 36Ω (flying leads), 0.1Ω and 9Ω (parallel terminal connection) or 9.1Ω and 36Ω (serial terminal connection)
  • TCR of +260 ppm/°C maximum
  • Tolerance values available of ±1.0%, ±2.0%, ±5.0% and ±10.0%
  • Power rating of 1000W on a heat sink (400W in free air)
  • Insulation resistance of 20MΩ minimum
  • UL approved
  • Temperature range between -55°C and +200°C
  • Short time overload of 10 x power rating for 5 seconds

Typical applications for the ULV series include:

  • Motor drives
  • braking and snubbing applications
  • Power sources for industrial equipment

The below table gives the specifications available for the ULV series including the ULV1000 resistors:

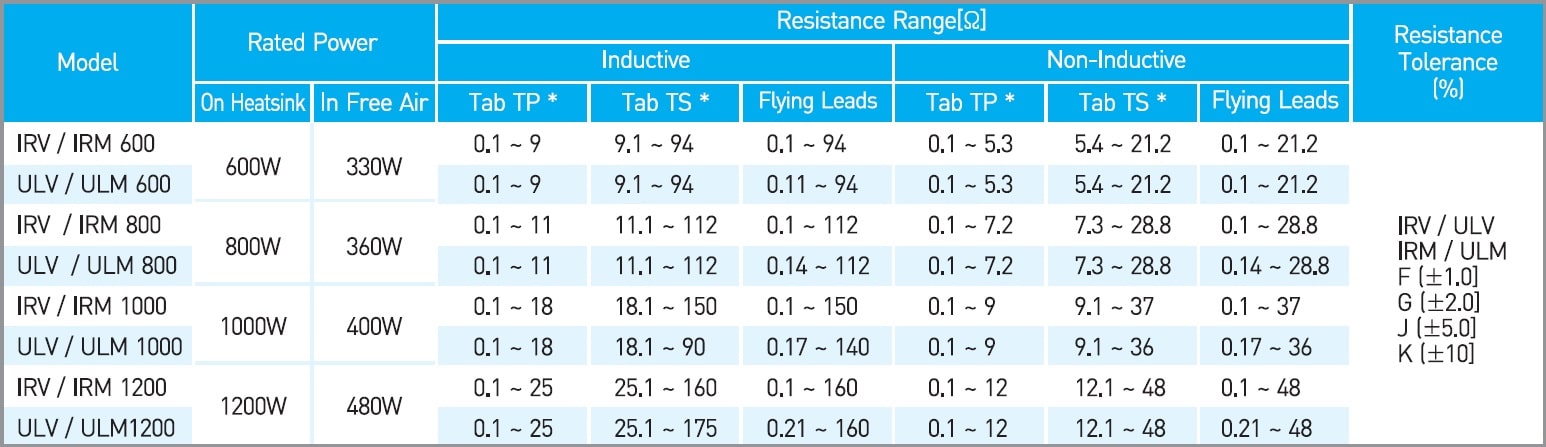

RARA ULV1000 Specifications

* Note: Tab TP = terminal parallel connection, Tab TS = terminal serial connection

Specifications
Additional Features
  • Metal clad wire wound resistor
  • Option of flying leads, parallel or series connections
  • Inductive or non-inductive design
  • Insulation resistance of 20MΩ minimum
  • Temperature range of -55°C up to +200°C
  • UL approved
  • Cement moulding with an extruded aluminium housing
  • Short time overload of 10 x power rating is 5 seconds
Maximum Power Rating On heat sink
  • 1000W
In free air
  • 400W
Maximum Resistance Inductive
  • 140Ω (flying leads)
  • 90Ω (serial tab terminal connection)
  • 18Ω (parallel tab terminal connection)
Non-inductive
  • 36Ω (flying leads)
  • 36Ω (serial tab terminal connection)
  • 9Ω (parallel tab terminal connection)
Minimum Resistance Inductive
  • 0.17Ω (flying leads)
  • 18.1Ω (serial tab terminal connection)
  • 0.1Ω (parallel tab terminal connection)
 Non-inductive
  • 0.17Ω (flying leads)
  • 9.1Ω (serial tab terminal connection)
  • 0.1Ω (parallel tab terminal connection)
TCR ±260ppm/°C maximum
Tolerance
  • ±1.0% (F)
  • ±2.0% (G)
  • ±5.0% (J)
  • ±10.0% (K)
