The PFU high power, high voltage and very low inductance resistor series from Riedon come in 800W or 1000W option. These resistors are available with a resistance range between 0.5Ω and 1MΩ, tolerance of 5% and TCR as low as 100ppm/K (between 1Ω and 1MΩ). These power film resistors offer very low inductance (108nH, terminal to terminal) and are vibration proof. They require mounting on a suitable heat sink (see data sheet for calculations) and liquid cooling is highly recommended.

  • High power and high voltage resistors
  • High power rating of 800W or 1000W
  • Resistance range between 0.5Ω to 1MΩ
  • Resistance value series E24+ (2Ω and 5Ω are also available)
  • Very low inductance (108nH terminal to terminal)
  • Vibration proof
  • Thermal resistance 0.10°C/W
  • Tolerance ±5% (J)
  • TCR of ±100ppm/°C between 1Ω and 1MΩ, and ±200ppm/°C 1Ω (for -55°C to +155°C)
  • Operating temperature −55°C to +175°C

Riedon PFU series high power, high voltage resistors cover the following applications:

  • Power Supplies
  • Motor Controls
  • Snubber Resistors
  • Load Banks
  • Robotics

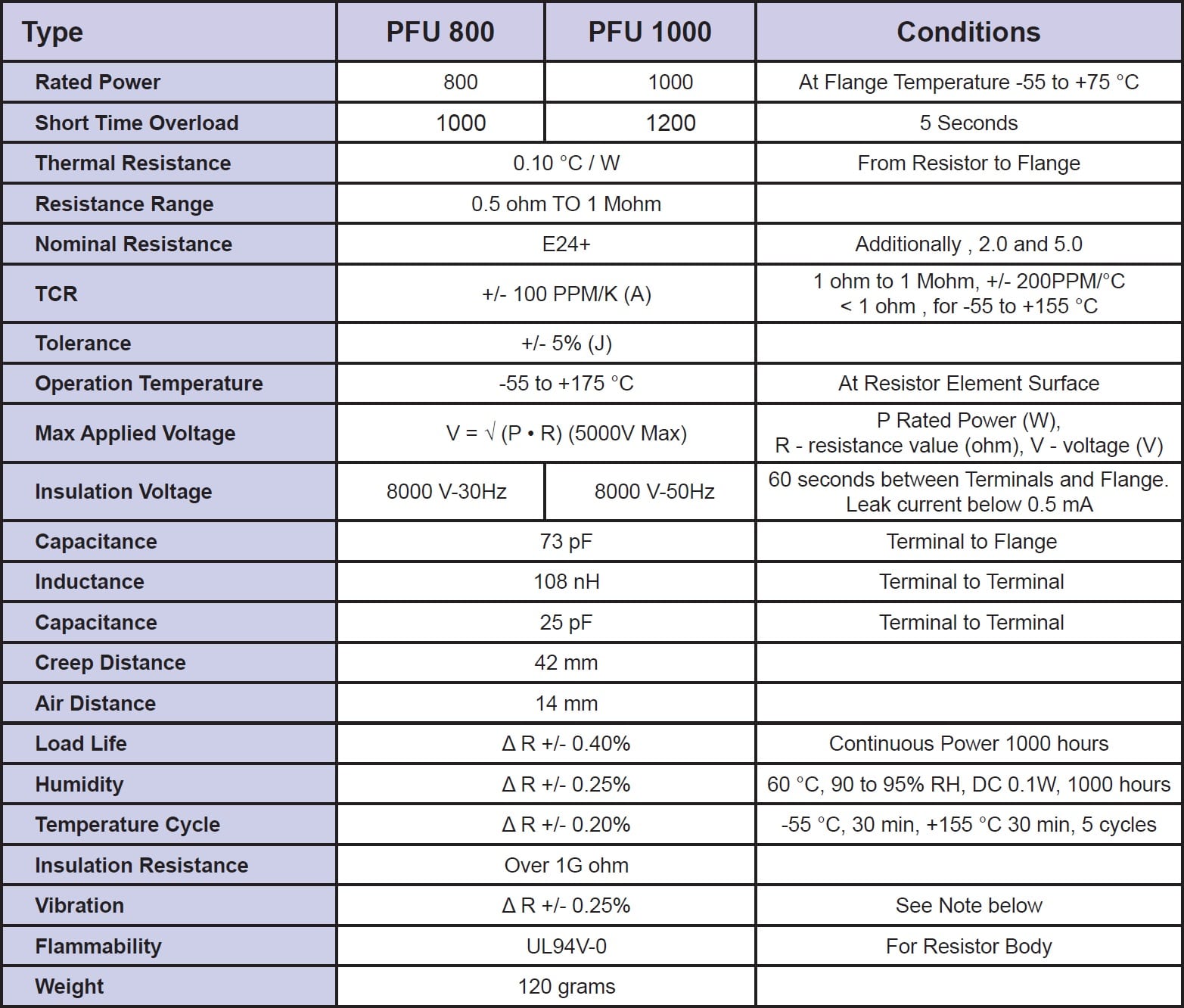

The below table gives the full specifications for each resistor model available in the Riedon PFU resistor series:

Riedon PFU Specifications

Note: IEC60068 2-6 displacement 0.75mm or acceleration 100/J2 10Hz to 54Hz sweep, 10 cycles X,Y,Z direction

Specifications
Additional Features
  • High power, high voltage resistor
  • Power ratings of 800W and 1000W
  • Very low inductance
  • vibration proof
  • Operating temperature of −55° to +175°C
Maximum Resistance 1MΩ
Minimum Resistance 0.5Ω
Package/Size Surface-mount
TCR
  • 100 ppm/°C for 1Ω to 1MΩ
  • 200 ppm/°C for <1Ω
Tolerance ±5%(J)
