The RSN series of base-mounted DC Ammeter/Busbar shunts from Riedon offers current ratings from 1A up to 500A with outputs of 0.05V, 0.1V or custom options available. They utilise a Manganin® resistive element to achieve low resistance values ranging from 100µΩ at 500A to 0.05Ω at 1A (for 50mV Output) and have a standard tolerance of ±0.1%.

  • Base mounted shunt
  • Manganin® resistive element
  • 0.05V output available in select resistance values between 100µΩ and 0.05Ω
  • 0.1V output available in select resistance values between 200µΩ and 0.1Ω
  • Current rating from 1A to 500A
  • Standard tolerance of ±0.1%
  • Calibration certificate available
  • Operating temperature +30°C to +70°C

Riedon RSN series base mounted shunts cover the following applications:

  • Power Supply
  • Power Conversions
  • Current Measurements

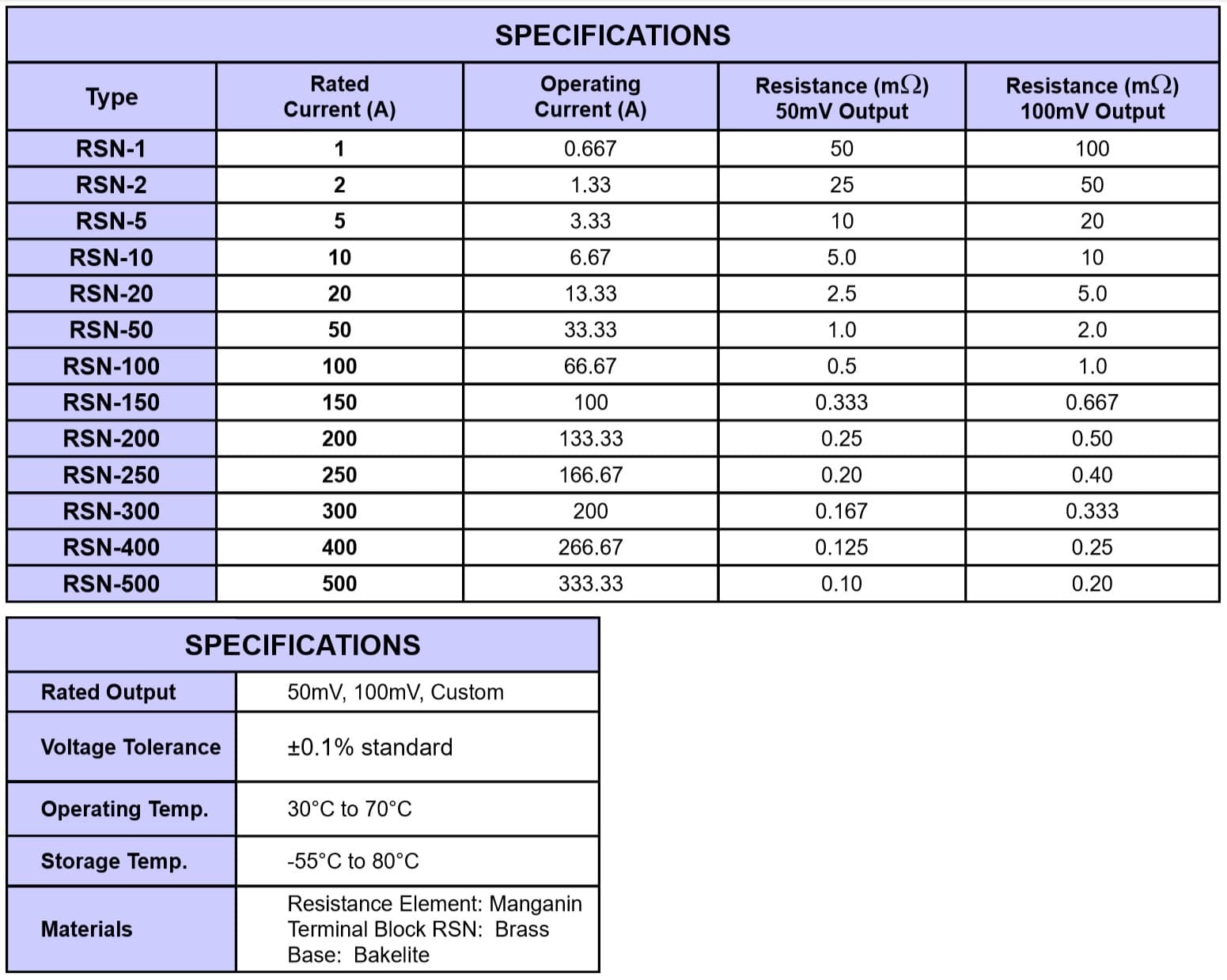

The below table gives the full specifications for each resistor model available in the Riedon RSN base mounted shunt series:

Riedon RSN Specifications
Specifications
Additional Features
  • Base mounted shunt
  • Output rating of 0.05V or 0.1V
  • Manganin® resistive element
  • Calibration certificate available
  • Operating temperature of +30° to +70°C
Current Rating 1A to 500A
Maximum Resistance
  • 0.05Ω (0.05V output)
  • 0.1Ω (0.1V output)
Minimum Resistance
  • 100µΩ (0.05V output)
  • 200µΩ (0.1V output)
Package/Size Surface-mount
TCR ±15 ppm/°C
Tolerance ±0.1%
