The RedRock™ RR122-1B13-512 TMR digital push-pull magnetic sensor from Coto. Features an operate sensitivity of 30G with an omnipolar magnetic field response with a wide supply voltage range of 1.7V to 5.5V. The average supply current of 50nA, as well as an operating temperature from −40°C up to +125°C. The RedRock™ RR122 series is ideal for use in medical, industrial, automotive, and consumer applications. Based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration.

  • TMR digital push-pull magnetic sensor
  • Operate sensitivity of 30G (typically)
  • Release sensitivity of 20G (typically)
  • Hysteresis (BHYST) 10G (typically)
  • Frequency of 2Hz
  • Temperature range of -40° to +125°
  • Average supply current <50nA
  • Supply voltage range of 1.7V to 5.5V
  • LGA-4 package
  • Omnipolar push-pull response
  • RoHS and REACH compliant

Based on patented Tunnelling Magnetoresistance (TMR) technology with seamless CMOS integration, the RR122 series offers multiple configurations or several parameters to enable applications like:

  • Proximity detection
  • Rotary sensing
  • Motor controllers
  • Fluid level detection
  • Utility meters
  • Consumer electronics
  • Door and lid closure detection
  • Portable medical devices
  • Wake-up microprocessor

The below table gives the full specifications of the Coto RR122-1B13-512 magnetic sensor:

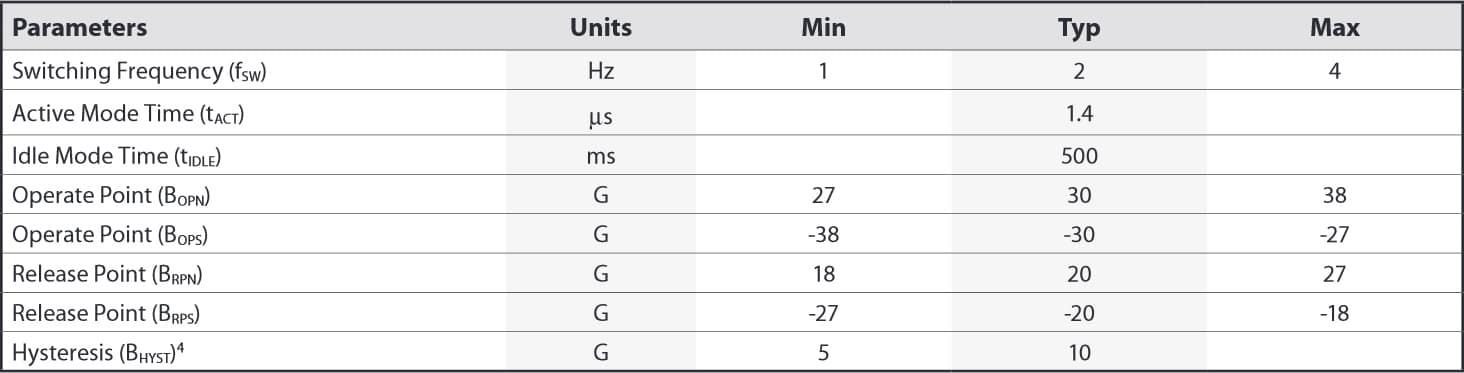

Coto RR122-1b12-511 Specifications 1. Unless otherwise specified, Vdd =1.7V to 5.5V, TA = −40°C to +85°C. Typical values are Vdd = 3V and TA = +25°C.
2. Conditions BHYST = BOP-BRP

Specifications
Additional Features
  • TMR digital push-pull magnetic sensor
  • Frequency 2Hz
  • Supply voltage range between +1.7V to +5.5V
  • LGA-4 package
  • Omnipolar push-pull response
  • RoHS and REACH compliant
Average Supply Current <50nA
Hysteresis Typically 5G (BHYST)
Operate Sensitivity 30G (typically)
Operating Temperature −40°C to +125°C
Release Sensitivity 20G (typically)
