SRT Microcéramique High Frequency Capacitor Series

SRT Microcéramique High Frequency Capacitor Series
  • High frequency ceramic chip MLCC capacitors
  • Available in capacitance ratings between 0.47pF and 1nF
  • Available in standard chip sizes from 0402 to 1210
  • Dissipation factor of ≤ 5.10-4 at 1Vrms and 1MHz (≤ 1000pF) or 1KHz  (> 1000pF)
  • Temperature coefficient of ±30ppm
  • Selection of Voltage ratings: 50V, 100V, 200V and 500V
  • Selection of tolerances: ±0.05pF, ±0.1pF, ±0.25pF, ±0.5pF, ±1%, ±2%, ±5%
  • Operating temperature between -55°C and +125°C

The high frequency ceramic chip MLCC capacitor series from SRT Microcéramique offers a wide range of options to suit any demand, including capacitance between 0.47pF to1nF across a range of chip sizes from 0402 to 1210, selection of tolerances (±0.05pF, ±0.1pF, ±0.25pF, ±0.5pF, ±1%, ±2%, ±5%), voltage options (50V, 100V, 200V and 500V) and a range of terminations. As with all SRT-MC components, the SRT-MC high frequency capacitors are popular in safety-critical industries thanks to their excellent quality and reliability. Their operating temperature is between -55°C and +125°C.

Termination options available include:

  • Palladium-Silver
  • Gold-plated Silver
  • Tin-plated Nickel
  • Tin-plated Copper
  • Flexible Tin-plated polymer (Microflex), improving the resistance to brittle fracture if the board is subject to flexion or vibration

While this capacitor series offers a large number of standard options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please Contact us to discuss the custom solutions available.

Typical applications for the SRT-MC High frequency series of ceramic capacitors include:

  • RF and microwave communication (100MHz – 5GHz)
  • Satellite communication
  • Base station applications
  • Wireless devices
  • Radar applications

The below table gives the specifications overview for each capacitor model available within the High Frequency series:

SRT Microcéramique High Frequency Capacitor series
Specifications
Additional Features
  • MLCC Capacitor for RF and Microwave communication
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor under 5.10-4 at 1Vrms and 1MHz for values ≤ 1000pF and under 5.10-4 at 1Vrms and 1KHz for values > 1000pF
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E
Dielectric High Q
Operating Temperature -55°C to +125°C
Package/Size
  • 0402
  • 0504
  • 0603
  • 0805
  • 1206
  • 1210
TCR ±30ppm
Termination
  • Palladium-Silver
  • Nickel with Gold plated finish
  • Nickel with Tin plated finish
  • Microflex (Polymer with Tin plated finish)
  • Copper with Tin plated finish
Tolerance
  • ±0.05pF
  • ±0.1pF
  • ±0.25pF
  • ±0.5pF
  • ±1%
  • ±2%
  • ±5%
Voltage Reference
  • 50V
  • 100V
  • 200V
  • 500V

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document SRT Microceramique High Frequency Capacitor series datasheet
PDF Document SRT Microcéramique's Microflex - Innovative flexible termination option for chip capacitors

Below is an example of the part number breakdown for the SRT Microcéramique High Frequency Capacitor Series :

SRT Microcéramique High Frequency Capacitor Series

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

  • Views: 546
  • Product Code: SRT Microcéramique High Frequency Capacitor Series
  • SKU: SRT Microcéramique High Frequency Capacitor Series
  • Availability: In Stock
0 Product(s) Sold
  • £0.00
  • Ex Tax: £0.00

Available Options

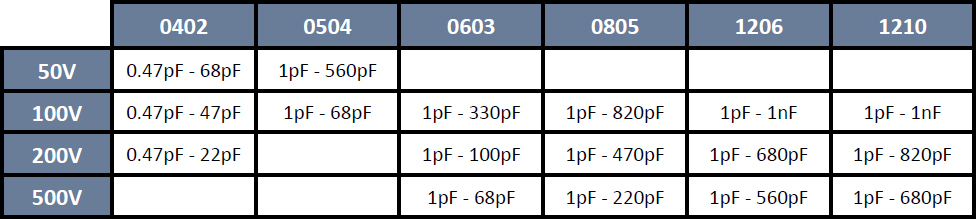

Please refer to the table at the bottom of Description tab and/or the Datasheet available from Technical Library to see available capacitance values for each chip size and voltage combination.
